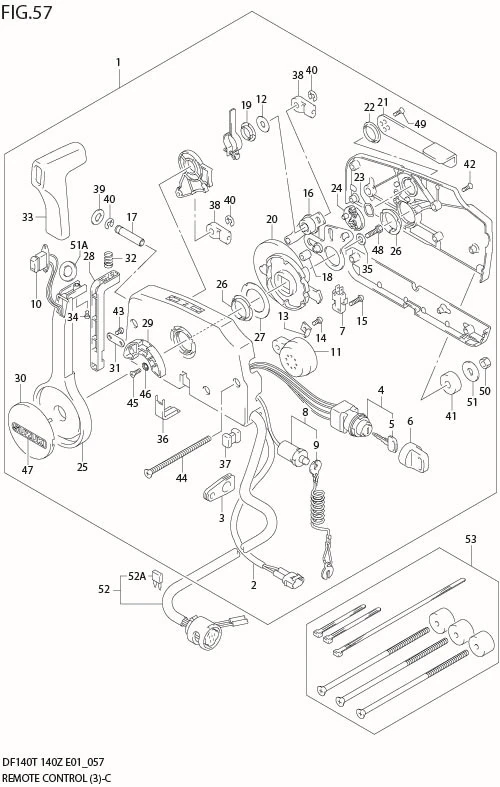

FIG 57 REMOTE CONTROL (MODEL:05%)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	67200-93J62-000 SUB: 67200-93J03-000	REMOTE CONTROL ASSY	1	Rp6.157.500
2	36646-93J00-000	?WIRE ASSY, PTT SW ADAPTER	1	Rp402.500
3	36628-92E00-000	?GROMMET, WIRE HARNESS	1	Rp42.000
4	37110-93J02-000 SUB: 37110-93J00-000	?SWITCH ASSY, IGNITION	1	Rp1.295.500
5-1	DISCONTINUE SUB: 37141-99E00-000	??KEY (931)	1	-
5-2	DISCONTINUE SUB: 37141-99E10-000	??KEY (932)	1	-
5-3	DISCONTINUE SUB: 37141-99E20-000	??KEY (933)	1	-
5-4	DISCONTINUE SUB: 37141-99E30-000	??KEY (934)	1	-
5-5	DISCONTINUE SUB: 37141-99E40-000	??KEY (935)	1	-
5-6	DISCONTINUE SUB: 37141-99E50-000	??KEY (936)	1	-
5-7	DISCONTINUE SUB: 37141-99E60-000	??KEY (937)	1	-
5-8	DISCONTINUE SUB: 37141-99E70-000	??KEY (938)	1	-
5-9	DISCONTINUE SUB: 37141-99E80-000	??KEY (939)	1	-
5-10	DISCONTINUE SUB: 37141-99E90-000	??KEY (940)	1	-
5-11	DISCONTINUE SUB: 37141-99EA0-000	??KEY (941)	1	-
5-12	DISCONTINUE SUB: 37141-99EB0-000	??KEY (942)	1	-
6	37143-99E00-000	??CAP, KEY	1	Rp26.000
7	37721-93J91-000 SUB: 37721-93J90-000	?SWITCH, NEUTRAL	1	Rp398.000
8	37820-93J05-000 SUB: 37820-93J03-000	?SWITCH ASSY, EMERGENCY	1	Rp520.000
9	37823-92E02-000 SUB: 37823-92E01-000	??PLATE	1	Rp221.500
10	37850-90J06-000 SUB: 37850-90J05-000	?SWITCH ASSY, PTT	1	Rp845.500
11	38500-93J90-000	?BUZZER	1	Rp297.000
12	67212-95600-000	?WASHER	1	Rp25.500
13	67213-92E00-000	?BRACKET, BUZZER	1	Rp35.000
14	DISCONTINUE SUB: 09125-05042-000	?SCREW, BUZZER BRKT	1	-
15	67296-92E10-000	?SCREW, NEUTRAL SW	2	Rp17.000
16	67220-95630-000	?PLATE ASSY	1	Rp654.500
17	67223-99E10-000	?KNOB, BRAKE ADJ	1	Rp59.000
18	67229-95600-000	?ROLLER	1	Rp54.500
19	67232-95600-000	?BUSH	1	Rp44.000
20	DISCONTINUE SUB: 67238-87D00-000	?GEAR, DRIVE	1	-
21	67241-99E10-000	?LEVER, FREE THROTTLE	1	Rp177.000
22	67243-95600-000	?BUSH	1	Rp30.500
23	67244-95600-000	?WASHER, WAVE	1	Rp27.500
24	67245-95600-000	?DRUM, FREE THROTTLE	1	Rp194.000
25	67251-99E10-000	?LEVER, HANDLE	1	Rp617.000
26	67252-95600-000	?BUSH	2	Rp37.500
27	67253-95600-000	?WASHER	1	Rp37.500
28	67255-99E00-000	?ARM, LOCK	1	Rp143.000
29	67256-95600-000	?HOLDER, NEUT LOCK	1	Rp80.500
30	67257-99E00-000	?CAP, LEVER	1	Rp77.000
31	67258-99E00-000	?BRACKET, LOCK ARM	1	Rp31.000
32	67259-87D00-000	?SPRING, NEUTRAL ARM	1	Rp45.500
33	67261-99E00-000	?GRIP	1	Rp354.000
34	67296-94310-000	?SCREW	1	Rp14.500
35	67264-95600-000	?WASHER	1	Rp22.000
36	67267-95610-000	?COVER, WIRE	1	Rp44.500
37	67273-95601-000 SUB: 67273-95600-000	?SPACER	1	Rp35.000
38	67275-95600-000	?END, CABLE	2	Rp70.500
39	67288-92E00-000	?WASHER, BRAKE ADJ KNOB	1	Rp24.500
40	67292-94300-000	?E RING	3	Rp11.000
41	67294-95600-000	?SPACER	3	Rp35.000
42	67296-90J00-000	?SCREW	5	Rp17.000
43	67296-94300-000	?SCREW	2	Rp10.500
44	67296-95600-000	?SCREW	3	Rp47.000
45	67296-95610-000	?SCREW	2	Rp23.500
46	67297-95600-000	?WASHER	2	Rp23.500
47	68165-16B01-13L SUB: 68165-16B00-13L	?EMBLEM	1	Rp47.500
48	09100-08232-000	?BOLT	1	Rp29.000
49	DISCONTINUE SUB: 09126-05003-000	?SCREW	2	-
50	09140-06020-000	?NUT	3	Rp13.500
51	09160-06104-000	?WASHER	3	Rp18.000
51A	37859-90J00-000	?SPACER	1	Rp26.500
52-1	36620-93J04-000 SUB: 36620-93J01-000	WIRE ASSY, REMOTE CONTROL	1	Rp2.888.000	L:5000 MODEL:04%
52-2	36620-93J54-000 SUB: 36620-93J51-000	WIRE ASSY, REMOTE CONTROL	1	Rp2.971.000	L:3500 MODEL:06%
52-3	36620-93J64-000 SUB: 36620-93J61-000	WIRE ASSY, REMOTE CONTROL	1	Rp3.090.000	L:6500 MODEL:06%
52A	09481-10501-000 SUB: 09481M10501-000	?FUSE (10A)	1	Rp12.000
53	67140-95601-000 SUB: 67140-95600-000	ATTACHMENT, TWIN REMOCON KIT	1	Rp351.000	OPT
