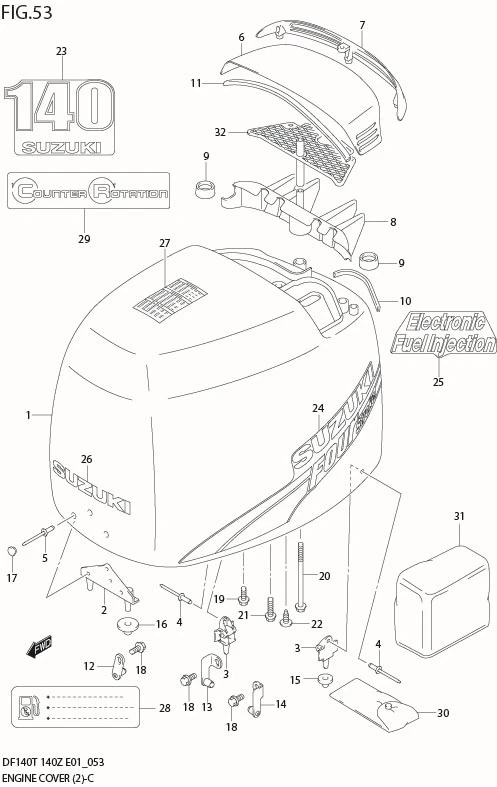

FIG 53 ENGINE COVER (MODEL:03%09)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	61410-92845-0EP SUB: 61410-92844-0EP	COVER SET, ENGINE (BLACK)	1	Rp9.111.500
2	61621-87D02-000	?BRACKET, FASTENER FR	1	Rp271.500
3	61644-90J00-000	?BRACKET, FASTENER RR	2	Rp292.000
4-1	09229-04028-XC0 SUB: 09229-04028-000	?RIVET	4	Rp26.500
4-2	09229-04025-000	?RIVET	4	Rp25.000	MODEL:05%09
5	09229-04046-000	?RIVET	3	Rp26.000
6-1	61431-92J02-0EP SUB: 61431-92J00-0EP	?HANDLE, TILT UP (BLACK)	1	Rp2.552.500
6-2	61431-92J02-0EP SUB: 61431-92J01-0EP	?HANDLE, TILT UP (BLACK)	1	Rp2.552.500	MODEL:08%09
7	61432-92J00-000	?LOUVER, TILT UP HANDLE	1	Rp491.500
8	61433-92J00-000	?COVER, AIR INTAKE INNER	1	Rp454.000
9	61438-92J00-000	?CUSHION, AIR INTAKE INNER	2	Rp65.500
10	61439-90J00-000	?SEAL, TILT UP HANDLE	1	Rp32.500
11	61439-92J00-000	?SEAL, TILT UP HANDLE	1	Rp79.000
12	61610-90J22-000	?FASTENER	1	-
13	61680-90J01-000 SUB: 61680-90J00-000	?FASTENER, REAR STBD	1	Rp138.000
14	61690-90J01-000 SUB: 61690-90J00-000	?FASTENER, REAR PORT	1	Rp138.000
15	61619-98J00-000 SUB: 09329-10022-000	?CUSHION	2	Rp50.000
16	09329-10023-000	?CUSHION	2	Rp21.000
17	09250-12013-000	?CAP	3	Rp10.500
18	01550-06127-000	?BOLT	3	Rp17.000
19	01550-06167-000	?BOLT	4	Rp16.500
20	01550-06957-000	?BOLT	1	Rp24.000
21	09103-06093-000 SUB: 29103-93J10-000	?BOLT (6X20)	3	Rp13.000	?09103-06093
22	03542-06169-000	?SCREW	3	Rp16.000
23	61435-92J11-000	?MARK, EMBLEM REAR	1	Rp170.500
24-2	61453-90J11-000	?STRIPE, ENGINE COVER PORT	1	Rp726.500
24-1	61443-90J11-000	?STRIPE, ENGINE COVER STBD	1	Rp726.500
25	61446-87J01-000	?DECAL, EFI	1	Rp86.000
26	68111-90J01-000	?MARK, EMBLEM (SILVER)	1	Rp159.500	?68111-47C10-Y2D
27	61458-99E31-000	LABEL, ENGINE COVER	1	Rp117.500
28	DISCONTINUE SUB: 69716-99E13-000	LABEL, FUEL LIMITATION	1	-
29	61469-87D00-HY6	MARK, COUNTER ROTATION	1	Rp47.500	DF140Z MODEL:03
30	09800-81840-000	TOOL SET	1	Rp239.000
31	DISCONTINUE SUB: 68110-87D01-000	COVER, WEATHER	1	-	OPT
32	61580-92J00-000	PLATE, AIR INTAKE INNER	1	Rp2.318.000	OPT
