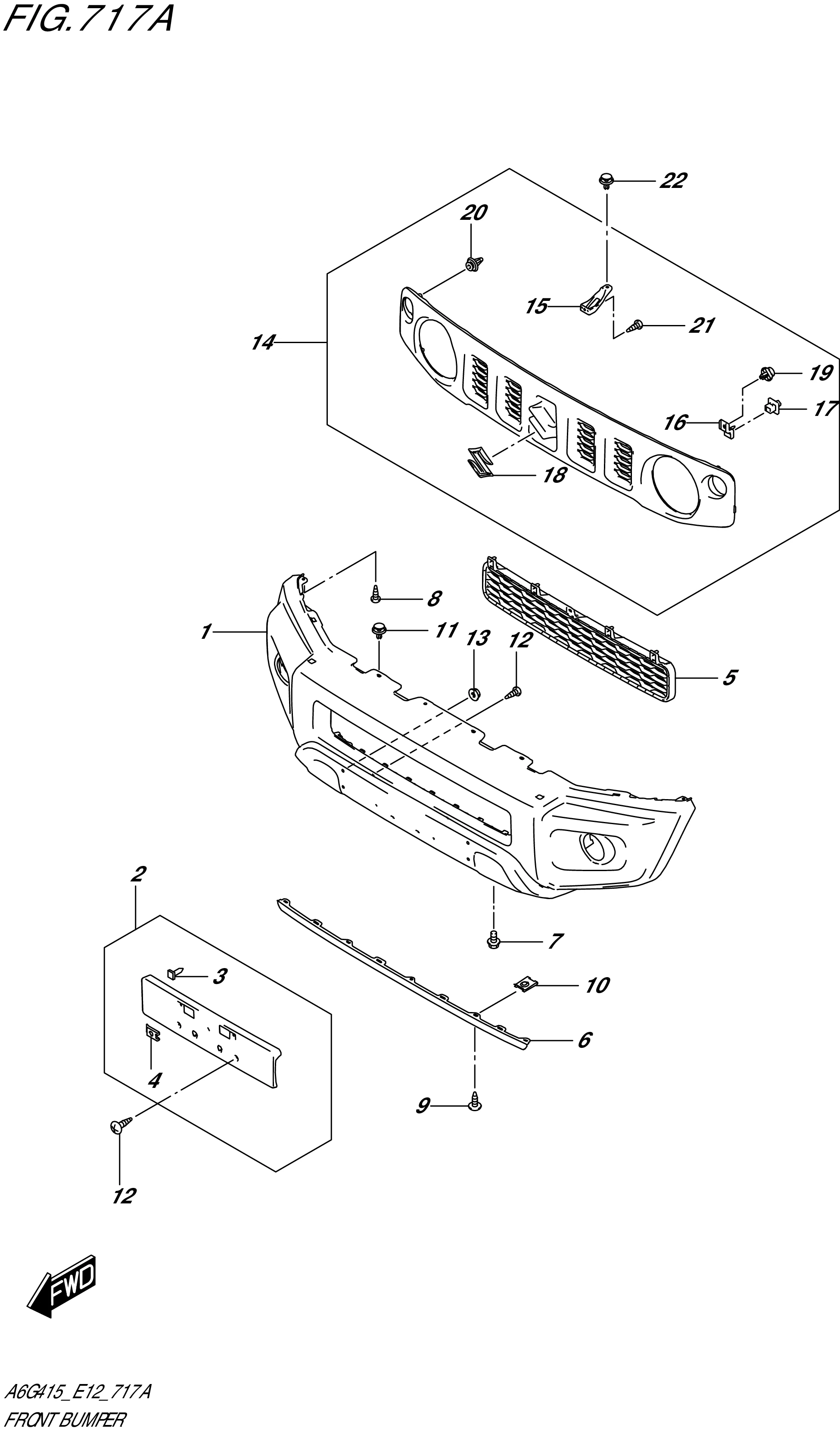

FIG. 717A- FRONT BUMPER

FIG. 717A- FRONT BUMPER
No No. Part Description Qty Price Per Pcs Remarks
1 71711-78R11-5PK
SUB: 71711-78R10-5PK		 BUMPER,FRONT (BLACK) 1 Rp3.682.500
2 71713-78R00-5PK GARNISH,FR BUMPER LICENSE (BLACK) 1 Rp353.500
3 77225-78F10-000
SUB: 77225-78F00-000		 .BOLT,BUMPER EXT 4 Rp27.500
4 09148-06021-000 .NUT (M6) 2 Rp27.500
5 71721-78R00-5PK NET,FRONT BUMPER (BLACK) 1 Rp318.000
6 71741-78R00-000 SKIRT,FR AIR DAM 1 Rp242.000
7 09111-06252-000 BOLT,FRONT BUMPER LOWER 3 Rp24.500
8 09132-06022-000 SCREW (6X20) 2 Rp23.000
9 09136-05071-000 SCREW,ENGINE UNDER COVER LID 3 Rp20.500
10 09148-05075-000 NUT 5 Rp14.000
11 09409-07340-000 CLIP (6.8X11.5) 4 Rp17.500
12 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 4 Rp3.500
13 08316-1005A-000
SUB: 08316M1005A-000		 NUT 4 Rp2.500
14 72110-78R01-C48
SUB: 72110-78R00-C48		 GRILLE,RADIATOR (CHROME,BLACK) 1 Rp2.902.000
15 72112-78R00-000 .BRACKET,RADIATOR GRILLE UPR 2 Rp59.000
16 72113-78R01-000
SUB: 72113-78R00-000		 .BRACKET,RADIATOR GRILLE LWR 2 Rp44.000
17 72115-78R00-000 .CLIP,RDTR GRILLE LWR BRKT LWR 2 Rp15.000
18 77811-54GC0-0PG
SUB: 77811B54GC0N0PG		 .EMBLEM,MARK (CHROME) 1 Rp49.500
19 09409-07340-000 .CLIP (6.8X11.5) 2 Rp17.500
20 09409-10327-000 .CLIP 13 Rp5.000
21 03541-0516A-000
SUB: 03541M0516A-000		 .SCREW 2 Rp3.500
22 09409-07340-000 CLIP (6.8X11.5) 2 Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
