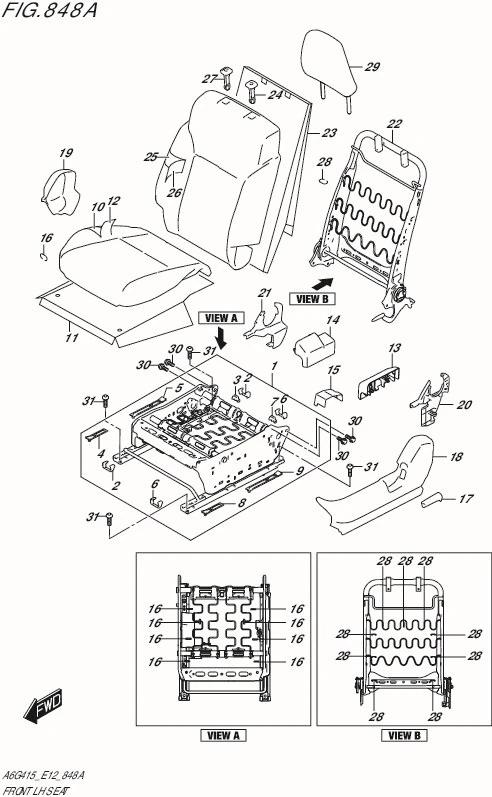

FIG.848A-FRONT LH SEAT

FIG.848A-FRONT LH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85603-78RA0-000
SUB: 85603-77RA0-000		 FRAME ASSY,FR CUSH,L 1 Rp3.585.500
2 86652-77R00-000 .CAP,ADJUSTER LWR 2 Rp60.000
3 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
4 86656-77R00-000 .PROTECTOR,FR ADJ FR 1 Rp63.000
5 86657-77R00-000 .PROTECTOR,FR ADJ RR 1 Rp63.000
6 86652-77R00-000 .CAP,ADJUSTER LWR 2 Rp60.000
7 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
8 86656-77R00-000 .PROTECTOR,FR ADJ FR 1 Rp63.000
9 86657-77R00-000 .PROTECTOR,FR ADJ RR 1 Rp63.000
10 85160-77R00-000 PAD,FR CUSH 1 Rp1.568.500
11 85169-77R00-000 SILENCER,FR CUSH 1 Rp53.000
12 85680-77R00-DBA TRIM,FR CUSH,L (BLACK) 1 Rp2.197.000
13 85723-77RA0-000 COVER,WALKIN OTR,L 1 Rp93.000
14 85743-77RA0-000 COVER,WALKIN INR,L 1 Rp93.000
15 85781-77R00-000 COVER,HARNESS BRKT,L 1 Rp43.000
16 09387-19001-000 RING (OD:22.6) 8 Rp9.000
17 85711-58J00-5PK KNOB,RCLNG,L (BLACK) 1 Rp32.000
18 85721-77RA0-5PK COVER,RCLNG OUT,L (BLACK) 1 Rp256.500
19 85722-77RA0-5PK COVER,RCLNG INS,L (BLACK) 1 Rp146.000
20 85741-77R00-5PK COVER,RCLNG INS,L (BLACK) 1 Rp71.000
21 85742-77R00-5PK COVER,RCLNG INS,R (BLACK) 1 Rp58.000
22 85803-77RA0-000 FRAME ASSY,FR BACK,L 1 Rp2.921.000
23 85369-77R00-000 SILENCER,FR BACK 1 Rp135.500
24 85341-63R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp28.500
25 85360-77R00-000 PAD,FR BACK,R 1 Rp1.717.500
26 85380-77RA0-DBA TRIM,FR BACK (BLACK) 1 Rp2.018.000
27 85840-63R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp33.000
28 09387-19001-000 RING (OD:22.6) 9 Rp9.000
29 86401-62R00-S7S HEADRESTRAINT ASSY,FR (BLACK) 1 Rp1.334.500
30 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 4 Rp5.500
31 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
