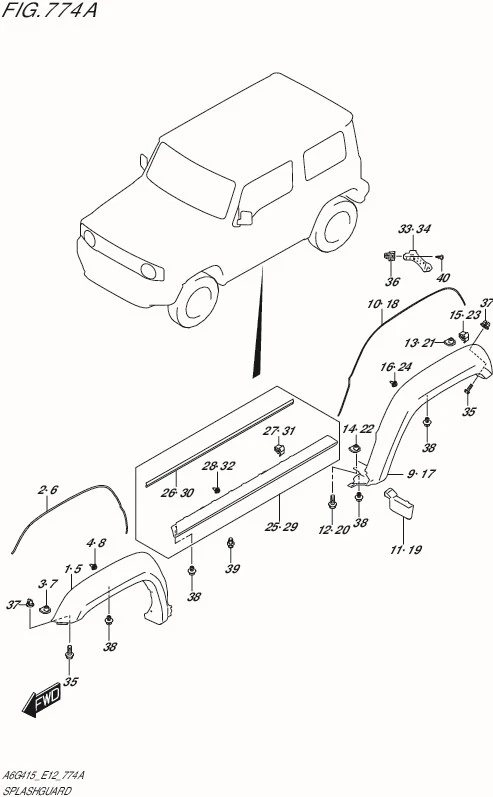

FIG.774A-SPLASH GUARD

No	No. Part	Description	Qty	Price Per Pcs
1	77511-78R00-5PK	GUARD,FR FENDER SPLASH,R (BLACK)	1	Rp1.164.000
2	77512-78R00-000	PROTECTOR,FR FENDER SPLASH	1	Rp187.000
3	09148-06027-000	NUT,FR BUMPER	1	Rp43.500
4	09409-10327-000	CLIP	8	Rp5.000
5	77521-78R00-5PK	GUARD,FR FENDER SPLASH,L (BLACK)	1	Rp1.164.000
6	77512-78R00-000	PROTECTOR,FR FENDER SPLASH	1	Rp187.000
7	09148-06027-000	NUT,FR BUMPER	1	Rp43.500
8	09409-10327-000	CLIP	8	Rp5.000
9	77531-78R00-5PK	GUARD,RR FENDER SPLASH,R (BLACK)	1	Rp1.225.000
10	77532-78R00-000	PROTECTOR,RR FENDER SPLASH	1	Rp187.000
11	77535-78R00-000	STRAKE,REAR,R	1	Rp135.500
12	09132-06022-000	SCREW (6X20)	2	Rp23.000
13	09148-06027-000	NUT,FR BUMPER	1	Rp43.500
14	09148-06027-000	NUT,FR BUMPER	2	Rp43.500
15	09409-08351-000	CLIP	2	Rp21.000
16	09409-10318-000	CLIP	6	Rp17.500
17	77541-78R00-5PK	GUARD,RR FENDER SPLASH,L (BLACK)	1	Rp1.225.000
18	77532-78R00-000	PROTECTOR,RR FENDER SPLASH	1	Rp187.000
19	77545-78R00-000	STRAKE,REAR,L	1	Rp135.500
20	09132-06022-000	SCREW (6X20)	2	Rp23.000
21	09148-06027-000	NUT,FR BUMPER	1	Rp43.500
22	09148-06027-000	NUT,FR BUMPER	2	Rp43.500
23	09409-08351-000	CLIP	2	Rp21.000
24	09409-10318-000	CLIP	6	Rp17.500
25	77550-78R00-5PK	GUARD ASSY,SIDE SILL SPL,R (BLACK)	1	Rp1.026.500
26	77552-78R00-000	.PROTECTOR,SIDE SILL SPLASH	1	Rp130.500
27	09409-08351-000	.CLIP	2	Rp21.000
28	09409-10318-000	.CLIP	6	Rp17.500
29	77560-78R00-5PK	GUARD ASSY,SIDE SILL SPL,L (BLACK)	1	Rp1.026.500
30	77552-78R00-000	.PROTECTOR,SIDE SILL SPLASH	1	Rp130.500
31	09409-08351-000	.CLIP	2	Rp21.000
32	09409-10318-000	.CLIP	6	Rp17.500
33	77581-78R00-000	HOLDER,RR FENDER SPLASH,R	1	Rp53.000
34	77591-78R00-000	HOLDER,RR FENDER SPLASH,L	1	Rp53.000
35	09132-06022-000	SCREW (6X20)	4	Rp23.000
36	09148-05044-000	NUT (M5)	2	Rp18.000
37	71851M70F00-000 SUB: 09148M06007-000	NUT (M6)	4	Rp4.000
38	09409-07340-000	CLIP (6.8X11.5)	26	Rp17.500
39	09409-15304-000	CLIP	10	Rp18.500
40	03511-0512A-000	SCREW	4	Rp14.000
