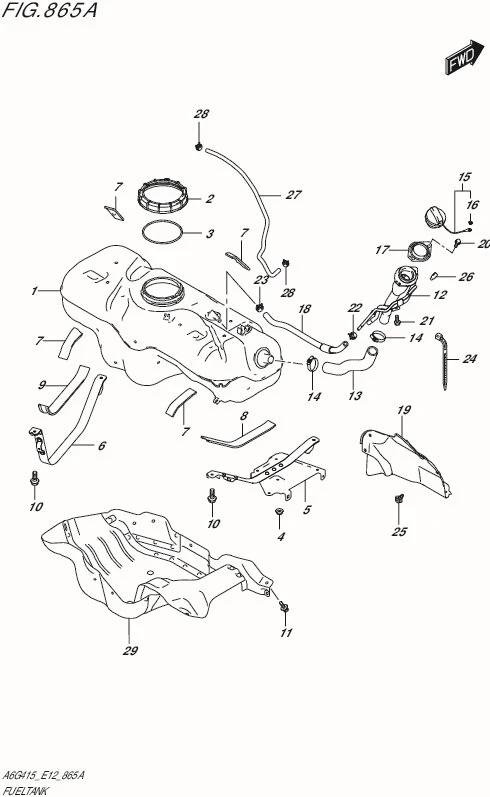

FIG.865A-FUEL TANK

FIG.865A-FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 89101-77R00-000 TANK,FUEL 1 Rp15.057.500
2 89191-71L20-000 NUT,FUEL PUMP LOCK 1 Rp540.500
3 89192-62J00-000 O-RING,FUEL PUMP 1 Rp313.500
4 89315-71L00-000 NUT,HEAT INSULATOR 2 Rp37.000
5 89360-77R00-000 BELT,FUEL TANK FIXER,R 1 Rp357.500
6 89370-77R00-000 BELT,FUEL TANK FIXER,L 1 Rp226.500
7 89385-77R00-000 PAD,FUEL TANK 4 Rp168.500
8 89386-77R00-000 PAD,FUEL TANK BELT,R 1 Rp65.500
9 89387-77R00-000 PAD,FUEL TANK BELT,L 1 Rp71.000
10 09118-08161-000 BOLT (8X25) 4 Rp27.000
11 02162-0612A-000 SCREW (6X12) 4 Rp11.000
12 89201-77R00-000 NECK ASSY,FUEL FILLER 1 Rp1.616.000
13 89241-77R00-000 HOSE,FUEL TANK FILLER 1 Rp197.000
14 89243-81P00-000 CLAMP,FUEL FILLER HOSE 2 Rp57.500
15 89260-77K01-000 CAP ASSY,FUEL FILLER 1 Rp379.500
16 89267-77K00-000 .CLIP,CAP TETHER 1 Rp36.500
17 89285-63R00-000 PACKING,FUEL FILLER 1 Rp36.500
18 89290-77R00-000 HOSE,FUEL TANK BREATHER 1 Rp135.000
19 89321-77R00-000 PROTECTOR,FUEL FILLER NECK 1 Rp364.500
20 09116-05023-000 BOLT (5X20) 2 Rp18.500
21 09116-06508-000 BOLT (6X14) 1 Rp20.500
22 09401M16L01-000
SUB: 09401M16407-000		 CLIP (ID:16.5) 1 Rp9.000
23 11199M68K00-000 CLIP (ID:17.8) 1 Rp11.000
24 09407-19401-000 CLAMP,L:190 (L:190) 1 Rp31.500
25 09409-07340-000 CLIP (6.8X11.5) 4 Rp17.500
26 89481-52R00-000 FILTER,AIR SUCTION 1 Rp6.000
27 09355-54128-00B HOSE (5.6X12.4X2000) 1 Rp275.000
28 09401M11419-000 CLIP (ID:11.1) 2 Rp6.000
29 89310-77R00-000 PROTECTOR,FUEL TANK 1 Rp1.167.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
