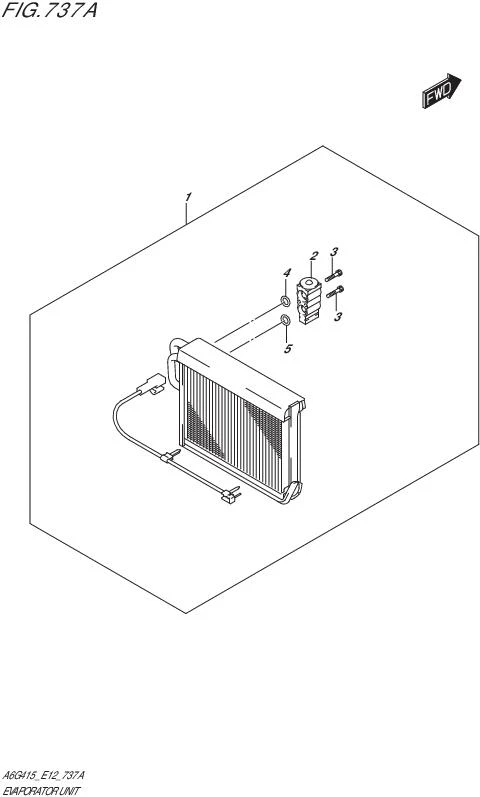

FIG.737A-EVAPORATOR UNIT

FIG.737A-EVAPORATOR UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95411-77R20-000	EVAPORATOR S/ASSY	1	Rp2.406.500
2	95431-74P00-000	.VALVE,EXPANSION	1	Rp359.000
3	74134-58J00-000 SUB: 74134B58J00N000	.BOLT	2	Rp14.000
4	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	1	Rp19.000
5	95895-50G00-000 SUB: 95895B50G00N000	.O-RING (D:2.4,ID:10.8)	1	Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
