New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPERFIG.721A-INSTRUMENT PANEL UPPERFIG.722A-INSTRUMENT PANEL LOWERFIG.730A-VENTILATORFIG.732A-HEATER UNITFIG.735A-HEATER BLOWERFIG.736A-HEATER DOORFIG.737A-EVAPORATOR UNITFIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIMFIG.750A-COVER-CAPFIG.755A-FUEL LID OPENERFIG.760A-ROOF LININGFIG.772A-MOLDINGFIG.774A-SPLASH GUARDFIG.780A-EMBLEMFIG.787A-ROOF SIDE PAD-AIR BAGFIG.790A-WINDSHIELDFIG.800A-FRONT DOOR PANELFIG.805A-BACK DOOR PANELFIG.810A-FRONT DOOR REGULATORFIG.820A-FRONT DOOR LOCKFIG.824A-BACK DOOR LOCKFIG.835A-MIRROR-SUNVISORFIG.841A-FRONT SEAT BELTFIG.843A-2ND SEAT BELTFIG.848A-FRONT LH SEATFIG.849A-FRONT RH SEATFIG.850A-REAR SEATFIG.865A-FUEL TANKFIG.893A-TOOLFIG.960A-CONDENSERFIG.968A-FRONT AC PIPINGFIG.990A-COMPRESSORFIG. 550A- BODY MOUNTINGFIG. 560A- CHASSIS FRAMEFIG. 570A- FRONT HOOD PANELFIG. 572A- TIRE CARRIERFIG. 580A- FRONT FENDER PANELFIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANELFIG. 660A- ROOF PANELFIG. 717A- FRONT BUMPERFIG. 73AA - HEATER CONTROL

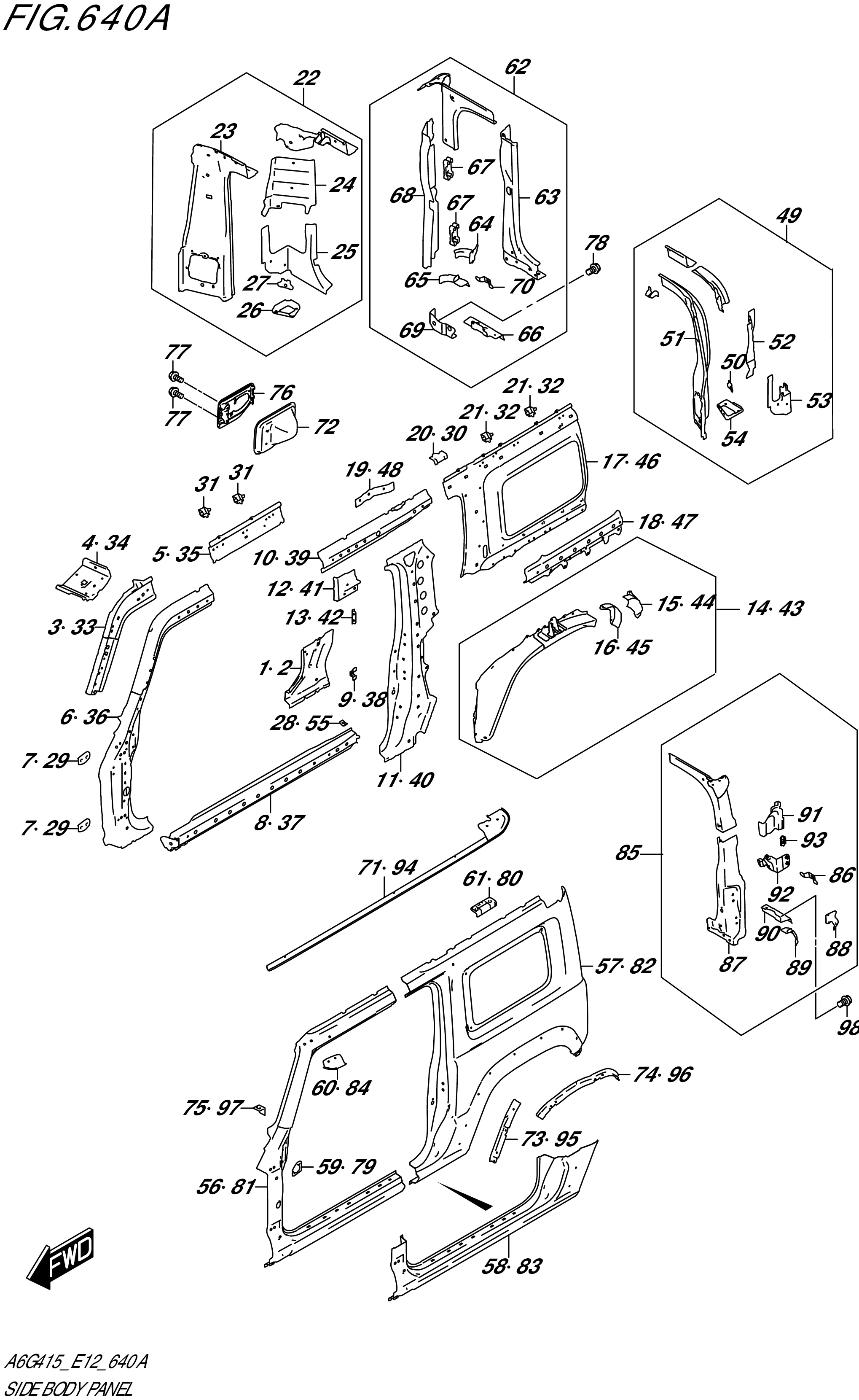

FIG. 640A- SIDE BODY PANEL

FIG. 640A- SIDE BODY PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 61620-78R00-000 PANEL,SIDE SILL INR RR,R 1 Rp1.067.500
2 61670-78R00-000 PANEL,SIDE SILL INR RR,L 1 Rp758.000
3 63111-78R00-000 PANEL,FR PILLAR INNER,R 1 Rp804.000
4 63112-78R00-000 EXTENSION,FR PILLAR INNER,R 1 Rp603.000
5 63131-78R00-000 RAIL,ROOF SIDE INNER,R 1 Rp660.500
6 63140-78R00-000 REINF,FR DR HINGE,R 1 Rp1.316.000
7 63144-74P00-000 RETAINER,FRONT DOOR HINGE 2 Rp182.000
8 63230-78R00-000 STRENGTH,SIDE SILL,R 1 Rp856.500
9 58232-60B00-000 BRACKET,PARKING CABLE 1 Rp8.500
10 63220-78R00-000 REINF,ROOF SIDE,R 1 Rp376.000
11 63241-78R00-000 REINF,CENTER PILLAR,R 1 Rp1.012.000
12 63242-78R00-000 EXTENSION,QTR INNER REINF,R 1 Rp106.500
13 64817-54L00-000 RETAINER,DR SRKR 1 Rp29.000
14 63310-78R00-000 PANEL,RR WHEEL HSG OTR,R 1 Rp1.458.500
15 63317-78R00-000 .PANEL,RR WHL HSG OTR RR NO.1,R 1 Rp176.500
16 63318-78R00-000 .PANEL,RR WHL HSG OTR RR NO.2,R 1 Rp182.000
17 63321-78R00-000 PANEL,RR QUARTER INNER,R 1 Rp4.838.500
18 63322-78R00-000 REINF,QTR INNER,R 1 Rp307.000
19 63323-78R00-000 REINF,SEAT BELT UPPER,R 1 Rp135.500
20 63325-78R00-000 BRACKET,ROOF CTR MBR 1 Rp85.000
21 63326-78R00-000 BRACKET,ASSISTANT GRIP 2 Rp59.000
22 63330-78R00-000 PANEL,BACK PILLAR INNER,R 1 Rp2.520.500
23 63331-78R00-000 .PANEL,BACK PILLAR INR,R 1 Rp1.306.000
24 63335-78R00-000 .REINF,BACK PILLAR INR,R 1 Rp216.000
25 63336-78R00-000 .REINF,BACK PILLAR INR LWR,R 1 Rp247.000
26 63337-78R00-000 .GUSSET,BACK PILLAR INR LWR,R 1 Rp166.500
27 63432-52R00-000 .PATCH,SEAT BELT ELR 1 Rp35.500
28 64114-78R00-000 BRACKET,RR FENDER SPLASH 1 Rp313.000
29 63144-74P00-000 RETAINER,FRONT DOOR HINGE 2 Rp182.000
30 63325-78R00-000 BRACKET,ROOF CTR MBR 1 Rp85.000
31 63326-78R00-000 BRACKET,ASSISTANT GRIP 2 Rp59.000
32 63326-78R00-000 BRACKET,ASSISTANT GRIP 2 Rp59.000
33 63511-78R00-000 PANEL,FR PILLAR INNER,L 1 Rp804.000
34 63512-78R00-000 EXTENSION,FR PILLAR INNER,L 1 Rp603.000
35 63531-78R00-000 RAIL,ROOF SIDE INNER,L 1 Rp660.500
36 63540-78R00-000 REINF,FR DR HINGE,L 1 Rp1.316.000
37 63630-78R00-000 STRENGTH,SIDE SILL,L 1 Rp856.500
38 58232-60B00-000 BRACKET,PARKING CABLE 1 Rp8.500
39 63620-78R00-000 REINF,ROOF SIDE,L 1 Rp376.000
40 63641-78R00-000 REINF,CENTER PILLAR,L 1 Rp1.012.000
41 63642-78R00-000 EXTENSION,QTR INNER REINF,L 1 Rp106.500
42 64817-54L00-000 RETAINER,DR SRKR 1 Rp29.000
43 63710-78R00-000 PANEL,RR WHEEL HSG OTR,L 1 Rp1.458.500
44 63717-78R00-000 .PANEL,RR WHL HSG OTR RR NO.1,L 1 Rp176.500
45 63718-78R00-000 .PANEL,RR WHL HSG OTR RR NO.2,L 1 Rp181.500
46 63721-78R00-000 PANEL,RR QUARTER INNER,L 1 Rp4.838.500
47 63722-78R00-000 REINF,QTR INNER,L 1 Rp307.000
48 63723-78R00-000 REINF,SEAT BELT UPPER,L 1 Rp135.500
49 63730-78R00-000 PANEL,BACK PILLAR INNER,L 1 Rp2.520.500
50 63432-52R00-000 .PATCH,SEAT BELT ELR 1 Rp35.500
51 63731-78R00-000 .PANEL,BACK PILLAR INR,L 1 Rp1.306.000
52 63735-78R00-000 .REINF,BACK PILLAR INR,L 1 Rp211.500
53 63736-78R00-000 .REINF,BACK PILLAR INR LWR,L 1 Rp206.000
54 63737-78R00-000 .GUSSET,BACK PILLAR INR LWR,L 1 Rp166.500
55 64114-78R00-000 BRACKET,RR FENDER SPLASH 1 Rp313.000
56 64111-78R00-P11 PANEL,A-PILLAR,R 1 Rp4.207.000
57 64111-78R00-P31 PANEL,QUARTER,R 1 Rp4.708.500
58 64111-78R00-P41 PANEL,SIDE SILL,R 1 Rp4.111.500
59 64112-78R00-000 BRACKET,FR FENDER 1 Rp190.500
60 64113-78R00-000 EXTENSION,ROOF SIDE DRIP FR,R 1 Rp95.500
61 64115-78R00-000 REINF,RR ROOF SIDE 1 Rp144.500
62 64150-78RV0-000 PANEL,BACK PILLAR OUTER,R 1 Rp3.739.000
63 64151-78R00-000 .PANEL,BACK PILLAR OUTER,R 1 Rp1.157.500
64 64154-78R00-000 .REINF,SIDE BODY OTR LWR NO.1,R 1 Rp192.000
65 64155-78R00-000 .REINF,SIDE BODY OTR LWR NO.2,R 1 Rp216.000
66 64156-78R00-000 .REINF,BACK PILLAR OTR LWR,R 1 Rp196.000
67 64157-78R00-000 .SPACER,BACK DR HINGE 2 Rp336.000
68 64158-78R00-000 .REINF,BACK PILLAR OTR,R 1 Rp909.000
69 64159-78R00-000 .REINF,BACK PLR OTR LWR CNR,R 1 Rp172.000
70 64161-78R00-000 .BRACKET,RR BUMPER SIDE HOLDER 1 Rp85.000
71 64170-78R00-000 DRIP,ROOF SIDE RAIL,R 1 Rp845.000
72 64211-78R00-000 BOX,FUEL INLET 1 Rp278.000
73 64261-78R00-000 HOLDER,RR FENDER SPLASH NO.1,R 1 Rp146.000
74 64262-78R00-000 HOLDER,RR FENDER SPLASH NO.2,R 1 Rp268.500
75 72387-68L00-000 BRACKET,FR PILLAR LOWER SEAL 1 Rp91.500
76 64220-78R00-000 LID,FUEL INLET 1 Rp373.000
77 09111-06086-000 BOLT (6X12) 2 Rp16.000
78 01550-0610B-000
SUB: 01550-0610A-000		 BOLT (6X10) 1 Rp3.000
79 64112-78R00-000 BRACKET,FR FENDER 1 Rp190.500
80 64115-78R00-000 REINF,RR ROOF SIDE 1 Rp144.500
81 64511-78R00-P11 PANEL,A-PILLAR,L 1 Rp4.207.000
82 64511-78R00-P31 PANEL,QUARTER,L 1 Rp4.708.500
83 64511-78R00-P41 PANEL,SIDE SILL,L 1 Rp4.111.500
84 64513-78R00-000 EXTENSION,ROOF SIDE DRIP FR,L 1 Rp107.000
85 64550-78RV0-000 PANEL,BACK PILLAR OUTER,L 1 Rp3.739.000
86 64161-78R00-000 .BRACKET,RR BUMPER SIDE HOLDER 1 Rp85.000
87 64551-78R00-000 .PANEL,BACK PILLAR OUTER,L 1 Rp1.157.500
88 64554-78R00-000 .REINF,SIDE BODY OTR LWR NO.1,L 1 Rp192.000
89 64555-78R00-000 .REINF,SIDE BODY OTR LWR NO.2,L 1 Rp216.000
90 64556-78R00-000 .REINF,BACK PILLAR OTR LWR,L 1 Rp196.000
91 64558-78R00-000 .REINF,BACK DR STRIKER 1 Rp232.000
92 64559-78R00-000 .REINF,BACK DR SHUT STOP 1 Rp216.000
93 64817-77K00-000 .RETAINER,DR STRIKER 1 Rp29.000
94 64570-78R00-000 DRIP,ROOF SIDE RAIL,L 1 Rp845.000
95 64661-78R00-000 HOLDER,RR FENDER SPLASH NO.1,L 1 Rp146.000
96 64662-78R00-000 HOLDER,RR FENDER SPLASH NO.2,L 1 Rp268.500
97 72387-68L00-000 BRACKET,FR PILLAR LOWER SEAL 1 Rp91.500
98 01550-0610B-000
SUB: 01550-0610A-000		 BOLT (6X10) 1 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
