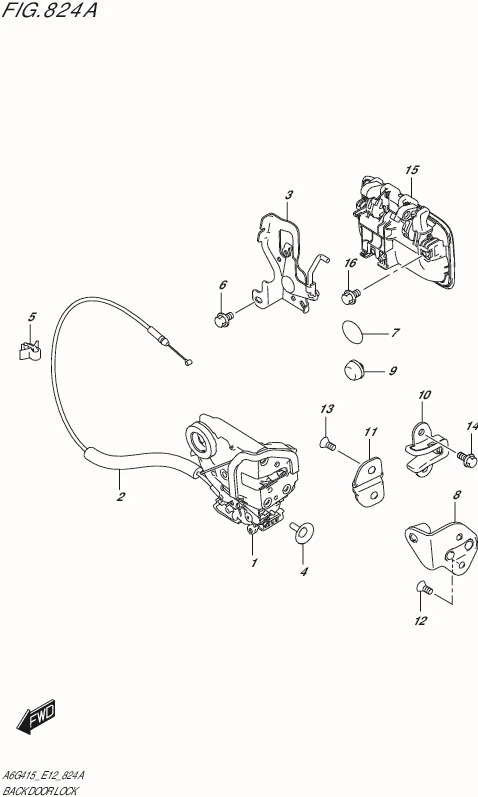

FIG.824A-BACK DOOR LOCK

FIG.824A-BACK DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82510-77R10-000 LATCH COMP,BACK DOOR 1 Rp1.004.500
2 82523-77R00-000 CABLE COMP,BK DR OUTSIDE HDL 1 Rp103.500
3 82520-77R00-000 LINK,BACK DOOR LATCH 1 Rp366.500
4 82581-77R00-000 SCREW,BACK DOOR LATCH 3 Rp26.000
5 09403M04401-000 CLAMP (D:4.8) 1 Rp4.500
6 02162-0612A-000 SCREW (6X12) 1 Rp11.000
7 77191-77R00-000 FILM,BACK DOOR CUSHION 1 Rp33.000
8 82650-77R00-000 STRIKER,BACK DOOR LATCH 1 Rp256.500
9 82720-77R00-000 EXTENSION,BACK DOOR SWITCH 1 Rp23.000
10 82771-77R00-000 FEMALE,BACK DOOR STOP DOOR 1 Rp161.000
11 82772-77R00-000 MALE,BACK DOOR STOP BODY 1 Rp78.500
12 09139-08026-000 SCREW (8X20) 2 Rp24.500
13 09139-08026-000 SCREW (8X20) 2 Rp24.500
14 01551-0816C-000 BOLT 2 Rp13.500
15-1 82850-77R10-26U HANDLE ASSY,BACK DOOR (WHITE) 1 Rp660.500
15-2 82850-77R10-Z2S HANDLE ASSY,BACK DOOR (SILVER) 1 Rp660.500
15-3 82850-77R10-ZJ3 HANDLE ASSY,BACK DOOR (BLACK) 1 Rp655.500
15-4 82850-77R10-ZVL HANDLE ASSY,BACK DOOR (GRAY) 1 Rp660.500
15-5 82850-77R10-ZZC HANDLE ASSY,BACK DOOR (GREEN) 1 Rp660.500
15-6 82850-77R10-ZZB HANDLE ASSY,BACK DOOR (YELLOW) 1 Rp660.500
15-7 82850-77R10-ZWY HANDLE ASSY,BACK DOOR (BLUE) 1 Rp660.500
15-8 82850-77R10-ZVG HANDLE ASSY,BACK DOOR (IVORY) 1 Rp660.500
16 02162-0612A-000 SCREW (6X12) 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
