New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

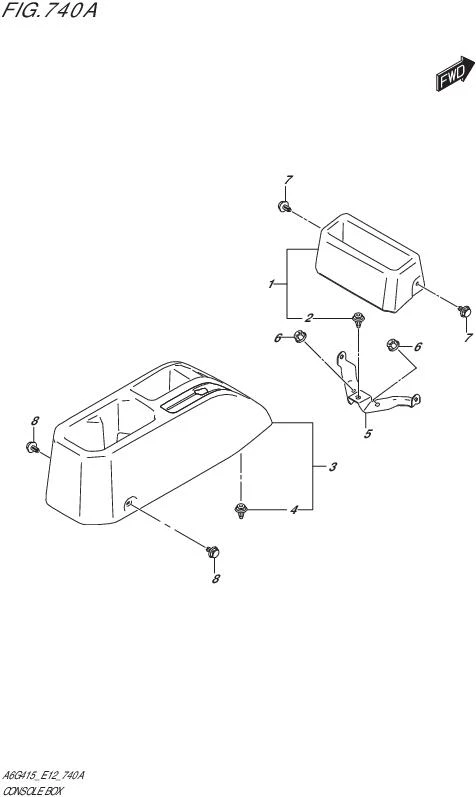

FIG.740A-CONSOLE BOX (5MT)

FIG.740A-CONSOLE BOX (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75810-77R00-5PK	BOX,FLOOR CONSOLE FRONT (BLACK)	1	Rp292.000
2	09409-10327-000	.CLIP	1	Rp5.000
3	75850-77R00-5PK	BOX,FLOOR CONSOLE REAR (BLACK)	1	Rp372.500
4	09409-10327-000	.CLIP	1	Rp5.000
5	75871-77R00-000	BRACKET,FLOOR CONSOLE BOX FR	1	Rp114.000
6	09159-06076-000	NUT (M6)	2	Rp19.500
7	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
8	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
