New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

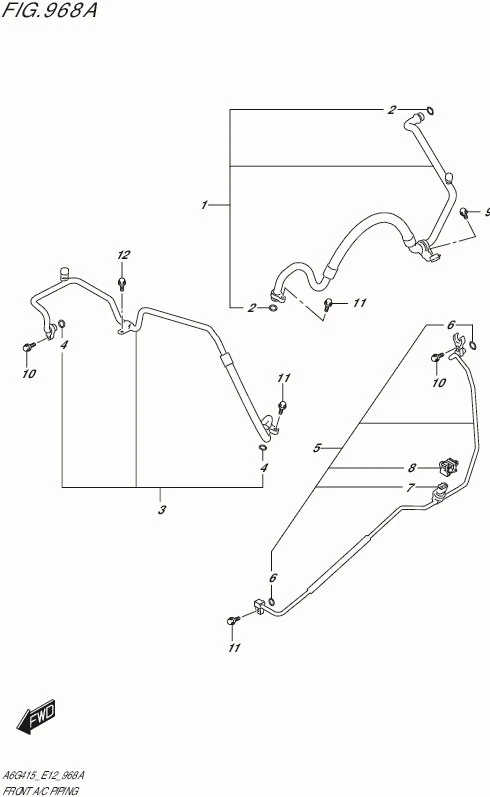

FIG.968A-FRONT AC PIPING

FIG.968A-FRONT AC PIPING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95710-77R10-000	HOSE,SUCTION	1	Rp886.000
2	95896-50G00-000 SUB: 95896B50G00N000	.O-RING (D:2.4,ID:13.4)	2	Rp19.000
3	95720-77R10-000	HOSE,DISCHARGE	1	Rp886.000
4	95895-50G00-000 SUB: 95895B50G00N000	.O-RING (D:2.4,ID:10.8)	2	Rp12.500
5	95731-77R00-000	PIPE,LIQUID	1	Rp979.500
6	95891-50G00-000 SUB: 95891B50G00N000	.O-RING (D:1.8,ID:6.7)	2	Rp12.500
7	95546-58J20-000	.SENSOR,REFRIGERANT PRESS	1	Rp655.000
8	09403-08413-000	.CLAMP	1	Rp45.000
9	09116-06521-000	BOLT,WITH WASHER	1	Rp23.000
10	01550-0620A-000	BOLT (6X20)	3	Rp3.500
11	01550-0620C-000	BOLT (6X20)	2	Rp5.500
12	DISCONTINUE SUB: 02162-0612C-000	SCREW (6X20)	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
