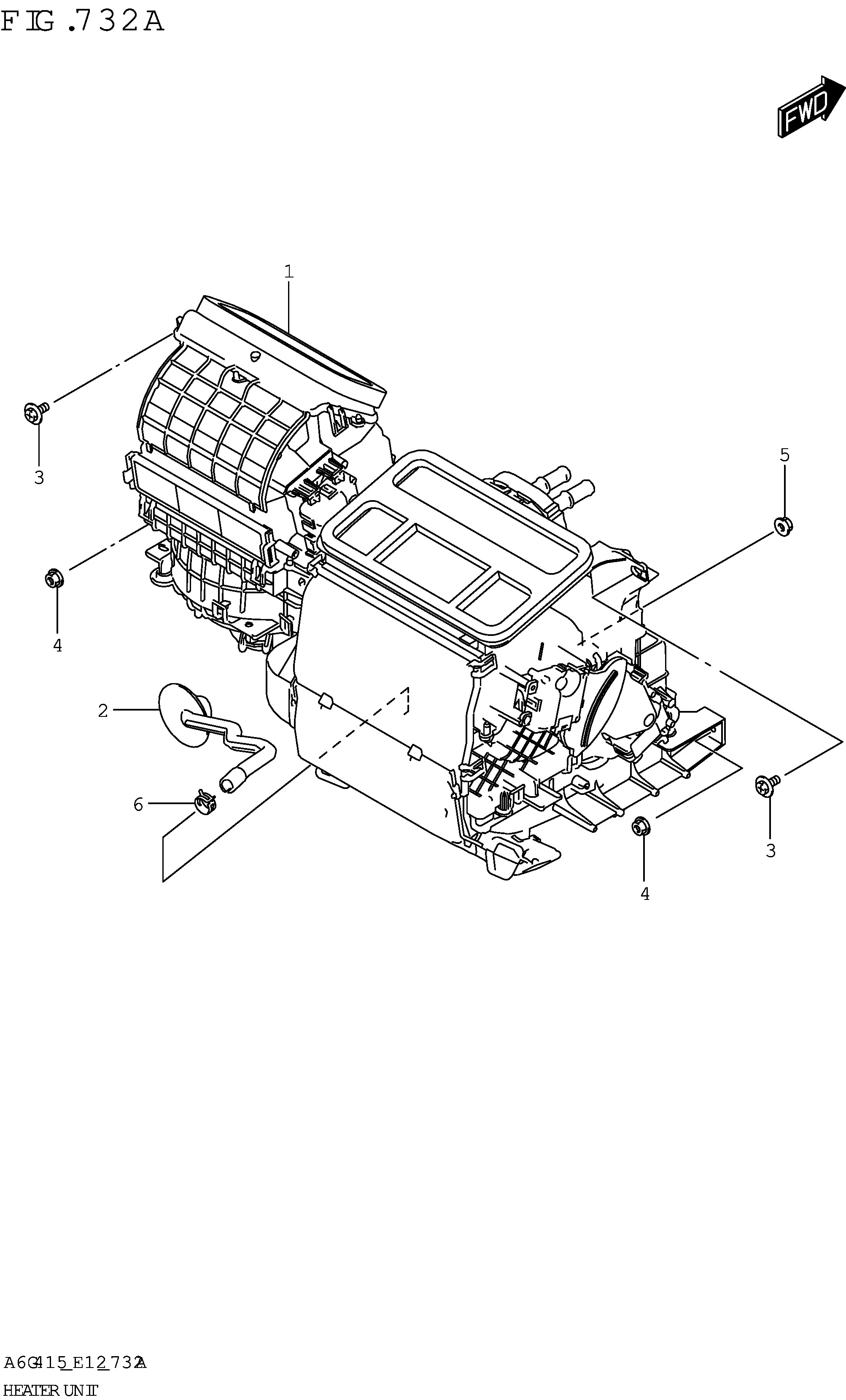

FIG.732A-HEATER UNIT

FIG.732A-HEATER UNIT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74100-77R61-000	HVAC UNIT	1	Rp8.169.500
2	95481-77R00-000	HOSE,DRAIN	1	Rp125.000
3	09113-06006-000	BOLT (6X20)	2	Rp25.000
4	09159-06081-000	NUT (M6)	2	Rp14.500
5	09159-06086-000	NUT (M6)	1	Rp26.500
6	09401-15420-000	CLIP	1	Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
