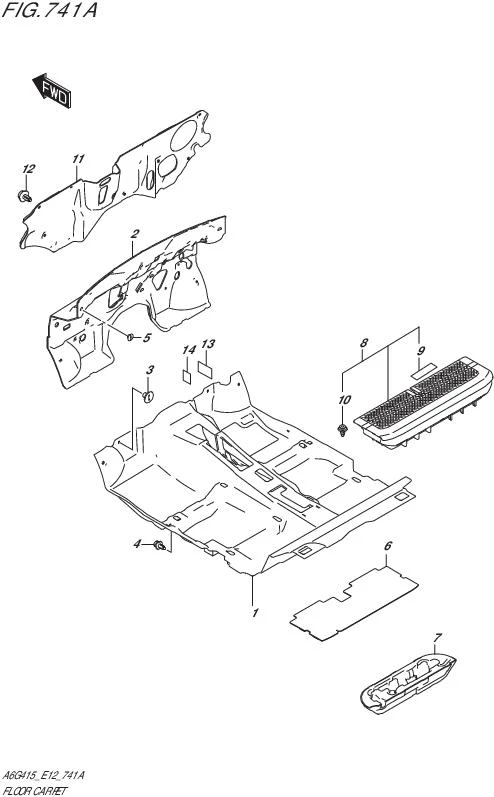

FIG.741A-FLOOR CARPET (5MT)

FIG.741A-FLOOR CARPET (5MT)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	75110-77R00-R3F	CARPET,FLOOR (BLACK)	1	Rp5.691.000
2	75221-77R00-000	SILENCER,DASH PANEL INNER	1	Rp909.000
3	09148-05042-000	CLIP (M5)	2	Rp17.500
4	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
5	09148-05037-000	CLIP (M5)	5	Rp18.000
6	75440-77R00-R3F	BOARD,LUGGAGE FLOOR (BLACK)	1	Rp401.500
7	75471-77R00-000	BOX,TOOL	1	Rp564.000
8	75401-77R01-000 SUB: 75401-77R00-000	BOARD ASSY,LUGGAGE FLOOR UPPER	1	Rp2.120.000
9	75453-77R00-000	.FELT	3	Rp232.000
10	09409-10327-000	.CLIP	4	Rp5.000
11	72450-78R00-000	SILENCER,DASH OUTER	1	Rp484.000
12	09148-05037-000	CLIP (M5)	3	Rp18.000
13	83971-54F00-000	SHEET (185X75X1.8)	4	Rp58.000
14	83971-54G00-000	SHEET,ROOF SILENCER	1	Rp50.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
