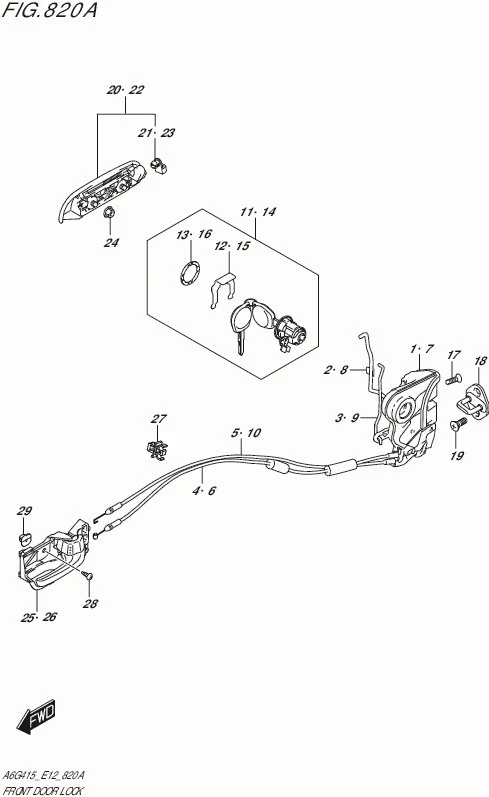

FIG.820A-FRONT DOOR LOCK

No	No. Part	Description	Qty	Price Per Pcs
1	82210-72M06-000 SUB: 82210-72M02-000	LATCH,FR DR,R	1	Rp681.500
2	82220-77R00-000	ROD,FR DOOR OUT HANDLE,R	1	Rp126.500
3	82222-77R00-000	ROD,KEY CYLINDER CONTROL,R	1	Rp53.000
4	82223-77R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp121.000
5	82224-77R00-000	CABLE,FR DR INSIDE LOCK,R	1	Rp65.500
6	82223-77R00-000	CABLE,FR DR INSIDE HANDLE	1	Rp121.000
7	82250-77R20-000	LATCH,FRONT DOOR,L	1	Rp433.500
8	82260-77R00-000	ROD,FR DOOR OUT HANDLE,L	1	Rp126.500
9	82262-77R00-000	ROD,KEY CYLINDER CONTROL,L	1	Rp53.000
10	82264-77R00-000	CABLE,FR DR INSIDE LOCK,L	1	Rp65.500
11	82270-77830-000	CYLINDER SET,FR DR LATCH,R	1	Rp737.000
12	82291-77R00-000	.RETAINER,FR DOOR CYLINDER	1	Rp28.500
13	82292-63R00-000	.SHEET,DR LATCH CYLINDER	1	Rp28.500
14	82280-77830-000	CYLINDER SET,FR DR LATCH,L	1	Rp737.000
15	82291-77R00-000	.RETAINER,FR DOOR CYLINDER	1	Rp28.500
16	82292-63R00-000	.SHEET,DR LATCH CYLINDER	1	Rp28.500
17	09137-06032-000	SCREW (6X18)	6	Rp16.500
18	82610-50M00-000	STRIKER,DR LATCH	2	Rp127.000
19	09139-08025-000	SCREW (8X20)	4	Rp23.000
20-8	82801-81A53-ZVG SUB: 82801-81A52-ZVG	HANDLE,SIDE DR OUT,R (IVORY)	1	Rp316.000
20-7	82801-81A52-ZWY	HANDLE ASSY,FRONT DOOR OUT,R (BLUE)	1	Rp352.500
20-3	82801-81A52-ZJ3	HANDLE,SIDE DR OUT,R (BLACK)	1	Rp600.500
20-6	82801-81A52-ZZB	HANDLE ASSY,FRONT DOOR OUT,R (YELLOW)	1	Rp352.500
20-4	82801-81A53-ZVL SUB: 82801-81A52-ZVL	HANDLE ASSY,FRONT DOOR OUT,R (GRAY)	1	Rp316.000
20-2	82801-81A52-Z2S	HANDLE,SIDE DR OUT,R (SILVER)	1	Rp600.500
20-1	82801-81A52-26U	HANDLE,SIDE DR OUT,R (WHITE)	1	Rp600.500
20-5	82801-81A52-ZZC	HANDLE ASSY,FRONT DOOR OUT,R (GREEN)	1	Rp316.000
21	82817-50F00-000	.SNAP,JOINT	1	Rp42.500
22-6	82802-81A52-ZZB	HANDLE ASSY,FRONT DOOR OUT,L (YELLOW)	1	Rp352.500
22-8	82802-81A53-ZVG SUB: 82802-81A52-ZVG	HANDLE,SIDE DR OUT,L (IVORY)	1	Rp316.000
22-7	82802-81A52-ZWY	HANDLE ASSY,FRONT DOOR OUT,L (BLUE)	1	Rp352.500
22-5	82802-81A52-ZZC	HANDLE ASSY,FRONT DOOR OUT,L (GREEN)	1	Rp316.000
22-4	82802-81A53-ZVL SUB: 82802-81A52-ZVL	HANDLE ASSY,FRONT DOOR OUT,L (GRAY)	1	Rp316.000
22-3	82802-81A52-ZJ3	HANDLE,SIDE DR OUT,L (BLACK)	1	Rp600.500
22-2	82802-81A52-Z2S	HANDLE,SIDE DR OUT,L (SILVER)	1	Rp600.500
22-1	82802-81A52-26U	HANDLE,SIDE DR OUT,L (WHITE)	1	Rp600.500
23	82827-50F00-000	.SNAP,JOINT	1	Rp42.500
24	08316-1006A-000	NUT (6X12)	4	Rp2.000
25	83110-63JC0-C48	HANDLE,DR INSIDE,R (CHROME,BLACK)	1	Rp318.000
26	83130-63JC0-C48	HANDLE,DR INSIDE,L (CHROME,BLACK)	1	Rp318.000
27	DISCONTINUE SUB: 83271-71L00-000	CLIP,DOOR INSIDE HANDLE CABLE	4	-
28	09132-05058-000	SCREW (5X12)	2	Rp14.000
29	09148-05031-000	NUT (M5)	2	Rp18.000
