New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

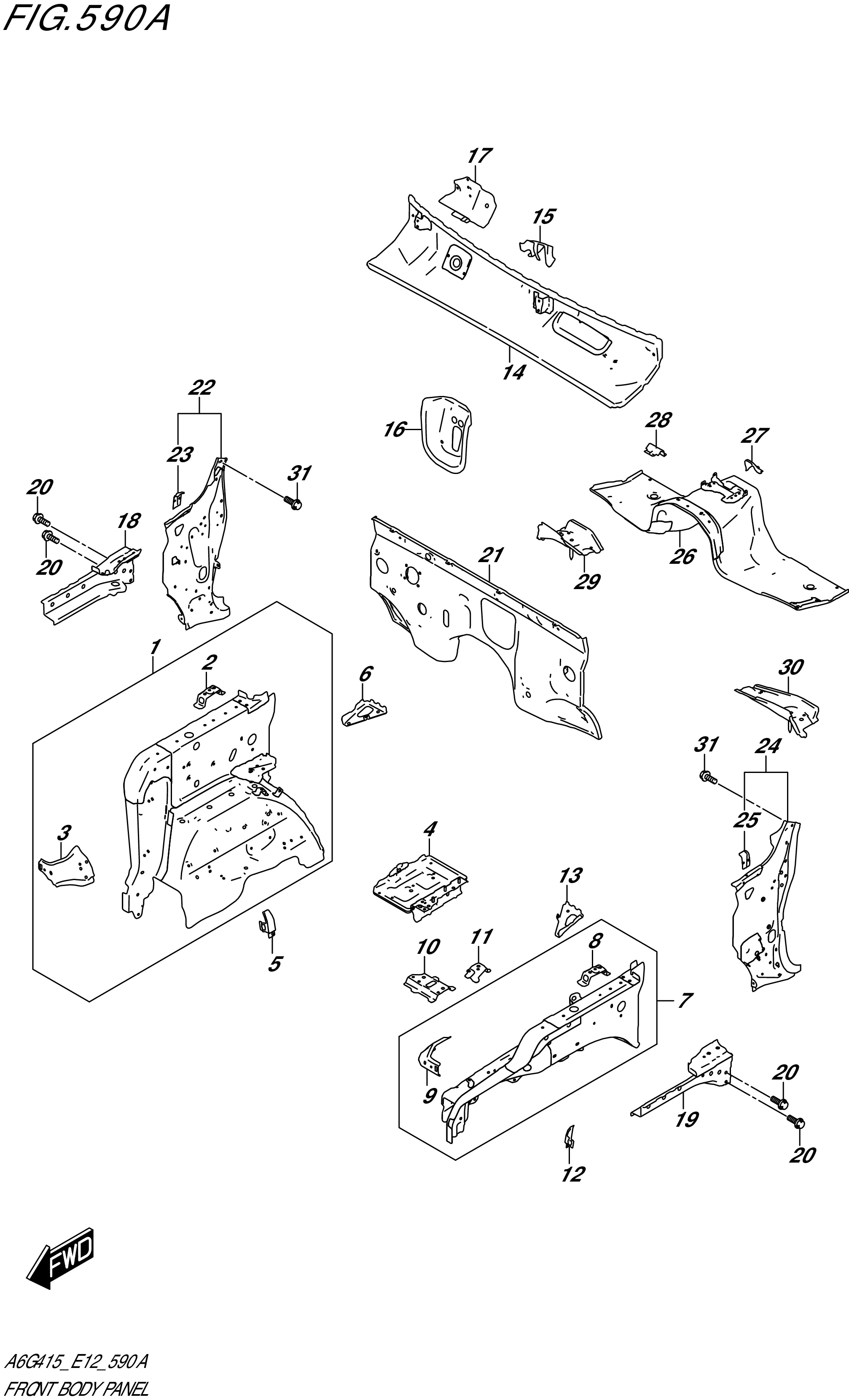

FIG. 590A- FRONT BODY PANEL (5MT)

No	No. Part	Description	Qty	Price Per Pcs
1	58710-78R00-000	PANEL,FR WHEEL HOUSING,R	1	Rp3.666.500
2	58716-78R00-000	.BRACKET,FR FENDER RR	1	Rp139.500
3	58731-78R00-000	.BRACKET,HEAD LAMP,R	1	Rp181.000
4	58720-78R00-000	BRACKET,BATTERY	1	Rp987.500
5	58732-78R00-000	BRACKET,FR BRAKE FLEX HOSE,R	1	Rp330.000
6	58741-78R00-000	BRACE,FENDER APRON RR UPR,R	1	Rp155.500
7	58910-78R00-000	PANEL,FR WHEEL HOUSING,L	1	Rp3.777.000
8	58716-78R00-000	.BRACKET,FR FENDER RR	1	Rp139.500
9	58931-78R00-000	.BRACKET,HEAD LAMP,L	1	Rp181.000
10	58922-78R00-000	BRACKET,HU FR	1	Rp151.000
11	58923-78R00-000	BRACKET,HU RR	1	Rp130.000
12	58932-78R00-000	BRACKET,FR BRAKE FLEX HOSE,L	1	Rp330.000
13	58941-78R00-000	BRACE,FENDER APRON RR UPR,L	1	Rp155.500
14	59310-78R00-000	PANEL,COWL UPPER	1	Rp1.558.500
15	59324-78R00-000	BRACKET,WIPER MOTOR	1	Rp316.000
16	59326-78R00-000	EXTENSION,HVAC BRACKET	1	Rp324.500
17	59330-78R00-000	EXTENSION,PEDAL BRACKET	1	Rp315.000
18	59410-78R00-000	MEMBER,COWL SIDE OUTER,R	1	Rp2.552.500
19	59460-78R00-000	MEMBER,COWL SIDE OUTER,L	1	Rp2.552.500
20	01551-0820A-000	BOLT	4	Rp17.500
21	61100-78R00-000	PANEL,DASH	1	Rp4.432.500
22	61200-78R00-000	PANEL,DASH SIDE,R	1	Rp3.691.000
23	61222-78R00-000	.ABSORBER,COWL SIDE	1	Rp78.500
24	61300-78R00-000	PANEL,DASH SIDE,L	1	Rp3.691.000
25	61222-78R00-000	.ABSORBER,COWL SIDE	1	Rp78.500
26	61410-78R00-000	PANEL,TUNNEL FR	1	Rp2.272.000
27	61416-78R00-000	BRACKET,I/P BRACE	1	Rp224.500
28	61417-78R00-000	BRACKET,HEEL STOPPER	1	Rp209.500
29	61420-78R00-000	MEMBER,2ND MOUNTING,R	1	Rp668.500
30	61430-78R00-000	MEMBER,2ND MOUNTING,L	1	Rp668.500
31	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	2	Rp3.000
