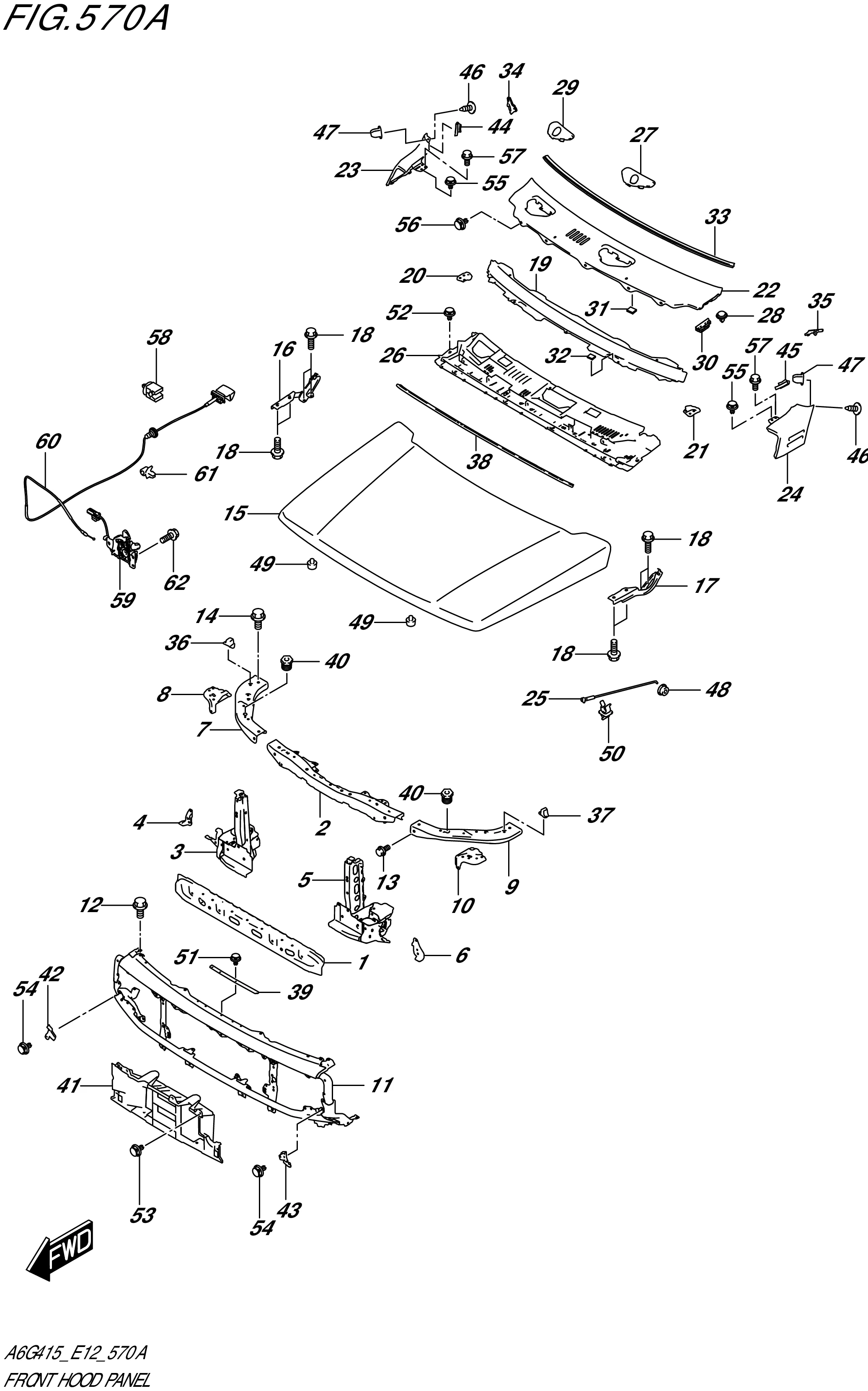

FIG. 570A- FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	58110-78R00-000	MEMBER,1ST MOUNT	1	Rp764.500
2	58120-78R00-000	MEMBER,HOOD LOCK	1	Rp804.000
3	58130-78R00-000	PANEL,1ST MOUNT,R	1	Rp904.000
4	58146-78R00-000	BRACKET,FR OUTER PANEL LWR,R	1	Rp60.000
5	58150-78R00-000	PANEL,1ST MOUNT,L	1	Rp904.000
6	58166-78R00-000	BRACKET,FR OUTER PANEL LWR,L	1	Rp60.000
7	58171-78R00-000	MEMBER,LAMP SUPPORT,R	1	Rp268.000
8	58172-78R00-000	BRACKET,FR OUTER PANEL UPR,R	1	Rp115.500
9	58181-78R00-000	MEMBER,LAMP SUPPORT,L	1	Rp268.000
10	58182-78R00-000	BRACKET,FR OUTER PANEL UPR,L	1	Rp115.500
11	58200-78R00-000	PANEL,FR OUTER	1	Rp4.637.000
12	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	14	Rp3.000
13	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	6	Rp3.000
14	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	2	Rp3.000
15	58300-78R00-000	PANEL,FR HOOD	1	Rp5.848.000
16	58410-78R00-000	HINGE,FR HOOD,R	1	Rp454.000
17	58420-78R00-000	HINGE,FR HOOD,L	1	Rp454.000
18	01551-0820A-000	BOLT	8	Rp17.500
19	59321-78R00-000	PANEL,COWL TOP	1	Rp761.000
20	59322-78R00-000	BRACKET,COWL SIDE,R	1	Rp166.000
21	59323-78R00-000	BRACKET,COWL SIDE,L	1	Rp166.000
22	59910-78R00-000	PANEL,COWL TOP OUTER	1	Rp2.773.000
23	59921-78R00-000	PANEL,COWL TOP SIDE,R	1	Rp1.205.500
24	59922-78R00-000	PANEL,COWL TOP SIDE,L	1	Rp1.205.500
25	72310-78R00-000	STAY,FRONT HOOD	1	Rp86.000
26	72330-78R00-000	COVER,COWL TOP	1	Rp1.104.500
27	72332-78R00-5PK	CAP,COWL TOP OUTER SIDE (BLACK)	1	Rp186.500
28	72332-85K00-000	CLIP,COWL TOP OUTER RR	2	Rp18.000
29	72333-78R00-5PK	CAP,COWL TOP OUTER CTR (BLACK)	1	Rp206.000
30	72333-85K00-000	CLIP,COWL TOP OUTER SIDE	2	Rp20.500
31	72334-85K01-000	FASTENER,COWL TOP OTR	2	Rp41.500
32	72335-85K00-000	COVER	2	Rp45.500
33	72342-78R00-000	SEAL,COWL TOP OUTER REAR	1	Rp427.500
34	72346-78R00-000	SEAL,FR PILLAR LOWER,R	1	Rp60.000
35	72347-78R00-000	SEAL,FR PILLAR LOWER,L	1	Rp60.000
36	72353-78R00-000	CUSHION,FR FENDER,R	1	Rp71.000
37	72354-78R00-000	CUSHION,FR FENDER,L	1	Rp71.000
38	72360-78R00-000	SEAL,HOOD REAR	1	Rp183.000
39	72371-78R00-000	COVER,FRONT PANEL UPR	1	Rp514.000
40	72372-63J00-000 SUB: 72372B63J00N000	CUSHION,BACK DOOR SIDE	2	Rp8.000
41	72381-78R00-000	SHROUD,RADIATOR UPR	1	Rp514.000
42	72391-78R00-000	PROTECTOR,FRONT PANEL LWR,R	1	Rp73.500
43	72392-78R00-000	PROTECTOR,FRONT PANEL LWR,L	1	Rp73.500
44	72393-78R00-000	PROTECTOR,COWL TOP SIDE,R	1	Rp91.000
45	72394-78R00-000	PROTECTOR,COWL TOP SIDE,L	1	Rp91.000
46	09136-05072-000	SCREW,COWL SIDE	2	Rp22.500
47	09148-05044-000	NUT (M5)	2	Rp18.000
48	09308-06016-000	GROMMET,FR HOOD STAY	1	Rp18.500
49	09321-10041-000	CUSHION	2	Rp21.000
50	09403-06326-000	CLAMP	1	Rp20.500
51	09409-05303-000	CLIP	5	Rp17.000
52	09409-07340-000	CLIP (6.8X11.5)	7	Rp17.500
53	09409-07340-000	CLIP (6.8X11.5)	7	Rp17.500
54	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
55	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
56	09409-08327-000	CLIP (7.8X20)	5	Rp15.000
57	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	2	Rp3.000
58	51761-67H10-000	CLAMP,BK PIPE FRAME	1	Rp29.000
59	82110-78R10-000	LATCH,HOOD	1	Rp909.000
60	82160-78R00-000	CABLE,HOOD LATCH RELEASE	1	Rp227.000
61	09403M04401-000	CLAMP (D:4.8)	3	Rp4.500
62	02162-0616A-000	SCREW (6X16)	3	Rp3.000
