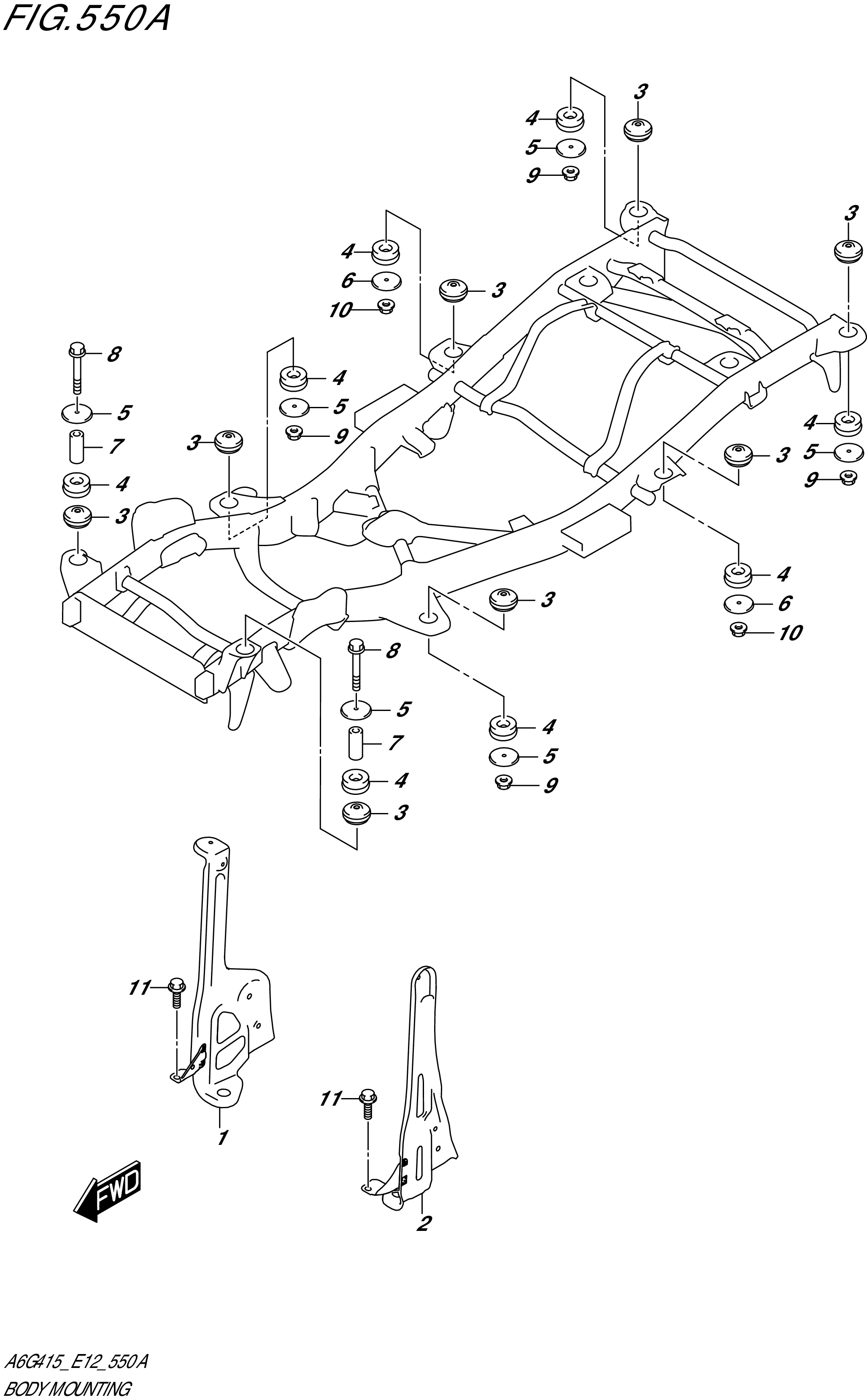

FIG. 550A- BODY MOUNTING

FIG. 550A- BODY MOUNTING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	71420-78R00-000	STAY,RADIATOR,R	1	Rp309.000
2	71430-78R00-000	STAY,RADIATOR,L	1	Rp323.000
3	71511-78R00-000	CUSHION,BODY MTG NO.1	8	Rp127.000
4	71512-78R00-000	CUSHION,BODY MTG NO.2	8	Rp127.000
5	71513-78R01-000 SUB: 71513-78R00-000	BOTTOM,BODY MOUNTING	6	Rp39.000
6	71514-78R00-000	BOTTOM,3RD BODY MOUNTING	2	Rp39.000
7	71515-65D01-000	COLLAR,BODY 1ST MOUNTING	2	Rp50.000
8	71631-57M00-000	BOLT,1ST MOUNTING	2	Rp48.500
9	09159-10060-000	NUT (M10)	4	Rp14.000
10	09159-12075-000	NUT	2	Rp36.000
11	01551-0816C-000	BOLT	4	Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
