New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

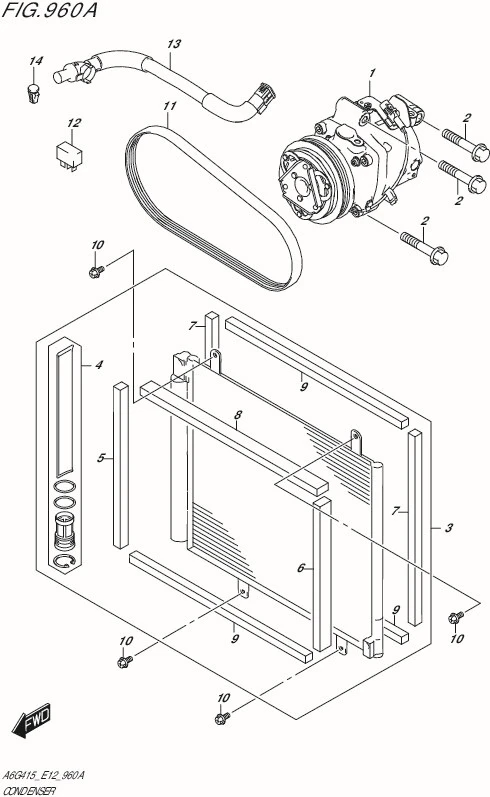

FIG.960A-CONDENSER

FIG.960A-CONDENSER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	95200-77R11-000 SUB: 95200-77R10-000	COMPRESSOR ASSY	1	Rp8.619.500
2	01550-0855A-000	BOLT	3	Rp3.500
3	95310-77R00-000	CONDENSER ASSY	1	Rp2.792.000
4	95339-74P00-000	.DRYER KIT	1	Rp677.000
5	95811-77R00-000	.PACKING	1	Rp69.000
6	95812-77R00-000	.PACKING	1	Rp69.000
7	95813-77R00-000	.PACKING	2	Rp73.000
8	95814-77R00-000	.PACKING	1	Rp73.000
9	95815-77R00-000	.PACKING	3	Rp79.500
10	02162-0612A-000	SCREW (6X12)	4	Rp11.000
11	95141-77R10-000	V-BELT	1	Rp135.000
12	38860-76F01-000 SUB: 38860B76F01N000	RELAY ASSY	1	Rp47.000
13	95640-77R00-000	SENSOR ASSY,ROOM TEMP	1	Rp436.500
14 #	95642-64G20-000	SENSOR,SUN LIGHT	1	Rp578.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
