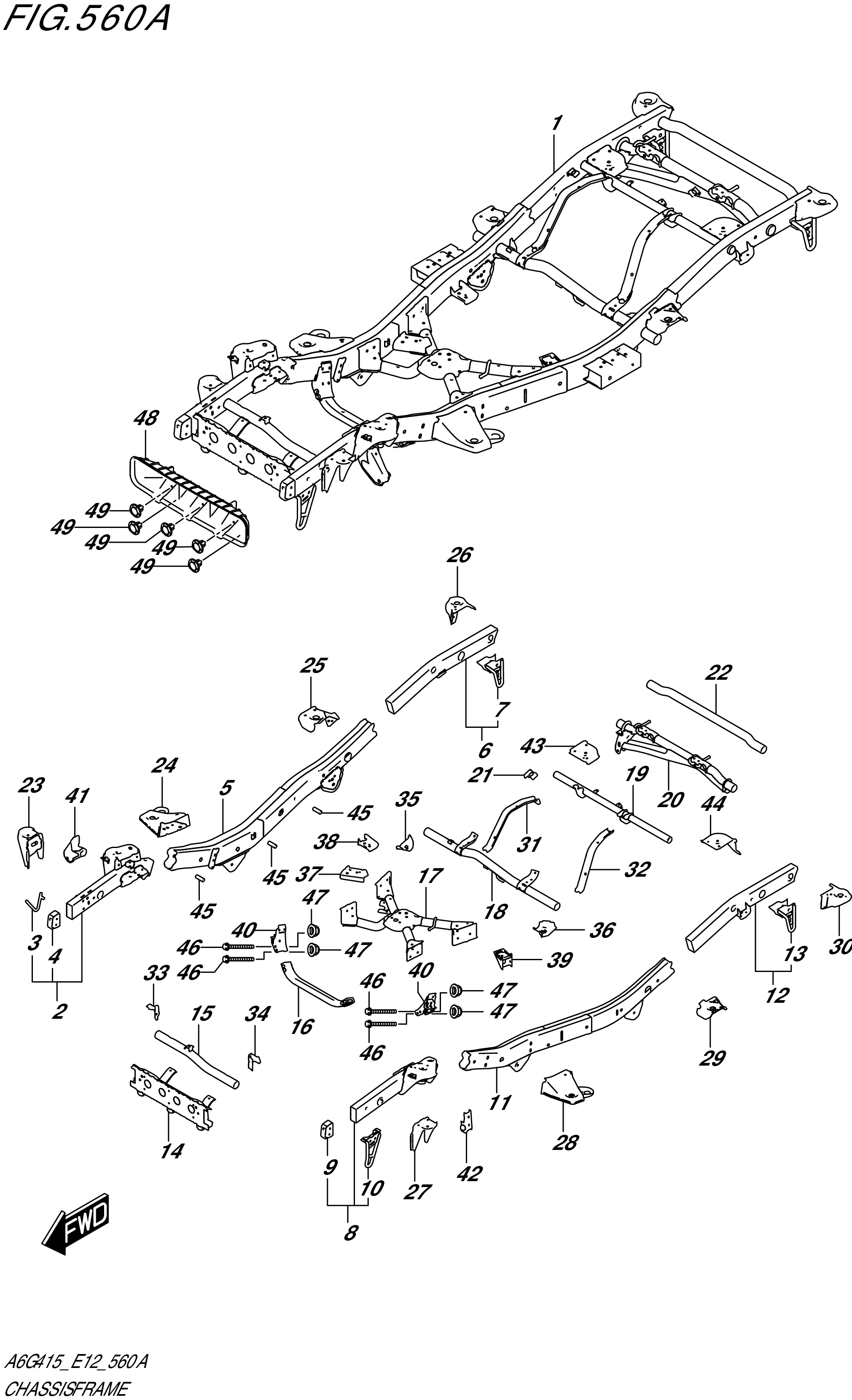

FIG. 560A- CHASSIS FRAME

No	No. Part	Description	Qty	Price Per Pcs
1	57000-78R20-000	FRAME ASSY	1	Rp45.699.500
2	57110-78R00-000	.MEMBER,FRAME FR,R	1	Rp3.394.000
3	57115-78R00-000	..HOOK,TOWING FR,R	1	Rp373.000
4	57140-78R00-000	..EXTENSION,FR FRAME	1	Rp369.000
5	57120-78R00-000	.MEMBER,FRAME CTR,R	1	Rp4.518.500
6	57130-78R00-000	.MEMBER,FRAME RR,R	1	Rp2.071.000
7	57920-78R00-000	..HOOK,TOWING RR	1	Rp637.000
8	57160-78R00-000	.MEMBER,FRAME FR,L	1	Rp3.394.000
9	57140-78R00-000	..EXTENSION,FR FRAME	1	Rp369.000
10	57910-78R00-000	..HOOK,TOWING FR,L	1	Rp637.000
11	57170-78R00-000	.MEMBER,FRAME CTR,L	1	Rp4.518.500
12	57180-78R00-000	.MEMBER,FRAME RR,L	1	Rp2.071.000
13	57920-78R00-000	..HOOK,TOWING RR	1	Rp637.000
14	57210-78R00-000	.CROSSMEMBER,1ST	1	Rp1.568.500
15	57220-78R00-000	.CROSSMEMBER,2ND	1	Rp828.000
16	57230-78R00-000	.CROSSMEMBER,3RD	1	Rp1.392.500
17	57240-78R00-000	.CROSSMEMBER,4TH	1	Rp3.141.000
18	57250-78R00-000	.CROSSMEMBER,5TH	1	Rp1.268.000
19	57260-78R00-000	.CROSSMEMBER,6TH	1	Rp1.167.000
20	57270-78R00-000	.CROSSMEMBER,7TH	1	Rp2.039.500
21	57279-78R00-000	.BRACKET,BRAKE FLEXIBLE HOSE	1	Rp218.500
22	57281-78R00-000	.CROSSMEMBER,8TH	1	Rp1.167.000
23	57310-78R00-000	.BRACKET,1ST MOUNTING,R	1	Rp572.500
24	57320-78R00-000	.BRACKET,2ND MOUNTING,R	1	Rp596.500
25	57330-78R00-000	.BRACKET,3RD MOUNTING,R	1	Rp299.000
26	57340-78R00-000	.BRACKET,4TH MOUNTING,R	1	Rp475.000
27	57360-78R00-000	.BRACKET,1ST MOUNTING,L	1	Rp572.500
28	57370-78R00-000	.BRACKET,2ND MOUNTING,L	1	Rp596.500
29	57380-78R00-000	.BRACKET,3RD MOUNTING,L	1	Rp299.000
30	57390-78R00-000	.BRACKET,4TH MOUNTING,L	1	Rp475.000
31	57411-78R00-000	.MEMBER,FUEL TANK UPPER,R	1	Rp397.000
32	57461-78R00-000	.MEMBER,FUEL TANK UPPER,L	1	Rp397.000
33	57531-78R00-000	.BRACKET,RADIATOR STAY,R	1	Rp195.500
34	57541-78R00-000	.BRACKET,RADIATOR STAY,L	1	Rp195.500
35	57561-78R00-000	.BRACKET,5TH CROSSMEMBER,R	1	Rp154.500
36	57566-78R00-000	.BRACKET,5TH CROSSMEMBER,L	1	Rp154.500
37	57611-78R00-000	.BRACKET,TRANSFER FR,R	1	Rp144.000
38	57621-78R00-000	.BRACKET,TRANSFER RR,R	1	Rp134.000
39	57630-78R00-000	.BRACKET,TRANSFER,L	1	Rp200.000
40	57740-78R00-000	.BRACKET,3RD CROSSMEMBER	2	Rp313.000
41	57820-78R00-000	.BRACKET,LATERAL ROD FR	1	Rp724.500
42	57831-78R00-000	.BRACKET,STEERING DAMPER	1	Rp211.500
43	57840-78R00-000	.BRACKET,RR COIL SPRING,R	1	Rp485.000
44	57890-78R00-000	.BRACKET,RR COIL SPRING,L	1	Rp485.000
45	09119-05018-000	.BOLT (5X15)	3	Rp13.000
46	01550-1090A-000	.BOLT (10X90)	4	Rp31.000
47	08313-2010A-000	.NUT	4	Rp20.500
48	72382-78R00-000	SHROUD,RADIATOR LWR	1	Rp626.500
49	09409-07340-000	CLIP (6.8X11.5)	5	Rp17.500
