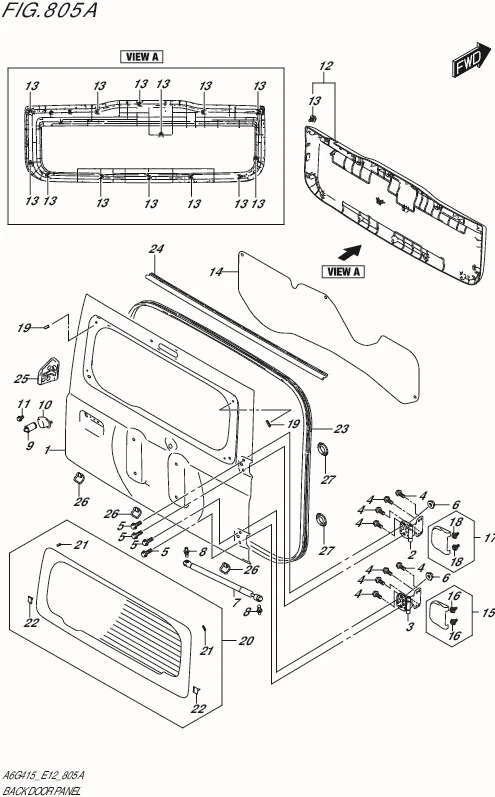

FIG.805A-BACK DOOR PANEL

FIG.805A-BACK DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 69100-77R04-000
SUB: 69100-77R01-000		 PANEL ASSY,BACK DR 1 Rp11.930.000
2 69510-77R00-000 HINGE,BACK DR UPPER 1 Rp1.000.000
3 69520-77R00-000 HINGE,BACK DR LOWER 1 Rp1.000.000
4 01550-0840A-000
SUB: 01550B0840AN000		 BOLT (8X40) 8 Rp3.500
5 01551-0825B-000 BOLT,BACK DR HINGE DR 4 Rp22.000
6 08361-2508A-000 NUT 2 Rp16.500
7 81850-77R01-000
SUB: 81850-77R00-000		 BALANCER,BACK DOOR 1 Rp513.500
8 81871-79J01-000
SUB: 81871-79J00-000		 BALLSTUD,BACK DR BALANCER 2 Rp71.000
9 82683-63R00-000 CUSHION,BACK DR 1 Rp40.500
10 82761-77R00-000 STOPPER,BACK DOOR LOWER 1 Rp31.000
11 01551-0612C-000 BOLT 1 Rp18.000
12 83770-77R00-5PK TRIM,BACK DR (BLACK) 1 Rp1.258.000
13 09409-10327-000 .CLIP 13 Rp5.000
14 83913-77R01-000
SUB: 83913-77R00-000		 COVER,BACK DR SEALING 1 Rp27.000
15 83940-77R00-000 COVER,BACK DR HINGE LOWER 1 Rp146.500
16 09409-06342-000
SUB: 09409-06332-000		 .CLIP 2 Rp19.500
17 83950-77R00-000 COVER,BACK DR HINGE UPPER 1 Rp146.500
18 09409-06342-000
SUB: 09409-06332-000		 .CLIP 2 Rp19.500
19 84515-65D00-000 FEMALE,GLASS FASTENER NO.2 2 Rp45.500
20 84570-77R03-000
SUB: 84570-77R01-000		 GLASS,BACK DR WINDOW 1 Rp2.836.500
21 84513-76F00-000 .MALE,GLASS FASTENER NO.2 2 Rp38.500
22 84575-71L00-000 .CLIP,GLASS FASTENER 2 Rp99.000
23 84681-77R00-000 WEATHERSTRIP,BACK DR OPNG 1 Rp477.500
24 84682-77R00-000 WEATHERSTRIP,BACK DR UPPER 1 Rp320.000
25 84683-77R00-000 DRIP,BACK DR LATCH 1 Rp190.000
26 83994-62R01-000 CAP,BACK DR DRAIN HOLE 3 Rp26.000
27 09250M30011-000 CAP (OD:38.5) 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
