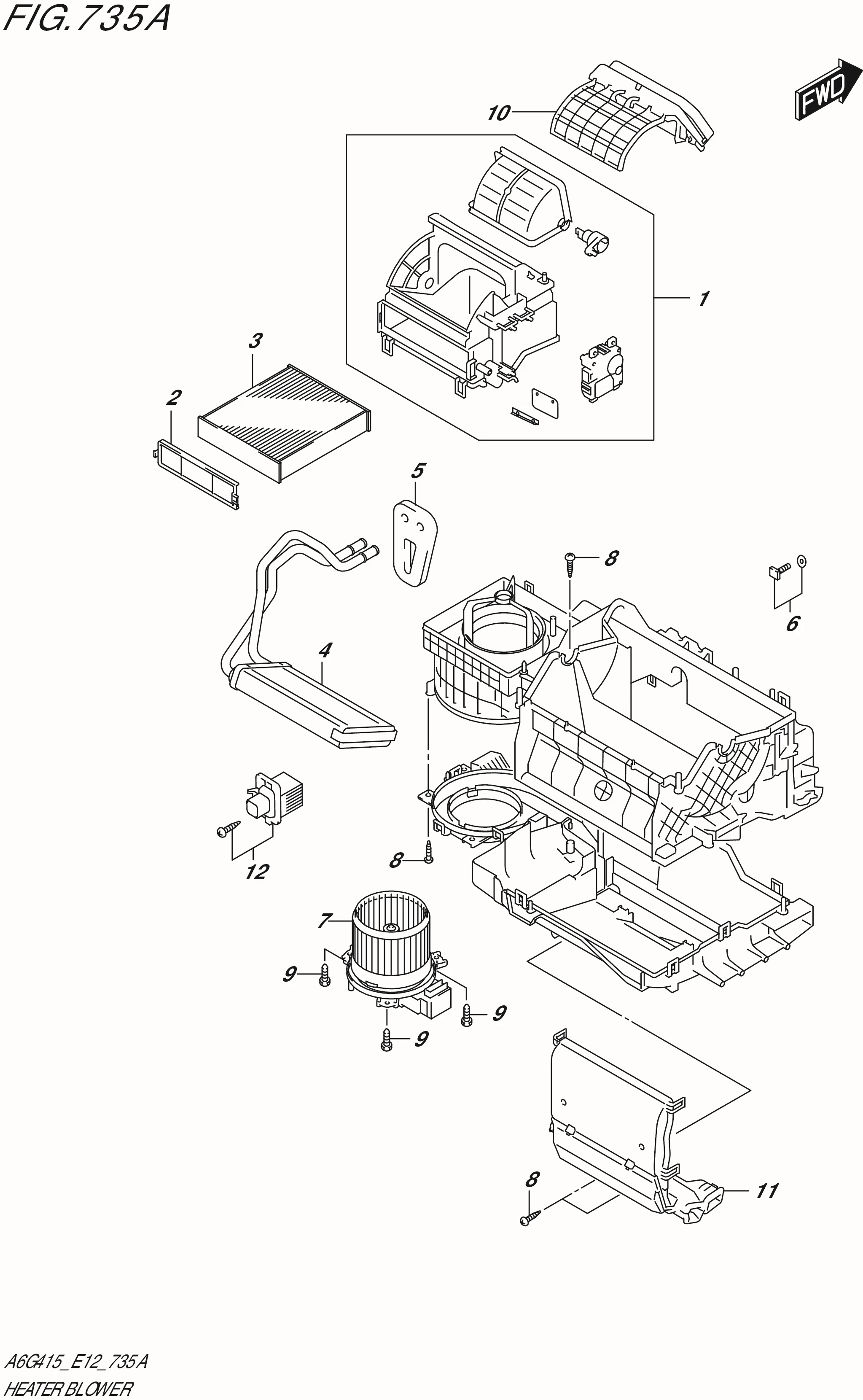

FIG.735A-HEATER BLOWER

FIG.735A-HEATER BLOWER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74210-62RB0-000	CASE,ASSY,BLOWER	1	Rp699.000
2	95423-74P00-000	HOLDER,FILTER	1	Rp120.500
3	95860-59S00-000 SUB: 95860-74P00-000	FILTER ASSY,AIR REFINER	1	Rp230.000
4	74120-77R20-000	CORE SUB ASSY,HEATER	1	Rp822.500
5	74116-77R20-000	PACKING	1	Rp84.000
6	74195-80P00-000	STUD BOLT	1	Rp54.500
7	74150-62RA1-000	MOTOR ASSY	1	Rp1.822.000
8	03112-0416A-000	SCREW	4	Rp23.500
9	74135-82000-000	SCREW,MOTOR	3	Rp19.500
10	74213-77R20-000	DUCT S/ASSY, AIR	1	Rp144.500
11	74115-77R20-000	DUCT S/ASSY, AIR	1	Rp121.000
12	95626-74PA0-000	ADDITIONAL KIT,AIR CONDITIONER	1	Rp1.136.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
