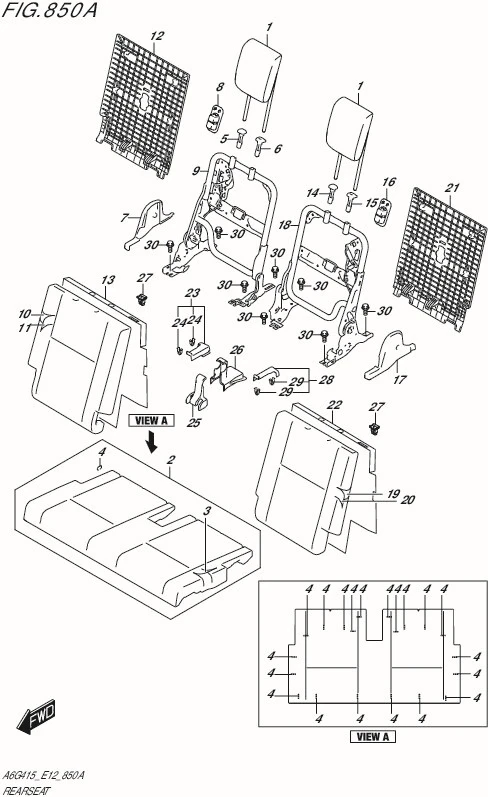

FIG.850A-REAR SEAT

No	No. Part	Description	Qty	Price Per Pcs
1	86401-77R00-S7S	HEADRESTRAINT ASSY,RR (BLACK)	2	Rp1.215.500
2	87101-77R00-DBB	CUSHION ASSY,RR (BLACK)	1	Rp5.029.000
3	87180-77R00-DBB	.TRIM,RR CUSHION (BLACK)	1	Rp1.895.000
4	09387-19001-000	.RING (OD:22.6)	20	Rp9.000
5	85341-63J11-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp69.000
6	85840-63J11-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp75.500
7	87221-77R00-5PK	COVER,RCLNG OUTSIDE,R (BLACK)	1	Rp73.000
8	87225-71L10-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp47.500
9	87310-77R40-000	FRAME,RR BACK,R	1	Rp3.236.500
10	87360-77R40-000	PAD,RR BACK,R	1	Rp539.500
11	87380-77R40-DBB	TRIM,RR BACK,R (BLACK)	1	Rp1.407.500
12	87391-77R00-5PK	BOARD,RR BACK,R (BLACK)	1	Rp484.000
13	87369-77R10-000	SILENCER,RR BACK,R	1	Rp58.000
14	85341-63J11-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp69.000
15	85840-63J11-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp75.500
16	87225-71L10-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp47.500
17	87721-77R00-5PK	COVER,RCLNG OUTSIDE,L (BLACK)	1	Rp93.000
18	87810-77R40-000	FRAME,RR BACK,L	1	Rp3.236.500
19	87860-77R40-000	PAD,RR BACK,L	1	Rp474.000
20	87880-77R40-DBB	TRIM,RR BACK,L (BLACK)	1	Rp1.407.500
21	87891-77R00-5PK	BOARD,RR BACK,L (BLACK)	1	Rp464.000
22	87869-77R10-000	SILENCER,RR BACK,L	1	Rp88.000
23	87222-77R00-5PK	COVER,RCLNG INSIDE,R (BLACK)	1	Rp60.500
24	09409-08351-000	.CLIP	2	Rp21.000
25	87285-77R10-5PK	COVER,RR CTR HINGE FR (BLACK)	1	Rp81.500
26	87286-77R10-5PK	COVER,RR CTR HINGE RR (BLACK)	1	Rp86.500
27	87460-76G11-000 SUB: 87460-76G10-000	HOOK,RR SEAT CUSH	2	Rp39.000
28	87722-77R00-5PK	COVER,RCLNG INSIDE,L (BLACK)	1	Rp60.500
29	09409-08351-000	.CLIP	2	Rp21.000
30	01550-1016A-000 SUB: 01550B1016AN000	BOLT (10X16)	8	Rp5.500
