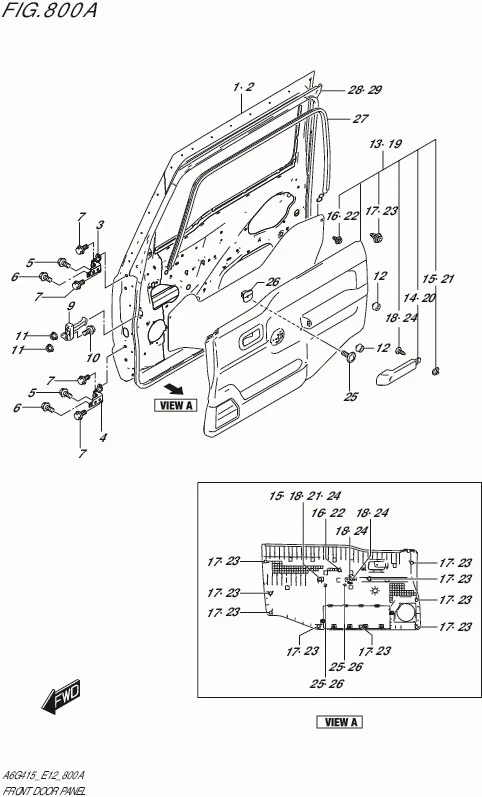

FIG.800A-FRONT DOOR PANEL

FIG.800A-FRONT DOOR PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 68001-77R00-000 PANEL ASSY,FR DR,R 1 Rp8.557.000
2 68002-77R00-000 PANEL ASSY,FR DR,L 1 Rp8.557.000
3 69310-77R00-000 HINGE,FR DR NO.1 2 Rp210.500
4 69320-77R00-000 HINGE,FR DR NO.2 2 Rp210.500
5 09113-08001-000 BOLT (8X20) 4 Rp18.500
6 01551-0820A-000 BOLT 4 Rp17.500
7 09103M08557-000
SUB: 09103M08389-000		 BOLT (8X24) 8 Rp8.500
8 83911-77R00-000 COVER,FR DR SEALING 2 Rp35.500
9 81830-73R01-000
SUB: 81830-73R00-000		 STOP,FRONT DOOR OPEN 2 Rp203.000
10 09112-08015-000 BOLT (8X25) 2 Rp32.000
11 08316-1006A-000 NUT (6X12) 4 Rp2.000
12 82711-51K00-000 CUSHION 4 Rp39.000
13 83710-77R10-5PK TRIM,FR DR,R (BLACK) 1 Rp1.258.000
14 83718-77R00-5PK .GRIP,FR DR,R (BLACK) 1 Rp292.000
15 09148-05045-000
SUB: 09148B05045N000		 .NUT (M5) 1 Rp4.000
16 09409-07351-000 .CLIP 1 Rp21.000
17 09409-10327-000 .CLIP 9 Rp5.000
18 03241-0512A-000
SUB: 03241B0512AN000		 .SCREW 3 Rp3.500
19 83720-77R10-5PK TRIM,FR DR,L (BLACK) 1 Rp1.258.000
20 83728-77R00-5PK .GRIP,FR DR,L (BLACK) 1 Rp292.000
21 09148-05045-000
SUB: 09148B05045N000		 .NUT (M5) 1 Rp4.000
22 09409-07351-000 .CLIP 1 Rp21.000
23 09409-10327-000 .CLIP 9 Rp5.000
24 03241-0512A-000
SUB: 03241B0512AN000		 .SCREW 3 Rp3.500
25 09132-05058-000 SCREW (5X12) 4 Rp14.000
26 09148-05031-000 NUT (M5) 4 Rp18.000
27 76291-77R00-000 TRIM,FR DR OPENING 2 Rp256.500
28 84641-77R00-000 WEATHERSTRIP,FR DR OPNG,R 1 Rp579.500
29 84651-77R00-000 WEATHERSTRIP,FR DR OPNG,L 1 Rp579.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
