New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPERFIG.721A-INSTRUMENT PANEL UPPERFIG.722A-INSTRUMENT PANEL LOWERFIG.730A-VENTILATORFIG.732A-HEATER UNITFIG.735A-HEATER BLOWERFIG.736A-HEATER DOORFIG.737A-EVAPORATOR UNITFIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIMFIG.750A-COVER-CAPFIG.755A-FUEL LID OPENERFIG.760A-ROOF LININGFIG.772A-MOLDINGFIG.774A-SPLASH GUARDFIG.780A-EMBLEMFIG.787A-ROOF SIDE PAD-AIR BAGFIG.790A-WINDSHIELDFIG.800A-FRONT DOOR PANELFIG.805A-BACK DOOR PANELFIG.810A-FRONT DOOR REGULATORFIG.820A-FRONT DOOR LOCKFIG.824A-BACK DOOR LOCKFIG.835A-MIRROR-SUNVISORFIG.841A-FRONT SEAT BELTFIG.843A-2ND SEAT BELTFIG.848A-FRONT LH SEATFIG.849A-FRONT RH SEATFIG.850A-REAR SEATFIG.865A-FUEL TANKFIG.893A-TOOLFIG.960A-CONDENSERFIG.968A-FRONT AC PIPINGFIG.990A-COMPRESSORFIG. 550A- BODY MOUNTINGFIG. 560A- CHASSIS FRAMEFIG. 570A- FRONT HOOD PANELFIG. 572A- TIRE CARRIERFIG. 580A- FRONT FENDER PANELFIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANELFIG. 660A- ROOF PANELFIG. 717A- FRONT BUMPERFIG. 73AA - HEATER CONTROL

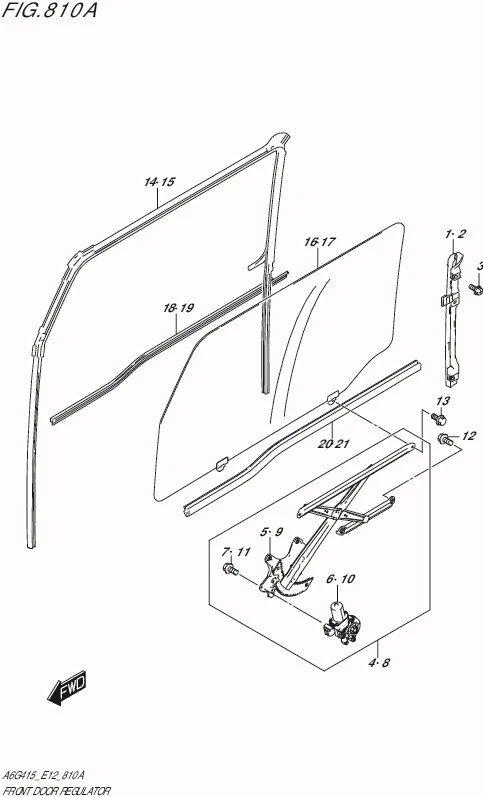

FIG.810A-FRONT DOOR REGULATOR

FIG.810A-FRONT DOOR REGULATOR
No No. Part Description Qty Price Per Pcs Remarks
1 81730-77R00-000 SASH,FRONT DOOR REAR,R 1 Rp130.500
2 81740-77R00-000 SASH,FRONT DOOR REAR,L 1 Rp130.500
3 09122-76001-000 SCREW (6X16) 4 Rp16.500
4 83401-77R10-000 REGULATOR ASSY,FRONT WINDOW,R 1 Rp1.104.500
5 83410-77R10-000 .REGULATOR S/ASSY,FR WDO,R 1 Rp529.500
6 83430-74P10-000 .MOTOR ASSY,WINDOW RGLTR,R 1 Rp909.000
7 09139-05063-000 .SCREW (5X11) 3 Rp16.000
8 83402-77R20-000 REGULATOR ASSY,FR DR WINDOW,L 1 Rp1.014.500
9 83440-77R10-000 .REGULATOR S/ASSY,FR WDO,L 1 Rp529.500
10 83530-61M00-000 .MOTOR ASSY,WINDOW RGLTR 1 Rp1.832.000
11 09139-05063-000 .SCREW (5X11) 3 Rp16.000
12 DISCONTINUE
SUB: 01580-0612A-000		 BOLT 8 -
13 DISCONTINUE
SUB: 01580-0612A-000		 BOLT 4 -
14 83661-77R00-000 RUN,FR DR GLASS,R 1 Rp479.000
15 83665-77R00-000 RUN,FR DR GLASS,L 1 Rp479.000
16 84501-77R02-000
SUB: 84501-77R01-000		 GLASS,FR DR WINDOW,R 1 Rp1.886.000
17 84502-77R02-000
SUB: 84502-77R01-000		 GLASS,FR DR WINDOW,L 1 Rp1.886.000
18 83811-77R00-000 WEATHERSTRIP,FR DR OUT,R 1 Rp358.000
19 83821-77R00-000 WEATHERSTRIP,FR DR OUT,L 1 Rp358.000
20 83851-77R00-000 WEATHERSTRIP,FR DR INNER,R 1 Rp315.000
21 83861-77R00-000 WEATHERSTRIP,FR DR INNER,L 1 Rp315.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
