New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

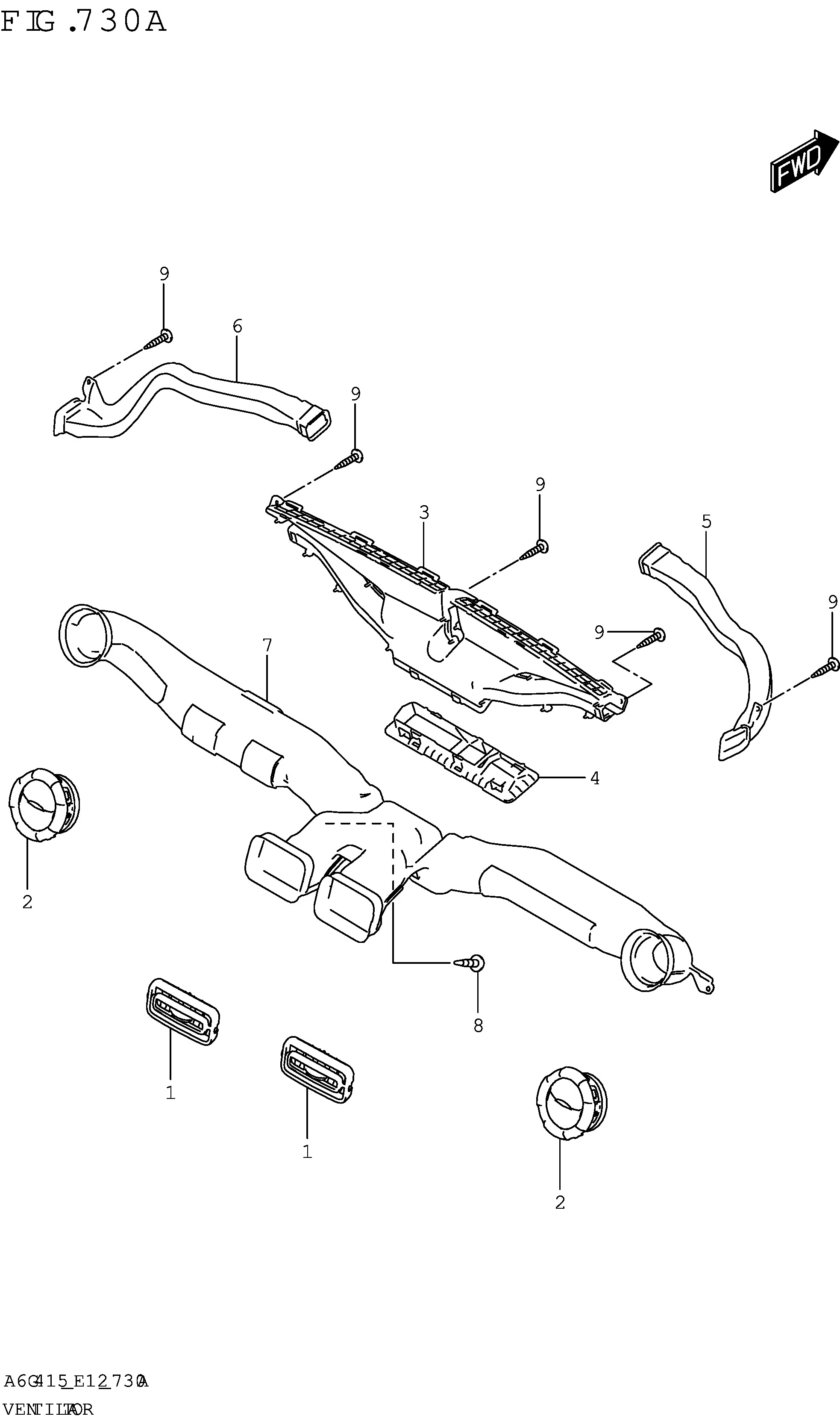

FIG.730A-VENTILATOR

FIG.730A-VENTILATOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73611-74P10-AQS	LOUVER,CTR VENT (BLACK)	2	Rp201.000
2	73630-77R00-DLK	LOUVER,SIDE VENT (BLACK/SILVER)	2	Rp270.000
3	73661-77R00-000	NOZZLE,DFR	1	Rp493.500
4	73662-77R00-000	ADAPTER,DFR NOZZLE	1	Rp320.500
5	73681-77R00-000	DUCT,DEMISTER,R	1	Rp93.000
6	73691-77R00-000	DUCT,DEMISTER,L	1	Rp93.000
7	74620-77R00-000	DUCT,VENT	1	Rp425.000
8	03241-0512A-000 SUB: 03241B0512AN000	SCREW	1	Rp3.500
9	03541-0516A-000 SUB: 03541M0516A-000	SCREW	5	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
