New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPER FIG.721A-INSTRUMENT PANEL UPPER FIG.722A-INSTRUMENT PANEL LOWER FIG.730A-VENTILATOR FIG.732A-HEATER UNIT FIG.735A-HEATER BLOWER FIG.736A-HEATER DOOR FIG.737A-EVAPORATOR UNIT FIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIM FIG.750A-COVER-CAP FIG.755A-FUEL LID OPENER FIG.760A-ROOF LINING FIG.772A-MOLDING FIG.774A-SPLASH GUARD FIG.780A-EMBLEM FIG.787A-ROOF SIDE PAD-AIR BAG FIG.790A-WINDSHIELD FIG.800A-FRONT DOOR PANEL FIG.805A-BACK DOOR PANEL FIG.810A-FRONT DOOR REGULATOR FIG.820A-FRONT DOOR LOCK FIG.824A-BACK DOOR LOCK FIG.835A-MIRROR-SUNVISOR FIG.841A-FRONT SEAT BELT FIG.843A-2ND SEAT BELT FIG.848A-FRONT LH SEAT FIG.849A-FRONT RH SEAT FIG.850A-REAR SEAT FIG.865A-FUEL TANK FIG.893A-TOOL FIG.960A-CONDENSER FIG.968A-FRONT AC PIPING FIG.990A-COMPRESSOR FIG. 550A- BODY MOUNTING FIG. 560A- CHASSIS FRAME FIG. 570A- FRONT HOOD PANEL FIG. 572A- TIRE CARRIER FIG. 580A- FRONT FENDER PANEL FIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANEL FIG. 660A- ROOF PANEL FIG. 717A- FRONT BUMPER FIG. 73AA - HEATER CONTROL

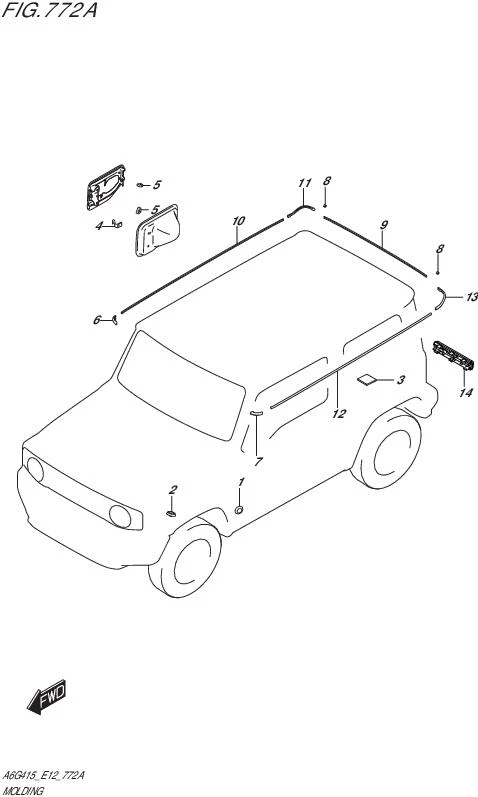

FIG.772A-MOLDING

FIG.772A-MOLDING

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	09250-15016-000	CAP	17	Rp22.500
2	09250-15016-000	CAP	2	Rp22.500
3	44281-29C00-000 SUB: 44281B29C00N000	CUSHION	3	Rp6.000
4	77111-60K00-000 SUB: 77111-81A00-000	SPRING,FUEL LID	1	Rp42.000
5	77116M60B00-000	CUSHION	2	Rp11.500
6-1	77141-78R02-5PK SUB: 77141-78R01-5PK	CAP,ROOF SIDE DRIP FR,R (BLACK)	1	Rp62.500
6-2	78142-78R02-5PK SUB: 78142-78R01-5PK	CAP,ROOF MOLDING FR,R (BLACK)	1	Rp89.500
7-1	77142-78R02-5PK SUB: 77142-78R01-5PK	CAP,ROOF SIDE DRIP FR,L (BLACK)	1	Rp62.500
7-2	78152-78R02-5PK SUB: 78152-78R01-5PK	CAP,ROOF MOLDING FR,L (BLACK)	1	Rp89.500
8	77144-78R00-5PK SUB: 77143-78R00-5PK	CAP,ROOF SIDE DRIP RR (BLACK)	2	Rp135.500
9	78131-78R00-5PK	MOLDING,ROOF DRIP REAR (BLACK)	1	Rp495.000
10	78141-78R00-5PK	MOLDING,ROOF DRIP SIDE,R (BLACK)	1	Rp489.000
11	78143-78R00-5PK	CAP,ROOF DRIP MOLDING RR,R (BLACK)	1	Rp190.500
12	78151-78R00-5PK	MOLDING,ROOF DRIP SIDE,L (BLACK)	1	Rp489.000
13	78153-78R00-5PK	CAP,ROOF DRIP MOLDING RR,L (BLACK)	1	Rp190.500
14	77330-78R00-000	OUTLET,VENTILATOR	2	Rp221.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
