  5. FIG.849A-FRONT RH SEAT

New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPERFIG.721A-INSTRUMENT PANEL UPPERFIG.722A-INSTRUMENT PANEL LOWERFIG.730A-VENTILATORFIG.732A-HEATER UNITFIG.735A-HEATER BLOWERFIG.736A-HEATER DOORFIG.737A-EVAPORATOR UNITFIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIMFIG.750A-COVER-CAPFIG.755A-FUEL LID OPENERFIG.760A-ROOF LININGFIG.772A-MOLDINGFIG.774A-SPLASH GUARDFIG.780A-EMBLEMFIG.787A-ROOF SIDE PAD-AIR BAGFIG.790A-WINDSHIELDFIG.800A-FRONT DOOR PANELFIG.805A-BACK DOOR PANELFIG.810A-FRONT DOOR REGULATORFIG.820A-FRONT DOOR LOCKFIG.824A-BACK DOOR LOCKFIG.835A-MIRROR-SUNVISORFIG.841A-FRONT SEAT BELTFIG.843A-2ND SEAT BELTFIG.848A-FRONT LH SEATFIG.849A-FRONT RH SEATFIG.850A-REAR SEATFIG.865A-FUEL TANKFIG.893A-TOOLFIG.960A-CONDENSERFIG.968A-FRONT AC PIPINGFIG.990A-COMPRESSORFIG. 550A- BODY MOUNTINGFIG. 560A- CHASSIS FRAMEFIG. 570A- FRONT HOOD PANELFIG. 572A- TIRE CARRIERFIG. 580A- FRONT FENDER PANELFIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANELFIG. 660A- ROOF PANELFIG. 717A- FRONT BUMPERFIG. 73AA - HEATER CONTROL

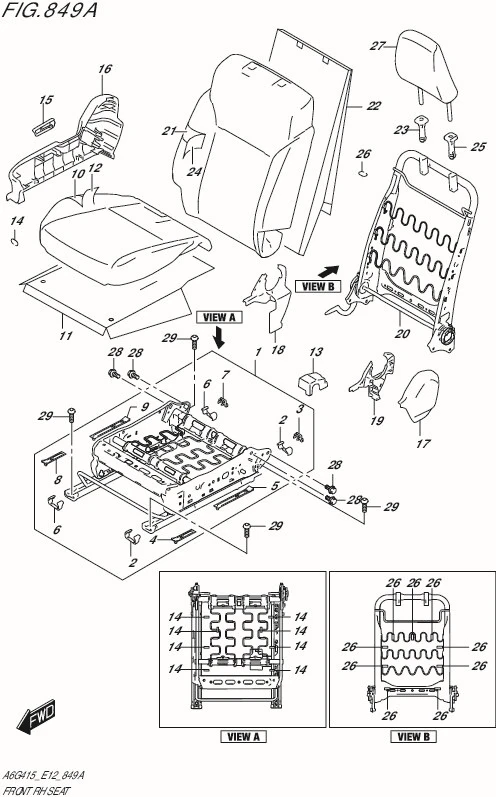

FIG.849A-FRONT RH SEAT

FIG.849A-FRONT RH SEAT
No No. Part Description Qty Price Per Pcs Remarks
1 85103-78R00-000
SUB: 85103-77R00-000		 FRAME ASSY,FR CUSH,R 1 Rp3.619.000
2 86652-77R00-000 .CAP,ADJUSTER LWR 2 Rp60.000
3 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
4 86656-77R00-000 .PROTECTOR,FR ADJ FR 1 Rp63.000
5 86657-77R00-000 .PROTECTOR,FR ADJ RR 1 Rp63.000
6 86652-77R00-000 .CAP,ADJUSTER LWR 2 Rp60.000
7 86653M74P50-000 .CAP,FR ADJ UPR 1 Rp5.500
8 86656-77R00-000 .PROTECTOR,FR ADJ FR 1 Rp63.000
9 86657-77R00-000 .PROTECTOR,FR ADJ RR 1 Rp63.000
10 85160-77R00-000 PAD,FR CUSH 1 Rp1.568.500
11 85169-77R00-000 SILENCER,FR CUSH 1 Rp53.000
12 85180-77R00-DBA TRIM,FR CUSH,R (BLACK) 1 Rp2.197.000
13 85281-77R00-000 COVER,HARNESS BRKT,R 1 Rp43.000
14 09387-19001-000 RING (OD:22.6) 8 Rp9.000
15 85211-58J00-5PK KNOB,RCLNG,R (BLACK) 1 Rp28.500
16 85221-77R00-5PK COVER,RCLNG OUT,R (BLACK) 1 Rp211.500
17 85222-77R00-5PK COVER,RCLNG INS LWR,R (BLACK) 1 Rp61.000
18 85241-77R00-5PK COVER,RCLNG INS,R (BLACK) 1 Rp73.000
19 85242-77R00-5PK COVER,RCLNG INS,L (BLACK) 1 Rp56.000
20 85303-77R00-000 FRAME ASSY,FR BACK,R 1 Rp2.739.000
21 85360-77R00-000 PAD,FR BACK,R 1 Rp1.717.500
22 85369-77R00-000 SILENCER,FR BACK 1 Rp135.500
23 85341-63R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp28.500
24 85380-77R00-DBA TRIM,FR BACK (BLACK) 1 Rp2.219.000
25 85840-63R00-P4Z GUIDE,HEADRESTRAINT (GRAY) 1 Rp33.000
26 09387-19001-000 RING 9 Rp9.000
27 86401-62R00-S7S HEADRESTRAINT ASSY,FR (BLACK) 1 Rp1.334.500
28 01550-1016A-000
SUB: 01550B1016AN000		 BOLT (10X16) 4 Rp5.500
29 09119-08107-000 BOLT (8X25) 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
