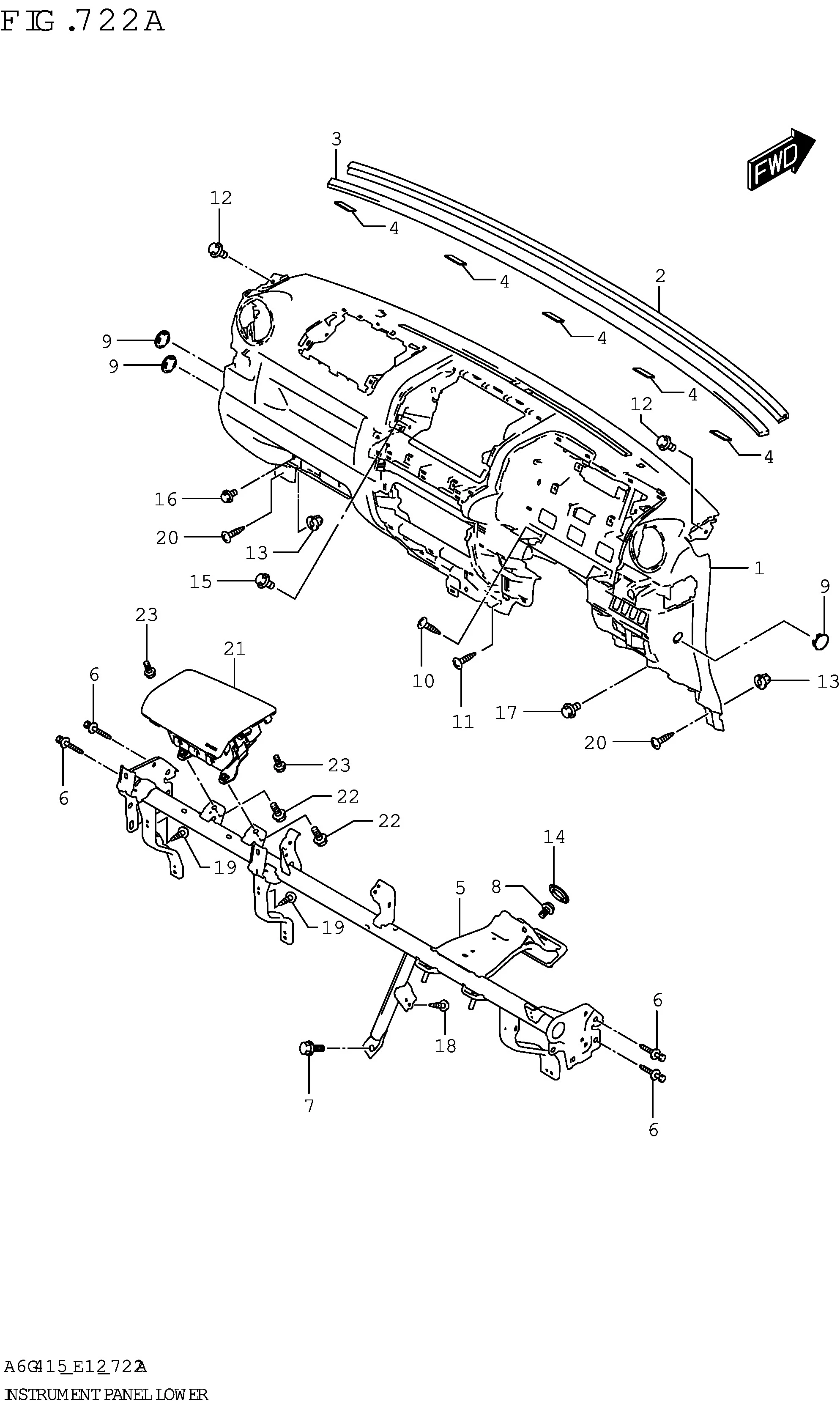

FIG.722A-INSTRUMENT PANEL LOWER

FIG.722A-INSTRUMENT PANEL LOWER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	73111-77R02-5PK SUB: 73111-77R01-5PK	PANEL,INSTRUMENT MAIN (BLACK)	1	Rp3.865.000
2	73114M50M00-000	SILENCER,I/P TOP	1	Rp33.000
3	73118-58J00-000 SUB: 73118B58J00N000	SEAL,I/P	1	Rp10.000
4	73123-82M00-000	FELT	5	Rp19.500
5	73200-77R00-000	MEMBER,STEERING SUPPORT	1	Rp2.256.000
6	73291-50G20-000	BOLT,STRG SUPPORT MEMBER SIDE	4	Rp42.500
7	73291-74P00-000	BOLT,WITH WASHER	1	Rp18.500
8	73291-74P00-000	BOLT,WITH WASHER	1	Rp18.500
9	73871M73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp5.000
10	09132-05049-000	SCREW (5X12)	2	Rp21.000
11	09132-05049-000	SCREW (5X12)	1	Rp21.000
12	09138M06054-000	BOLT	2	Rp5.000
13	09148-05018-000	NUT (M5)	2	Rp11.500
14	09250M30011-000	CAP (OD:38.5)	1	Rp4.500
15	02162-0616A-000	SCREW (6X16)	2	Rp3.000
16	02162-0616A-000	SCREW (6X16)	2	Rp3.000
17	02162-0616A-000	SCREW (6X16)	1	Rp3.000
18	03541-0516A-000 SUB: 03541M0516A-000	SCREW	1	Rp3.500
19	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
20	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
21	73910-77R02-5PK SUB: 73910-77R00-5PK	MODULE ASSY,PASSENGER AIRBAG (BLACK)	1	Rp17.161.500
22	01551-0816C-000	BOLT	2	Rp13.500
23	02162-0616A-000	SCREW (6X16)	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
