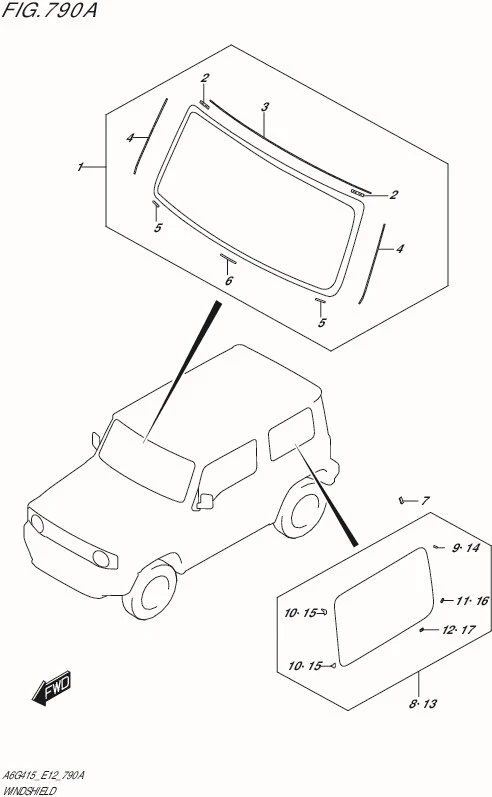

FIG.790A-WINDSHIELD

FIG.790A-WINDSHIELD

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	84510-78R04-000 SUB: 84510-78R01-000	GLASS,WINDSHIELD	1	Rp5.793.500
2	84512-64PV0-000	.FASTENER, GLASS UPPER	2	Rp31.000
3	84514-78R00-000	.DAM,WINDSHIELD UPR	1	Rp26.500
4	84515-78R00-000	.DAM,WINDSHIELD SIDE	2	Rp21.000
5	84572M71L00-000	.SPACER,WINDSHIELD GLASS	2	Rp5.500
6	84617-64P00-000	.SPACER, WINDSHIELD GLASS	1	Rp55.000
7	84514-65D00-000	FEMALE,GLASS FASTENER NO.1	2	Rp41.000
8	84580-78R02-000 SUB: 84580-78R01-000	GLASS,QTR WINDOW,R	1	Rp1.355.500
9	84514-82K00-000	.MALE,GLASS FASTENER NO.2	1	Rp35.500
10	84582-78R00-000	.PIN,QTR WINDOW	2	Rp100.000
11	84583-73H00-000	.SPACER,QTR WINDOW GLASS	1	Rp43.500
12	84583-78R00-000	.SPACER,QTR WINDOW GLASS	1	Rp95.000
13	84590-78R02-000 SUB: 84590-78R01-000	GLASS,QTR WINDOW,L	1	Rp1.355.500
14	84514-82K00-000	.MALE,GLASS FASTENER NO.2	1	Rp35.500
15	84582-78R00-000	.PIN,QTR WINDOW	2	Rp100.000
16	84583-73H00-000	.SPACER,QTR WINDOW GLASS	1	Rp43.500
17	84583-78R00-000	.SPACER,QTR WINDOW GLASS	1	Rp95.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
