New Jimny 3 Doors

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.718A-REAR BUMPERFIG.721A-INSTRUMENT PANEL UPPERFIG.722A-INSTRUMENT PANEL LOWERFIG.730A-VENTILATORFIG.732A-HEATER UNITFIG.735A-HEATER BLOWERFIG.736A-HEATER DOORFIG.737A-EVAPORATOR UNITFIG.740A-CONSOLE BOX (5MT)FIG.740B-CONSOLE BOX (4AT)FIG.741A-FLOOR CARPET (5MT)FIG.741B-FLOOR CARPET (4AT)FIG.745A-INTERIOR TRIMFIG.750A-COVER-CAPFIG.755A-FUEL LID OPENERFIG.760A-ROOF LININGFIG.772A-MOLDINGFIG.774A-SPLASH GUARDFIG.780A-EMBLEMFIG.787A-ROOF SIDE PAD-AIR BAGFIG.790A-WINDSHIELDFIG.800A-FRONT DOOR PANELFIG.805A-BACK DOOR PANELFIG.810A-FRONT DOOR REGULATORFIG.820A-FRONT DOOR LOCKFIG.824A-BACK DOOR LOCKFIG.835A-MIRROR-SUNVISORFIG.841A-FRONT SEAT BELTFIG.843A-2ND SEAT BELTFIG.848A-FRONT LH SEATFIG.849A-FRONT RH SEATFIG.850A-REAR SEATFIG.865A-FUEL TANKFIG.893A-TOOLFIG.960A-CONDENSERFIG.968A-FRONT AC PIPINGFIG.990A-COMPRESSORFIG. 550A- BODY MOUNTINGFIG. 560A- CHASSIS FRAMEFIG. 570A- FRONT HOOD PANELFIG. 572A- TIRE CARRIERFIG. 580A- FRONT FENDER PANELFIG. 590A- FRONT BODY PANEL (5MT)FIG. 590B- FRONT BODY PANEL (4AT)FIG. 600A- FLOOR PANEL (5MT)FIG. 600B- FLOOR PANEL (4AT)FIG. 640A- SIDE BODY PANELFIG. 660A- ROOF PANELFIG. 717A- FRONT BUMPERFIG. 73AA - HEATER CONTROL

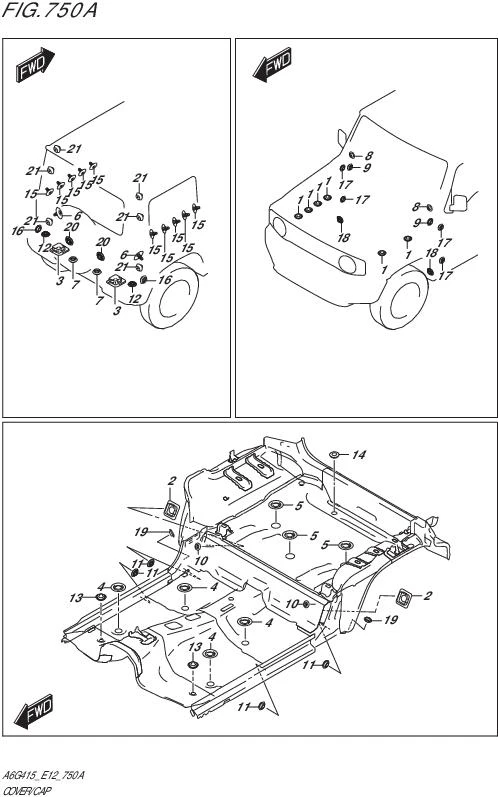

FIG.750A-COVER-CAP

FIG.750A-COVER-CAP
No No. Part Description Qty Price Per Pcs Remarks
1 09250-15L03-000
SUB: 09250B15L03N000		 CAP (OD:23.5) 6 Rp5.500
2 75411-60A00-000 CAP,TAIL MEMBER LOWER 2 Rp48.500
3 75411-60A00-000 CAP,TAIL MEMBER LOWER 2 Rp48.500
4 75431-64L00-000 CAP,MAIN FL DRAIN 4 Rp43.000
5 75431-64L00-000 CAP,MAIN FL DRAIN 3 Rp43.000
6 75483-78R00-000 CLIP,LUGGAGE FLOOR 2 Rp22.500
7 09250-10022-000 CAP 2 Rp24.000
8 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:18) 2 Rp14.000
9 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:18) 2 Rp14.000
10 09250-10016-000
SUB: 09250B10016N000		 CAP (OD:18) 2 Rp14.000
11 09250-15L03-000
SUB: 09250B15L03N000		 CAP (OD:23.5) 4 Rp5.500
12 09250M20031-000
SUB: 09250M20L02-000		 CAP (OD:28.5) 2 Rp4.500
13 09250-30002-000
SUB: 09250-30002L000		 CAP (OD:40) 2 Rp5.500
14 09250-30023-000 CAP,REAR FLOOR DRAIN RR 1 Rp54.000
15 09409-06336-000 CLIP,RR QUARTER INNER 10 Rp20.500
16 09250-15012-000
SUB: 09250B15012N000		 CAP (OD:23.5) 2 Rp5.000
17 09250-15012-000
SUB: 09250B15012N000		 CAP (OD:23.5) 4 Rp5.000
18 09250-15012-000
SUB: 09250B15012N000		 CAP (OD:23.5) 2 Rp5.000
19 09250-15012-000
SUB: 09250B15012N000		 CAP (OD:23.5) 2 Rp5.000
20 09250-15012-000
SUB: 09250B15012N000		 CAP (OD:23.5) 2 Rp5.000
21 09250-10022-000 CAP 6 Rp24.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
