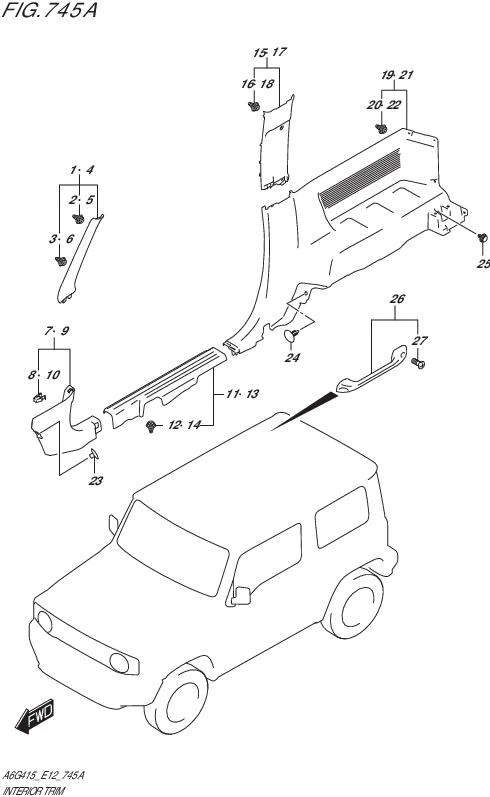

FIG.745A-INTERIOR TRIM

FIG.745A-INTERIOR TRIM
No No. Part Description Qty Price Per Pcs Remarks
1 76110-77R00-6GS TRIM,FRONT PILLAR,R (GRAY) 1 Rp211.500
2 09409-10327-000 .CLIP 1 Rp5.000
3 09409-10313-000 .CLIP 1 Rp14.000
4 76120-77R00-6GS TRIM,FRONT PILLAR,L (GRAY) 1 Rp211.500
5 09409-10327-000 .CLIP 1 Rp5.000
6 09409-10313-000 .CLIP 1 Rp14.000
7 76130-77R00-5PK TRIM,DASH SIDE,R (BLACK) 1 Rp196.000
8 09409-08349-000 .CLIP 1 Rp4.500
9 76140-77R00-5PK TRIM,DASH SIDE,L (BLACK) 1 Rp196.000
10 09409-08349-000 .CLIP 1 Rp4.500
11 76150-77R00-5PK SCUFF,SIDE SILL FRONT,R (BLACK) 1 Rp342.500
12 09409-10327-000 .CLIP 2 Rp5.000
13 76160-77R00-5PK SCUFF,SIDE SILL FRONT,L (BLACK) 1 Rp342.500
14 09409-10327-000 .CLIP 2 Rp5.000
15 76210-77R00-5PK TRIM,CTR PILLAR UPPER,R (BLACK) 1 Rp227.000
16 09409-10327-000 .CLIP 4 Rp5.000
17 76220-77R00-5PK TRIM,CTR PILLAR UPPER,L (BLACK) 1 Rp227.000
18 09409-10327-000 .CLIP 4 Rp5.000
19 76270-77R00-5PK TRIM,QUARTER LOWER,R (BLACK) 1 Rp1.707.500
20 09409-10327-000 .CLIP 5 Rp5.000
21 76280-77R00-5PK TRIM,QUARTER LOWER,L (BLACK) 1 Rp1.707.500
22 09409-10327-000 .CLIP 5 Rp5.000
23 09148-05042-000 CLIP (M5) 2 Rp17.500
24 09409-06310-5PK CAP (BLACK) 2 Rp19.500
25 09409-07340-000 CLIP (6.8X11.5) 10 Rp17.500
26 76411M79F00-6GS GRIP,ASSISTANT (GRAY) 3 Rp27.000
27 09139-06104-000 SCREW (6X26) 6 Rp22.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
