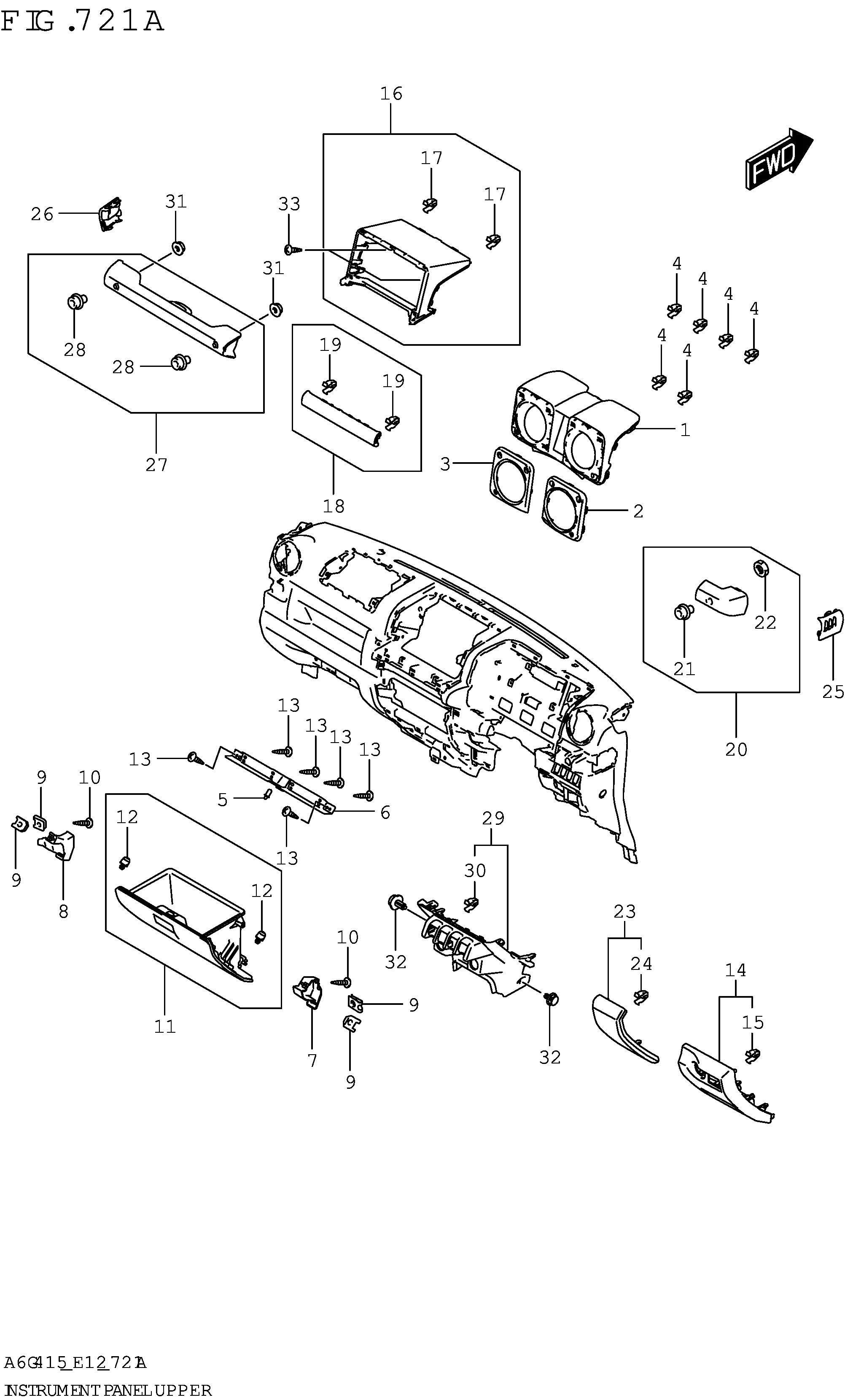

FIG.721A-INSTRUMENT PANEL UPPER

No	No. Part	Description	Qty	Price Per Pcs
1	73311-77R00-5PK	PANEL,INSTRUMENT CLUSTER (BLACK)	1	Rp660.500
2	73312-77R00-W9K	GARNISH,INSTRUMENT CLUSTER,R (BLACK)	1	Rp660.500
3	73313-77R00-W9K	GARNISH,INSTRUMENT CLUSTER,L (BLACK)	1	Rp660.500
4	09409-08351-000	CLIP	6	Rp21.000
5	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
6	73470-77R00-000	STRIKER,GLOVE BOX UPPER	1	Rp186.500
7	73481-77R00-000	REINF,GLOVE BOX INSIDE	1	Rp93.000
8	73482-77R00-000	REINF,GLOVE BOX OUTSIDE	1	Rp232.000
9	09148-05045-000 SUB: 09148B05045N000	NUT (M5)	4	Rp4.000
10	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
11	73410-77R00-5PK	BOX,GLOVE (BLACK)	1	Rp637.000
12	73461-54M00-000	.CUSHION,GLOVE BOX SIDE	2	Rp32.000
13	03541-0516A-000 SUB: 03541M0516A-000	SCREW	6	Rp3.500
14	73811-77R00-5PK	COVER,I/P DRVR LOWER OUTSIDE (BLACK)	1	Rp221.500
15	09409-08351-000	.CLIP	1	Rp21.000
16	73822-77R00-5PK	BASE,I/P CENTER GARNISH (BLACK)	1	Rp161.000
17	09409-08352-000	.CLIP	2	Rp19.000
18	73824-77R00-5PK	CAP,I/P CENTER (BLACK)	1	Rp84.000
19	09409-08352-000	.CLIP	2	Rp19.000
20	73831-77R00-5PK	GARNISH,I/P DRVR UPPER OUTSIDE(BLACK)	1	Rp166.500
21	73291-77R01-000	.SCREW,GRIP	1	Rp21.500
22	08310-0008A-000 SUB: 08310M0008A-000	.NUT	1	Rp12.500
23	73832-77R00-5PK	COVER,I/P DRVR LOWER (BLACK)	1	Rp309.000
24	09409-08351-000	.CLIP	1	Rp21.000
25	73833-77R00-5PK	GARNISH,DEMISTER,R (BLACK)	1	Rp155.500
26	73834-77R00-5PK	GARNISH,DEMISTER,L (BLACK)	1	Rp182.000
27	73850-77R00-5PK	GRIP,I/P,L (BLACK)	1	Rp1.659.500
28	73291-77R01-000	.SCREW,GRIP	2	Rp21.500
29	73891-77R00-5PK	GARNISH,I/P CENTER LOWER (BLACK)	1	Rp374.000
30	09409-08352-000	.CLIP	1	Rp19.000
31	09159-08140-000	NUT	2	Rp20.000
32	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
33	03541-0516A-000 SUB: 03541M0516A-000	SCREW	2	Rp3.500
