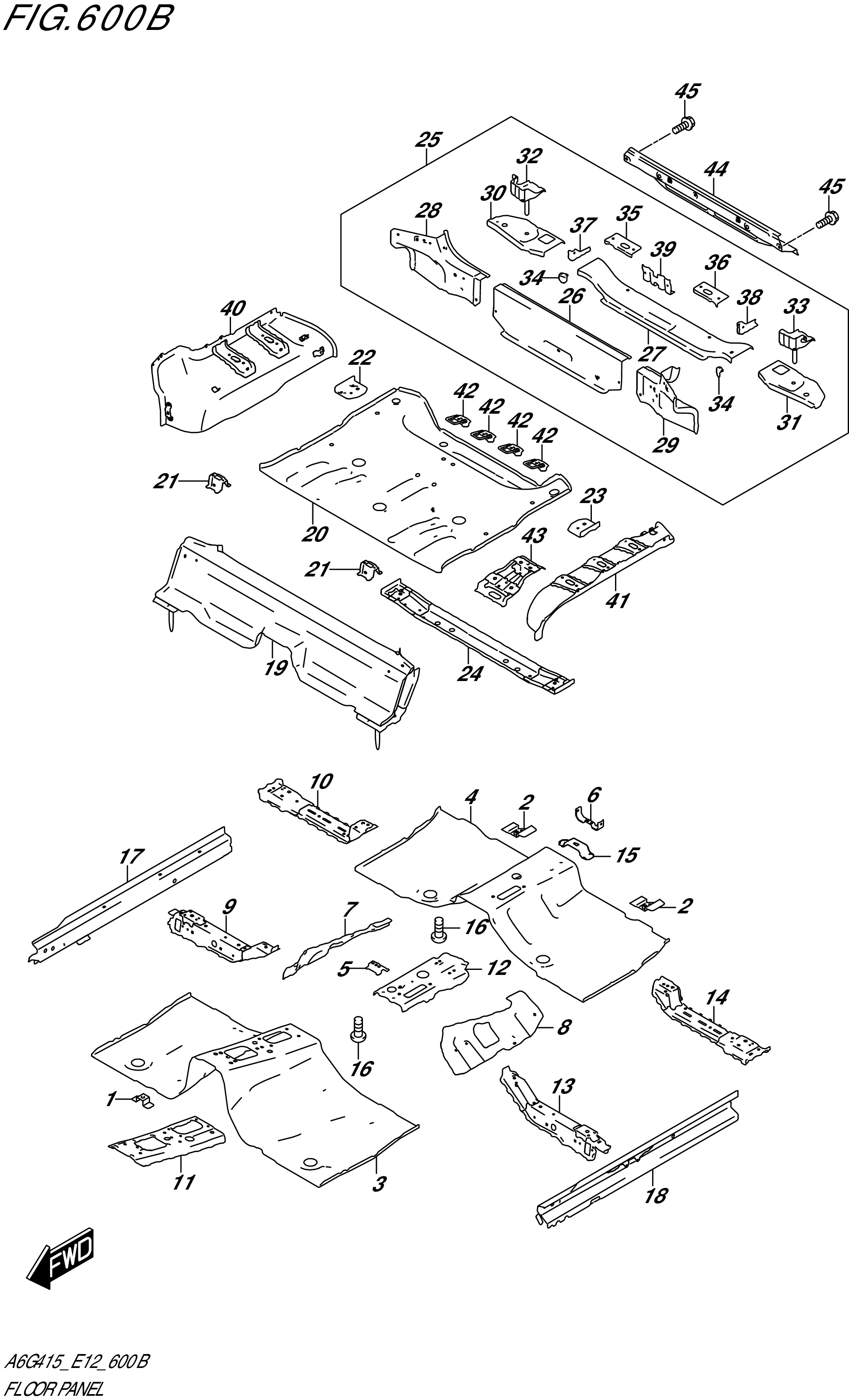

FIG. 600B- FLOOR PANEL (4AT)

No	No. Part	Description	Qty	Price Per Pcs
1	58232-60B00-000	BRACKET,PARKING CABLE	1	Rp8.500
2	61412-81A01-000	BRACKET,PARKING CABLE	2	Rp78.500
3	61511-78RV0-000	PANEL,MAIN FLOOR FR	1	Rp4.599.500
4	61512-78RV0-000	PANEL,MAIN FLOOR RR	1	Rp4.599.500
5	61514-78R00-000	BRACKET,RR CONSOLE FR	1	Rp257.500
6	61515-78R00-000	BRACKET,RR CONSOLE RR	1	Rp257.500
7	61516-78R00-000	REINF,MAIN FLOOR,R	1	Rp382.000
8	61517-78R00-000	REINF,MAIN FLOOR,L	1	Rp382.000
9	61520-78R00-000	CROSSMEMBER,FR SEAT FR,R	1	Rp694.000
10	61530-78R00-000	CROSSMEMBER,FR SEAT RR,R	1	Rp531.500
11	61541-78R11-000	REINF,SHIFT LEVER	1	Rp456.000
12	61550-78R00-000	REINF,PARKING BRAKE LEVER	1	Rp457.000
13	61570-78R00-000	CROSSMEMBER,FR SEAT FR,L	1	Rp694.000
14	61580-78R00-000	CROSSMEMBER,FR SEAT RR,L	1	Rp531.500
15	65514-57L00-000	BRACKET,KEYLESS ANTENNA	1	Rp37.500
16	09119-05018-000	BOLT (5X15)	2	Rp13.000
17	61610-78R00-000	PANEL,SIDE SILL INR FR,R	1	Rp1.167.000
18	61660-78R00-000	PANEL,SIDE SILL INR FR,L	1	Rp1.167.000
19	61700-78R00-000	PANEL,CENTER FLOOR	1	Rp2.687.500
20	62111-78R00-000	PANEL,RR FLOOR	1	Rp1.316.000
21	62112-78R00-000	BRACKET,RR SEAT CUSHION	2	Rp216.000
22	62113-78R00-000	REINF,SEAT BACK HNG SIDE RR,R	1	Rp227.000
23	62114-78R00-000	REINF,SEAT BACK HNG SIDE RR,L	1	Rp227.000
24	62120-78R00-000	CROSSMEMBER,RR FLOOR	1	Rp961.000
25	62130-78R00-000	MEMBER,TAIL INNER	1	Rp4.527.500
26	62131-78R00-000	.MEMBER,TAIL INNER UPPER	1	Rp909.000
27	62132-78R00-000	.MEMBER,TAIL INNER LOWER	1	Rp761.000
28	62133-78R00-000	.EXTENSION,BACK PILLAR CORNER,R	1	Rp1.067.500
29	62134-78R00-000	.EXTENSION,BACK PILLAR CORNER,L	1	Rp1.067.500
30	62135-78R00-000	.MEMBER,TAIL INNER LOWER,R	1	Rp221.500
31	62136-78R00-000	.MEMBER,TAIL INNER LOWER,L	1	Rp221.500
32	62137-78R00-000	.REINF,4TH MOUNTING,R	1	Rp318.500
33	62138-78R00-000	.REINF,4TH MOUNTING,L	1	Rp318.500
34	62139-78R00-000	.BRACKET,SPACER	2	Rp139.500
35	62167-78R00-000	.REINF,TAIL INNER UPPER,R	1	Rp141.000
36	62168-78R00-000	.REINF,TAIL INNER UPPER,L	1	Rp141.000
37	62172-78R00-000	.BRACE,TAIL INNER MBR,R	1	Rp160.500
38	62173-78R00-000	.BRACE,TAIL INNER MBR,L	1	Rp160.500
39	62174-78R00-000	.REINF,TAIL INNER MEMBER	1	Rp196.000
40	62140-78R00-000	PANEL,WHEEL HOUSE INNER,R	1	Rp1.004.500
41	62150-78R00-000	PANEL,WHEEL HOUSE INNER,L	1	Rp1.004.500
42	62160-78R00-000	STRIKER,CHILD ANCHOR	4	Rp226.500
43	62190-78R00-000	REINF,REAR FLOOR	1	Rp406.500
44	62511-78R00-000	MEMBER,TAIL OUTER	1	Rp761.000
45	01550-0610B-000 SUB: 01550-0610A-000	BOLT (6X10)	2	Rp3.000
