GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

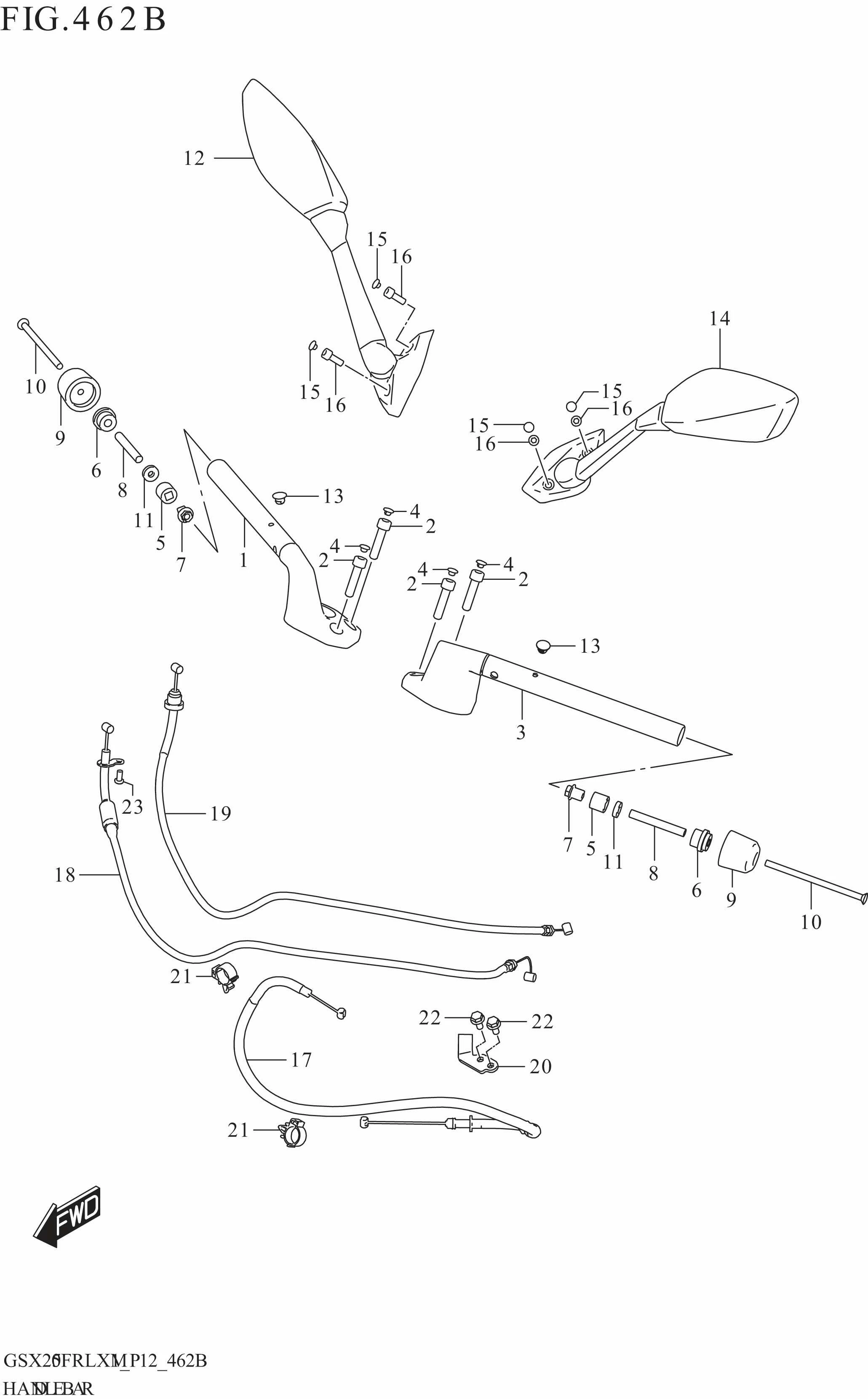

HANDLEBAR

HANDLEBAR
No No. Part Description Qty Price Per Pcs Remarks
1 56110-41K00-291 HANDLEBAR RH (BLACK) 1 Rp658.500
2 56123-41K00-000 BOLT,HANDLEBAR 4 Rp31.500
3 56150-41K00-291 HANDLEBAR LH (BLACK) 1 Rp658.500
4 56246-41K00-000 CAP,HANDLEBAR BOLT 4 Rp5.500
5 56272-10G01-000 EXPANDER,HANDLE BALANCER 2 Rp5.000
6 56272-28F10-000 EXPANDER,HDL BALANCER OUTER 2 Rp18.500
7 56273-10G10-000 NUT,HANDLE BALANCER 2 Rp20.500
8 56276-41K00-000 SPACER,EXPANDER 2 Rp75.500
9 56278-28G10-000 BALANCER,HANDLEBAR 2 Rp88.500
10 09127-06018-000 SCREW (6X110) 2 Rp4.000
11 09160-06131-000 WASHER (6.5X16X4) 2 Rp19.000
12 56500-41K00-000 MIRROR ASSY,REAR VIEW RH 1 Rp257.500
13 56524-41K01-000 CAP 2 Rp5.500
14 56600-41K00-000 MIRROR ASSY,REAR VIEW LH 1 Rp257.500
15 09250-05009-000 CAP (OD:10) 4 Rp12.500
16 07130-0616A-000
SUB: 07130-0616B-000		 BOLT 4 Rp3.500
17 58200-41K20-000 CABLE ASSY,CLUTCH 1 Rp130.500
18 58300-41K00-000 CABLE ASSY,THROTTLE NO.1 1 Rp120.500
19 58300-41K10-000 CABLE ASSY,THROTTLE NO.2 1 Rp114.000
20 58634-41K10-000 STOPPER,CLUTCH CABLE 1 Rp10.500
21 09403-18409-000 CLAMP 2 Rp13.000
22 01550-0612A-000 BOLT 2 Rp3.500
23 02112-0510B-000 SCREW 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
