GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

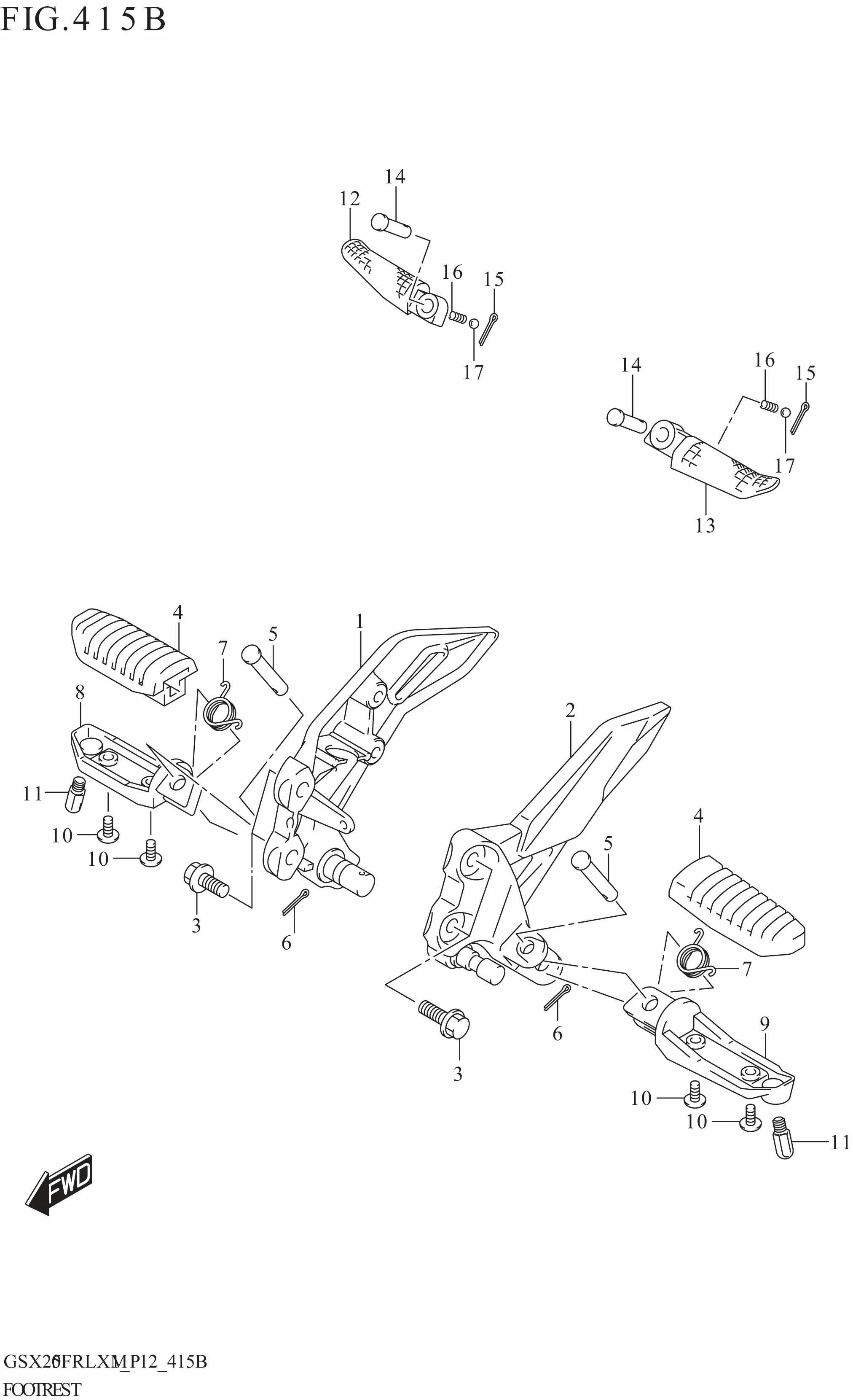

FOOTREST

FOOTREST
No No. Part Description Qty Price Per Pcs Remarks
1 43510-34J00-000 BRACKET,FR FOOTREST RH 1 Rp273.500
2 43521-34J10-000 BRACKET,FRONT FOOTREST LH 1 Rp232.000
3 01550-0825A-000 BOLT 4 Rp3.500
4 43550-44G30-000 RUBBER,FOOTREST 2 Rp89.000
5 43529-34J00-000 PIN,FRONT FOOTREST 2 Rp10.000
6 04111-2515A-000 PIN 2 Rp8.500
7 09448-16033-000 SPRING 2 Rp8.500
8 43511-44G10-000 BAR,FRONT FOOTREST RH 1 Rp357.500
9 43521-44G10-000 BAR,FRONT FOOTREST LH 1 Rp357.500
10 02142-0512A-000 SCREW 4 Rp3.500
11 43576-48B02-000 BOLT,BANK SENSOR 2 Rp45.000
12 43611-37H40-000 BAR,PILLION FOOTREST RH 1 Rp79.500
13 43621-37H40-000 BAR,PILLION FOOTREST LH 1 Rp79.500
14 43529-34J10-000 PIN,PILLION FOOTREST 2 Rp6.500
15 04111-2515A-000 PIN 2 Rp8.500
16 09440-05003-000 SPRING 2 Rp12.000
17 06111M07004-000
SUB: 06111-07004-000		 BALL 2 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
