GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

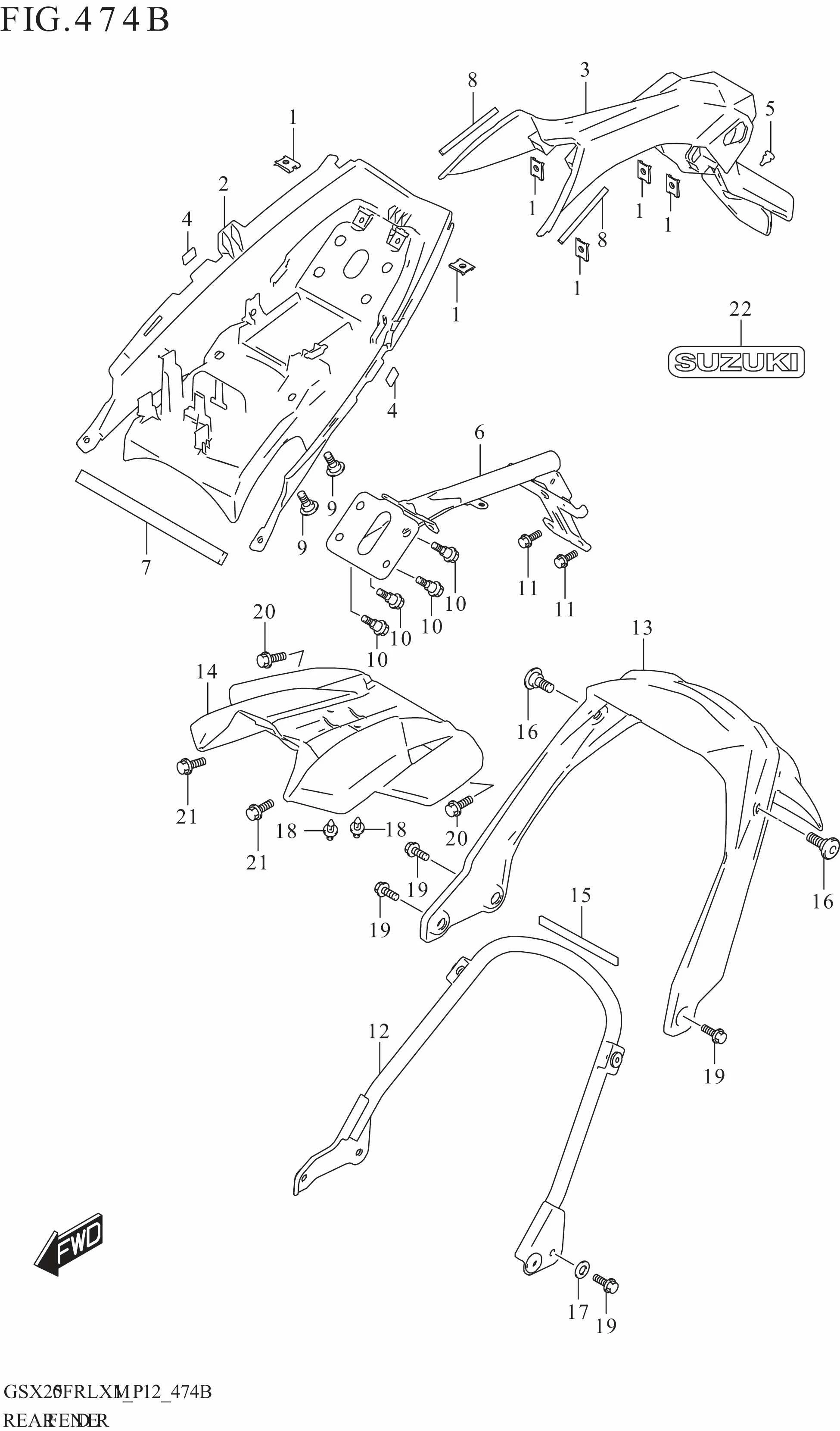

REAR FENDER

REAR FENDER
No No. Part Description Qty Price Per Pcs Remarks
1 35157-34J00-000 NUT 6 Rp5.500
2 63111-41K00-000 FENDER,REAR FRONT 1 Rp89.000
3 63112-41K00-000 FENDER,REAR REAR 1 Rp83.500
4 63114-41K00-000 CUSHION,FENDER REAR FRONT 2 Rp5.500
5 63118-41K00-000 PLUG,REAR FENDER 1 Rp9.000
6 63130-41K00-000 BRACKET,REAR FENDER 1 Rp254.000
7 63191-34J00-000 CUSHION,REAR FENDER 1 Rp5.500
8 63191-41K00-000 CUSHION,REAR FENDER 2 Rp5.500
9 94413-30H10-000 BOLT,COWLING (6X16.5) 2 Rp9.000
10 09111-06072-000 BOLT (6X17.8) 4 Rp3.500
11 01550-0616B-000 BOLT 2 Rp5.500
12 63110-41K00-000 BRACKET,REAR FENDER LWR 1 Rp249.500
13 63411-41K00-000 FENDER,REAR LWR CTR 1 Rp76.000
14 63412-41K00-000 EXTENSION,REAR FENDER 1 Rp58.000
15 63413-41K00-000 CUSHION,REAR FENDER LWR 1 Rp9.000
16 09139-06230-000 SCREW (6X13) 2 Rp22.000
17 09160-08156-000 WASHER (8.5X20X1.6) 1 Rp78.000
18 09409-06L07-000 CLIP 2 Rp10.000
19 01550-0820B-000 BOLT 4 Rp3.500
20 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
21 09111-06102-000 BOLT (6X14.8) 2 Rp3.500
22 68171-41K00-000 EMBLEM,SUZUKI 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
