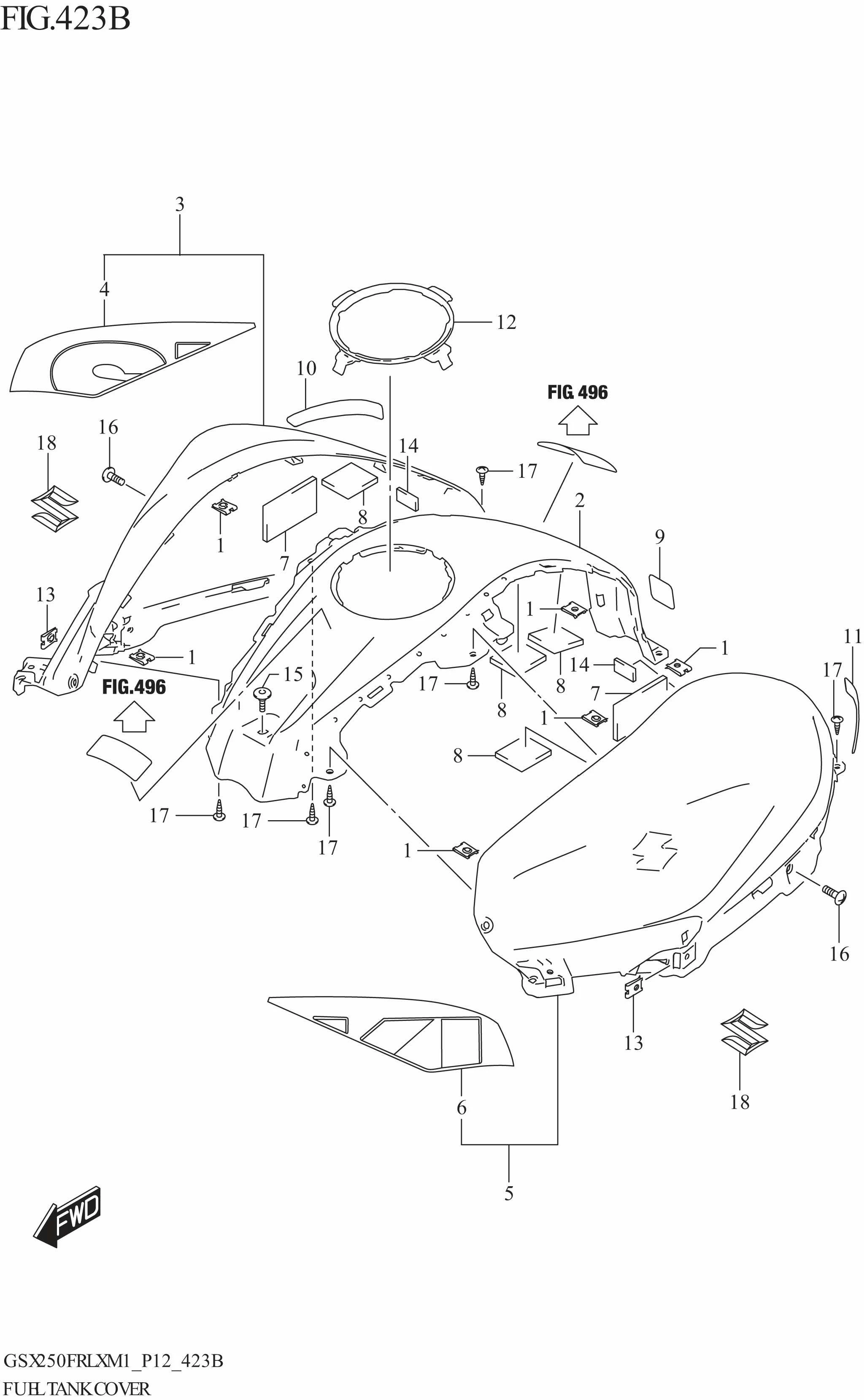

FUEL TANK COVER (GSX250FRLZ)

FUEL TANK COVER (GSX250FRLZ)
No No. Part Description Qty Price Per Pcs Remarks
1 09148-05L04-000 NUT 6 Rp7.500
2 44171-41K10-YSF COVER,FUEL TANK CENTER (BLUE) 1 Rp238.500
3 44180-41K10-YSF COVER,FUEL TANK RH (BLUE) 1 Rp409.000
4 68132-42K00-AGQ .TAPE,FUEL TANK COVER RH (BLUE,WHITE) 1 Rp41.500
5 44190-41K10-YSF COVER,FUEL TANK LH (BLUE) 1 Rp409.000
6 68142-42K00-AGQ .TAPE,FUEL TANK COVER LH (BLUE,WHITE) 1 Rp41.500
7 44271-34J01-000 CUSHION,FUEL TANK COVER 2 Rp31.500
8 44282-34J01-000 CUSHION,FUEL TANK COVER CTR 4 Rp5.500
9 44283-41K00-000 PROTECTOR,TANK COVER CTR 1 Rp5.500
10 44284-41K00-000 PROTECTOR,TANK COV NO.1 RH 1 Rp9.000
11 44285-41K00-000 PROTECTOR,TANK COV NO.1 LH 1 Rp9.000
12 44295-41K00-000 RUBBER,FUEL TANK COVER 1 Rp16.500
13 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
14 48178-31C00-000 CUSHION,LEG SHIELD (15X30X3) 2 Rp2.500
15 09139-05096-000 BOLT (5X13) 1 Rp24.000
16 DISCONTINUE
SUB: 02142-0608A-000		 SCREW 2 -
17 03541-0512A-000 SCREW 6 Rp3.500
18 68311-27K00-000 EMBLEM,S 2 Rp40.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
