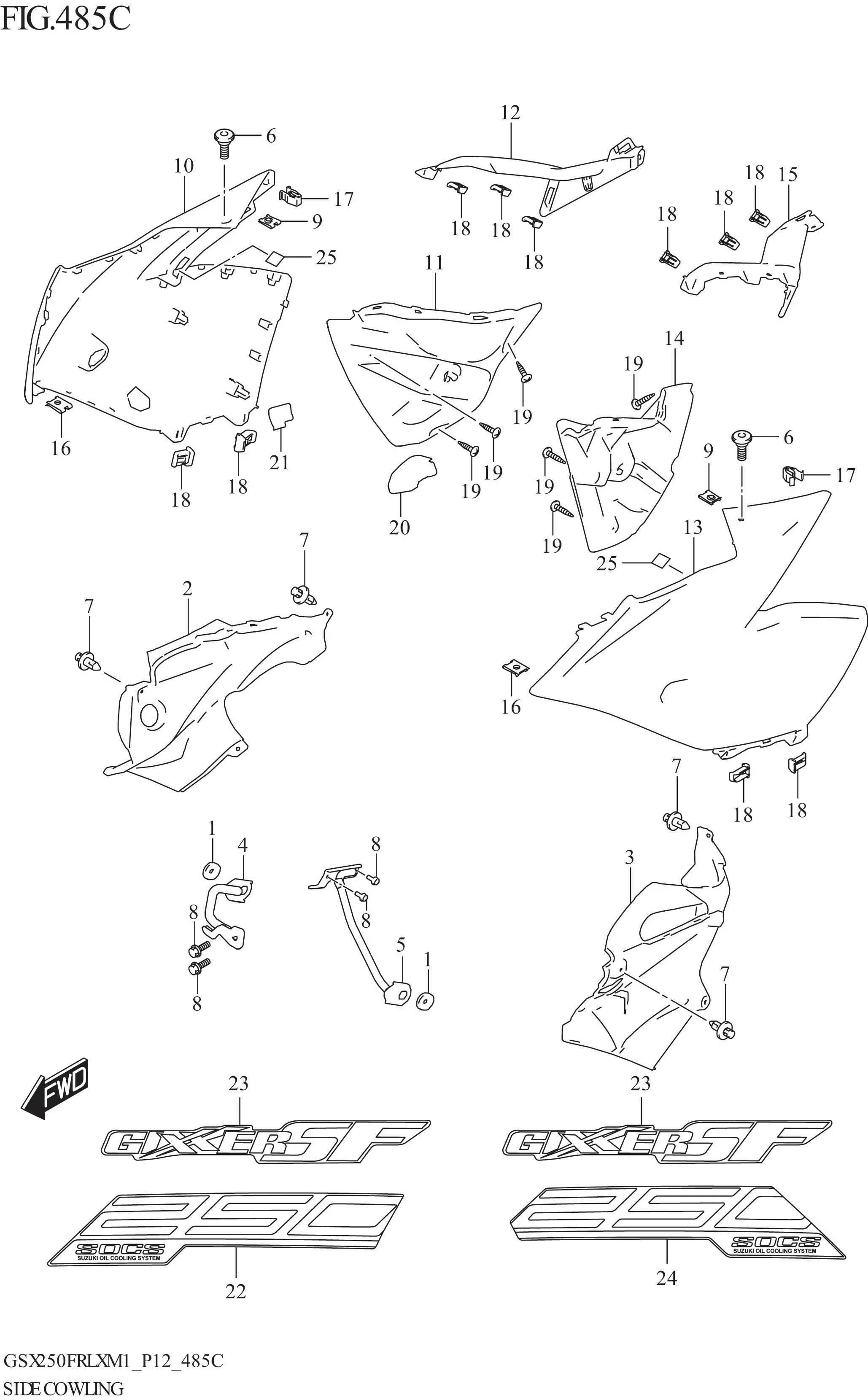

SIDE COWLING (GSX250FRL)

SIDE COWLING (GSX250FRL)
No No. Part Description Qty Price Per Pcs Remarks
1 47315-41K00-000 CUSHION (8-14X26-32X7) 2 Rp6.500
2 94461-41K00-000 COWLING,SIDE INNER RH 1 Rp130.000
3 94462-41K00-000 COWLING,SIDE INNER LH 1 Rp130.000
4 94530-41K00-000 BRACKET,SIDE COWL RH 1 Rp72.500
5 94540-41K00-000 BRACKET,SIDE COWL LH 1 Rp72.500
6 09139-05096-000 BOLT (5X13) 2 Rp24.000
7 09409-06L07-000 CLIP 4 Rp10.000
8 01550-0616A-000 BOLT 4 Rp3.500
9 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
10 94431-41K01-YKV COWLING,SIDE RH (BLACK) 1 Rp347.000
11 94432-41K00-000 COVER,SIDE COWL INNER RH 1 Rp83.500
12 94433-41K00-000 COVER,SIDE COWL RH 1 Rp29.500
13 94441-41K01-YKV COWLING,SIDE LH (BLACK) 1 Rp392.500
14 94442-41K00-000 COVER,SIDE COWL INNER LH 1 Rp83.500
15 94443-41K00-000 COVER,SIDE COWL LH 1 Rp29.500
16 09148-05060-000 NUT 2 Rp29.500
17 09409-08L09-000 CLIP 2 Rp8.500
18 09409-08009-000 CLIP,SIDE COWL 10 Rp8.000
19 03541-0516A-000 SCREW 6 Rp3.500
20 94434-41K00-000 SHIELD,SIDE COVER HEAT 1 Rp42.000
21 94435-41K00-000 SHIELD,SIDE COWL HEAT 1 Rp19.000
22 68183-41K00-B7N TAPE,COWLING SIDE,R 1 Rp69.500
23 68185-41K00-B7Q EMBLEM,GIXXERSF 2 Rp21.000
24 68193-41K00-B7N TAPE,COWLING SIDE,L 1 Rp69.500
25 94642-10GA0-000 CUSHION (15X15X2) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
