GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

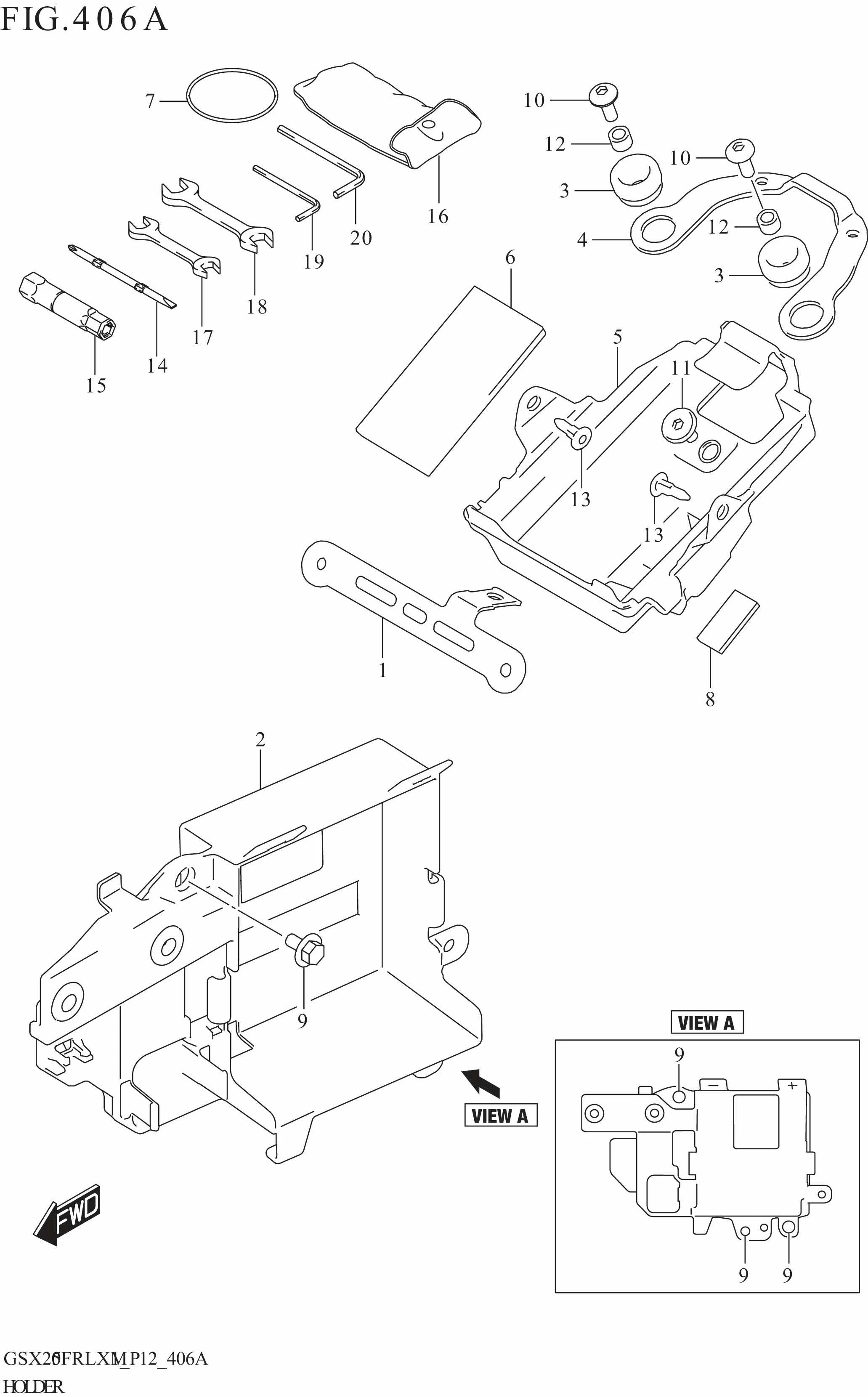

HOLDER

HOLDER
No No. Part Description Qty Price Per Pcs Remarks
1 38741-41K10-000 BRACKET,RELAY 1 Rp16.500
2 41542-41K00-000 HOLDER,BATTERY 1 Rp45.500
3 47312-37H10-000 CUSHION,FRAME COVER REAR 2 Rp24.000
4 47415-41K00-000 BRACKET,REAR COMB 1 Rp26.000
5 47431-41K00-000 HOLDER,TOOL 1 Rp19.000
6 47432-41K00-000 CUSHION (80X138X5) 1 Rp30.500
7 47435-41K00-000 BAND,TOOL 1 Rp11.500
8 48178-31C00-000 CUSHION,LEG SHIELD (15X30X3) 1 Rp2.500
9 09111-06063-000 BOLT (6X12) 3 Rp3.500
10 09139-06139-000 SCREW (6X16) 2 Rp24.500
11 09139-06219-000 BOLT (6X13) 1 Rp24.000
12 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
13 09409-06L07-000 CLIP 2 Rp10.000
14 96412-33G50-000 DRIVER 1 Rp16.500
15 96414-33G50-000 SPANNER,BOX (16) 1 Rp20.000
16 96511-41K00-000 BAG,TOOL 1 Rp10.000
17 96513-23J00-000 SPANNER,OPEN (10X12) 1 Rp16.500
18 96513-23J10-000 SPANNER,OPEN (14X17) 1 Rp22.000
19 96514-23J00-000 SPANNER,HEXAGON (4) 1 Rp15.500
20 96514-23J10-000 SPANNER,HEXAGON (5) 1 Rp8.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
