GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

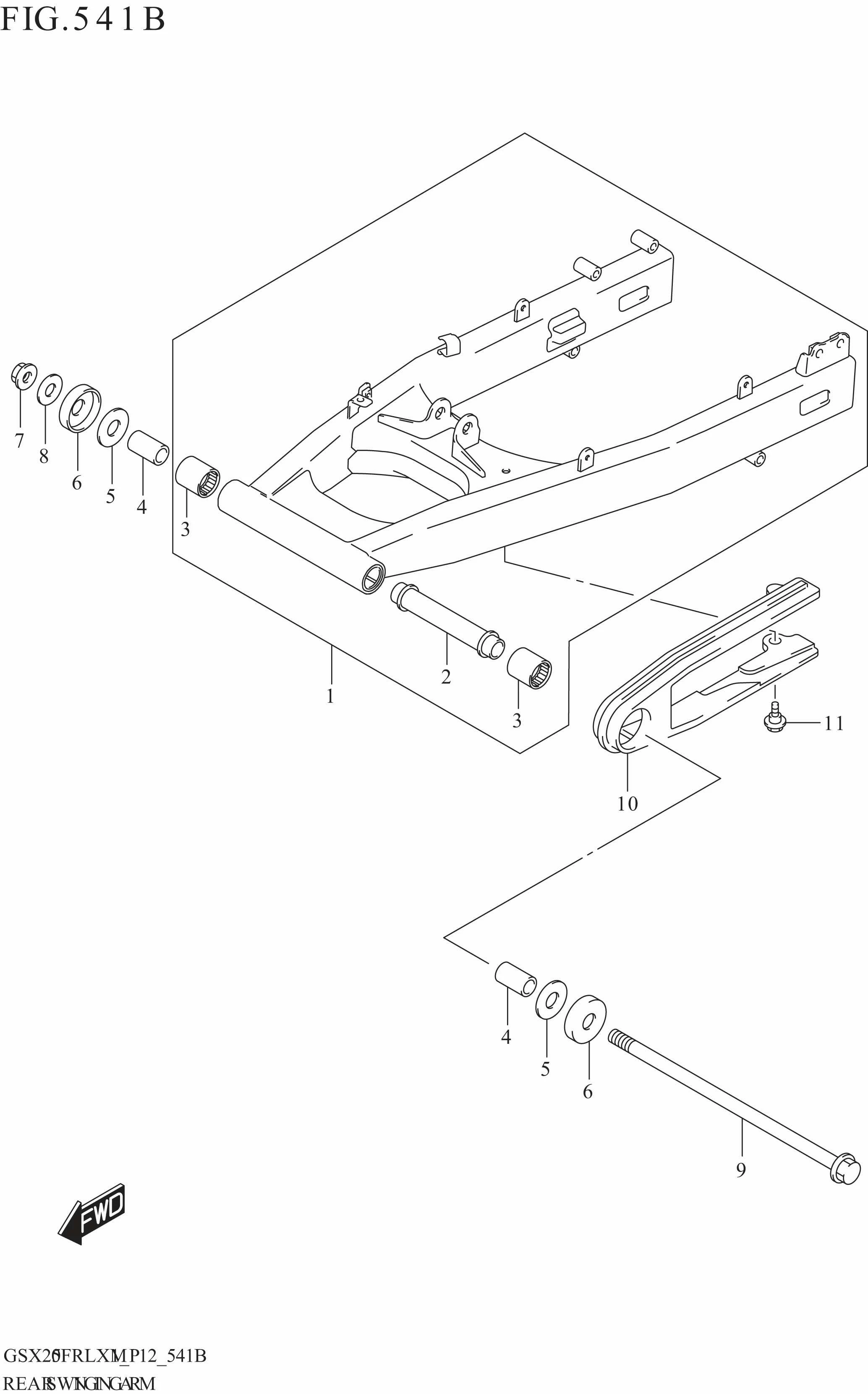

REAR SWINGINGARM

REAR SWINGINGARM
No No. Part Description Qty Price Per Pcs Remarks
1 61000-41K10-000 SWINGINGARM ASSY,REAR 1 Rp1.242.500
2 61280-41K00-000 .SPACER,RR SWGARM PIVOT 1 Rp113.500
3 09263-22077-000 .BEARING (22X29X30) 2 Rp53.000
4 61251-41K00-000 SPACER,RR SWGARM PIVOT BEARING 2 Rp39.000
5 09160-14079-000 WASHER (14X34X1) 2 Rp25.000
6 61262-41K00-000 COVER,RR SWGARM PIVOT DUST 2 Rp21.500
7 08319-2114A-000 NUT 1 Rp24.500
8 09160-14078-000 WASHER (14.5X29X2.3) 1 Rp25.000
9 61211-30H00-000 SHAFT,RR SWINGINGARM PIVOT 1 Rp80.500
10 61273-41K00-000 BUFFER,CHAIN TOUCH DEFENSE 1 Rp87.000
11 09111-06072-000 BOLT (6X17.8) 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
