GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

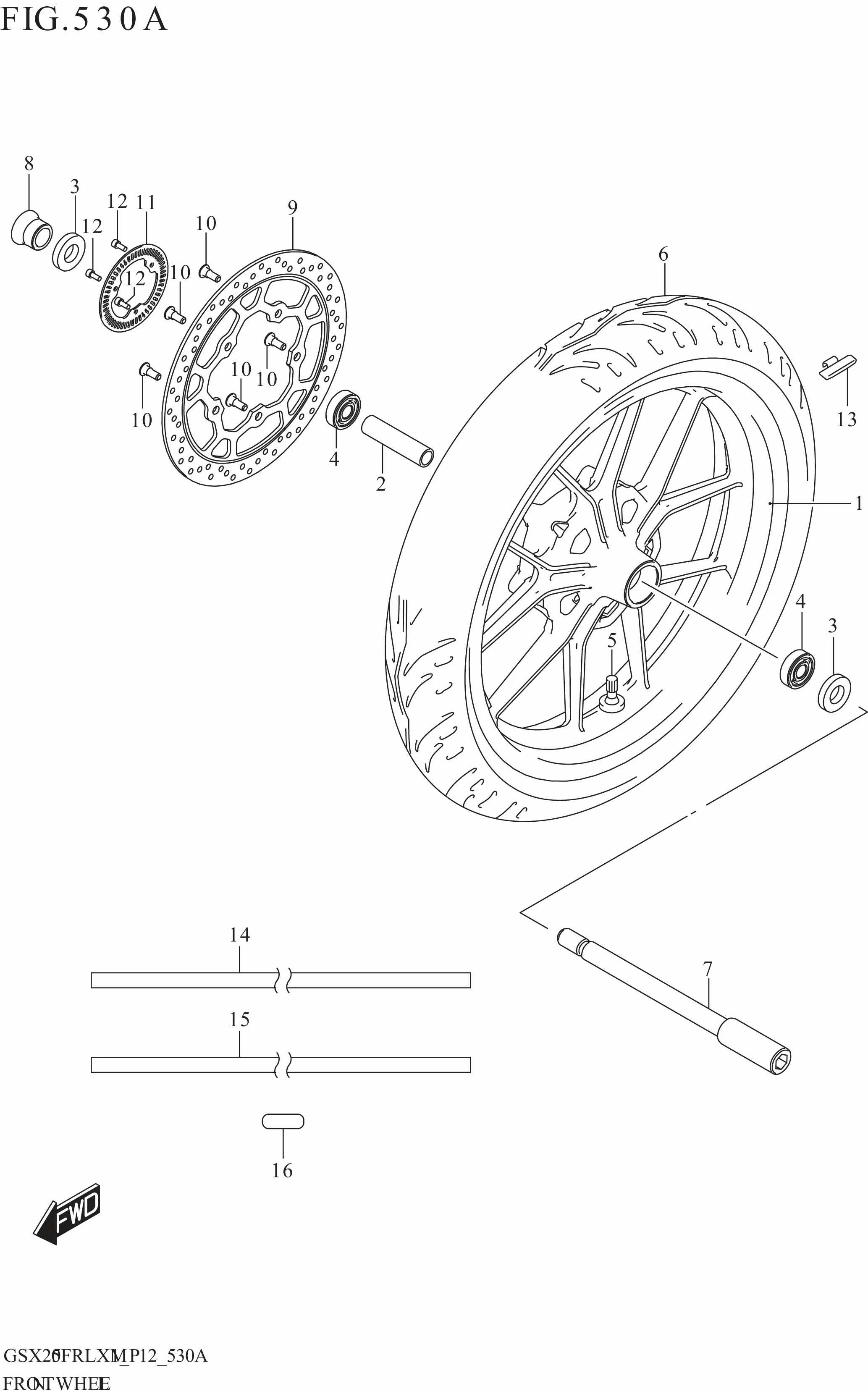

FRONT WHEEL

FRONT WHEEL
No No. Part Description Qty Price Per Pcs Remarks
1 54111-41K02-QC3
SUB: 54111-41K01-QC3		 WHEEL,FR(17M/CXMT3.00,BLACK) 1 Rp2.720.000
2 54731-41K00-000 SPACER,FRONT HUB BEARING 1 Rp29.500
3 54841-48H10-000 SEAL,WHEEL DUST 2 Rp28.000
4 08123-6302B-000 BEARING 2 Rp71.000
5 43130-24A70-000 VALVE ASSY,WHEEL RIM (TR412) 1 Rp14.500
6 55110-41K00-000 TIRE,FRONT (110/70-17M/C54S) 1 Rp1.729.500
7 54711-41K00-000 AXLE,FRONT 1 Rp100.500
8 54751-41K00-000 SPACER,FRONT AXLE RH 1 Rp111.000
9 59211-41K00-000 DISC,FRONT BRAKE 1 Rp819.500
10 59218-34J20-000 BOLT,FRONT BRAKE DISC 5 Rp21.500
11 54162-41K00-000 RING,SPEED SENSOR FRONT(50T) 1 Rp49.500
12 07130-0512A-000 BOLT 3 Rp4.000
13-1 55411-41K00-000 BALANCER,WHEEL NO.1 0 Rp10.000
13-2 55412-41K00-000 BALANCER,WHEEL NO.2 0 Rp14.500
13-3 55413-41K00-000 BALANCER,WHEEL NO.3 0 Rp19.500
14-1 68251-42K00-G7Z TAPE,WHEEL RH (YELLOW,BLACK) 1 Rp29.500
14-2 68251-42K00-B7P TAPE,WHEEL,R 1 Rp19.000
15-1 68252-42K00-G7Z TAPE,WHEEL LH (YELLOW,BLACK) 1 Rp29.500
15-2 68252-42K00-B7P TAPE,WHEEL,L 1 Rp19.000
16 68252-34J00-000 TAPE,WHEEL NO.2 2 Rp7.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
