GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

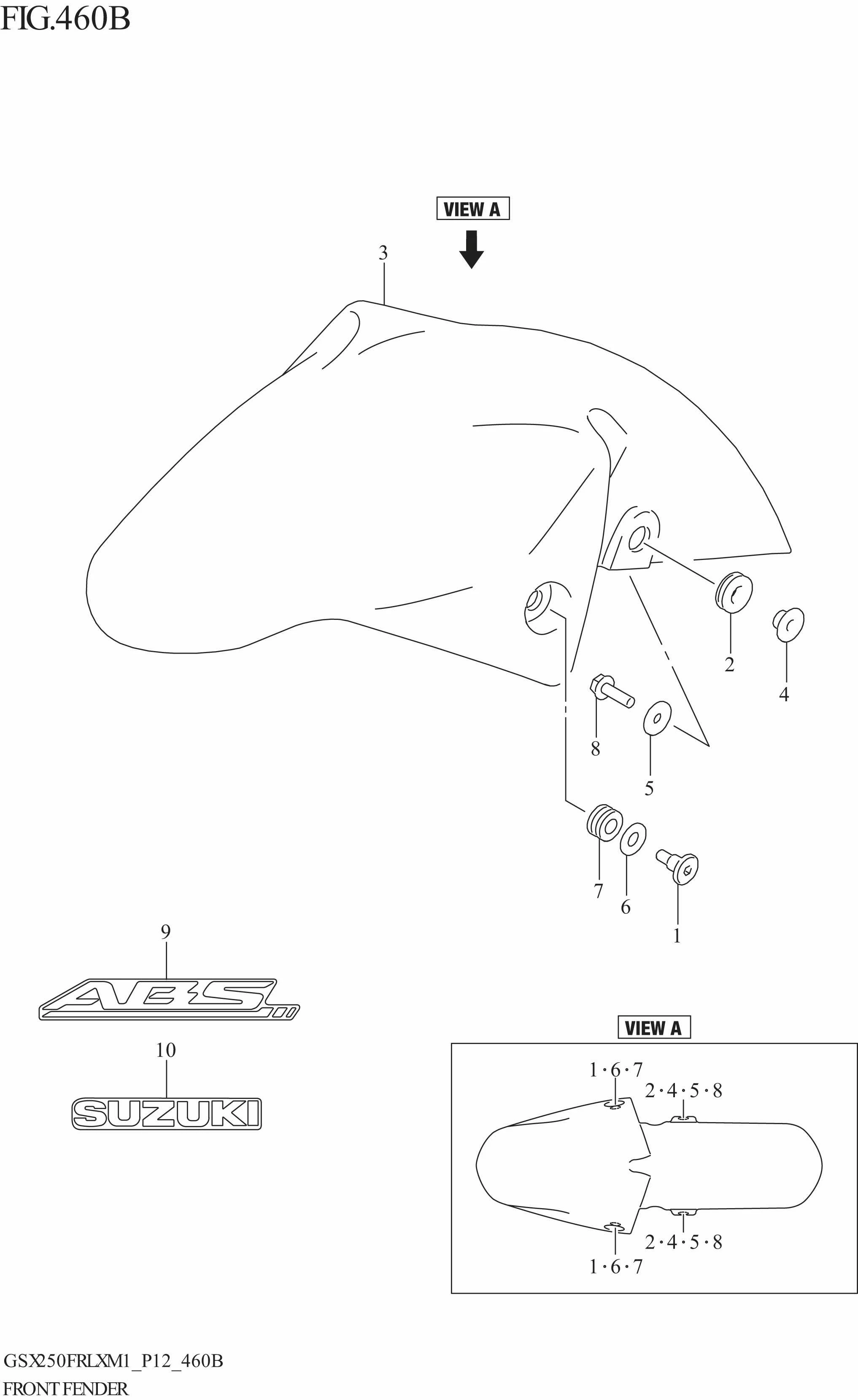

FRONT FENDER (GSX250FRLX)

FRONT FENDER (GSX250FRLX)
No No. Part Description Qty Price Per Pcs Remarks
1 47123-41K00-000 BOLT (6X20) 2 Rp11.500
2 47161-23J00-000 CUSHION,FRAME COVER UPPER 2 Rp4.000
3 53111-41K00-YD8 FENDER,FRONT (SILVER) 1 Rp334.000
4 53275-34J00-000 SPACER,FRONT FENDER 2 Rp5.500
5 09160-06027-000
SUB: 09160-06060-000		 WASHER (6.5X20X1.2) 2 Rp6.500
6 09160-09015-000 WASHER (9X19X1.0) 2 Rp16.500
7 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
8 01550-0620A-000 BOLT 2 Rp3.500
9 68155-34J00-J7A EMBLEM,ABS (GRAYBLACK) 1 Rp19.500
10 68171-34J10-019 EMBLEM,SUZUKI" (BLACK)" 1 Rp9.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
