GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

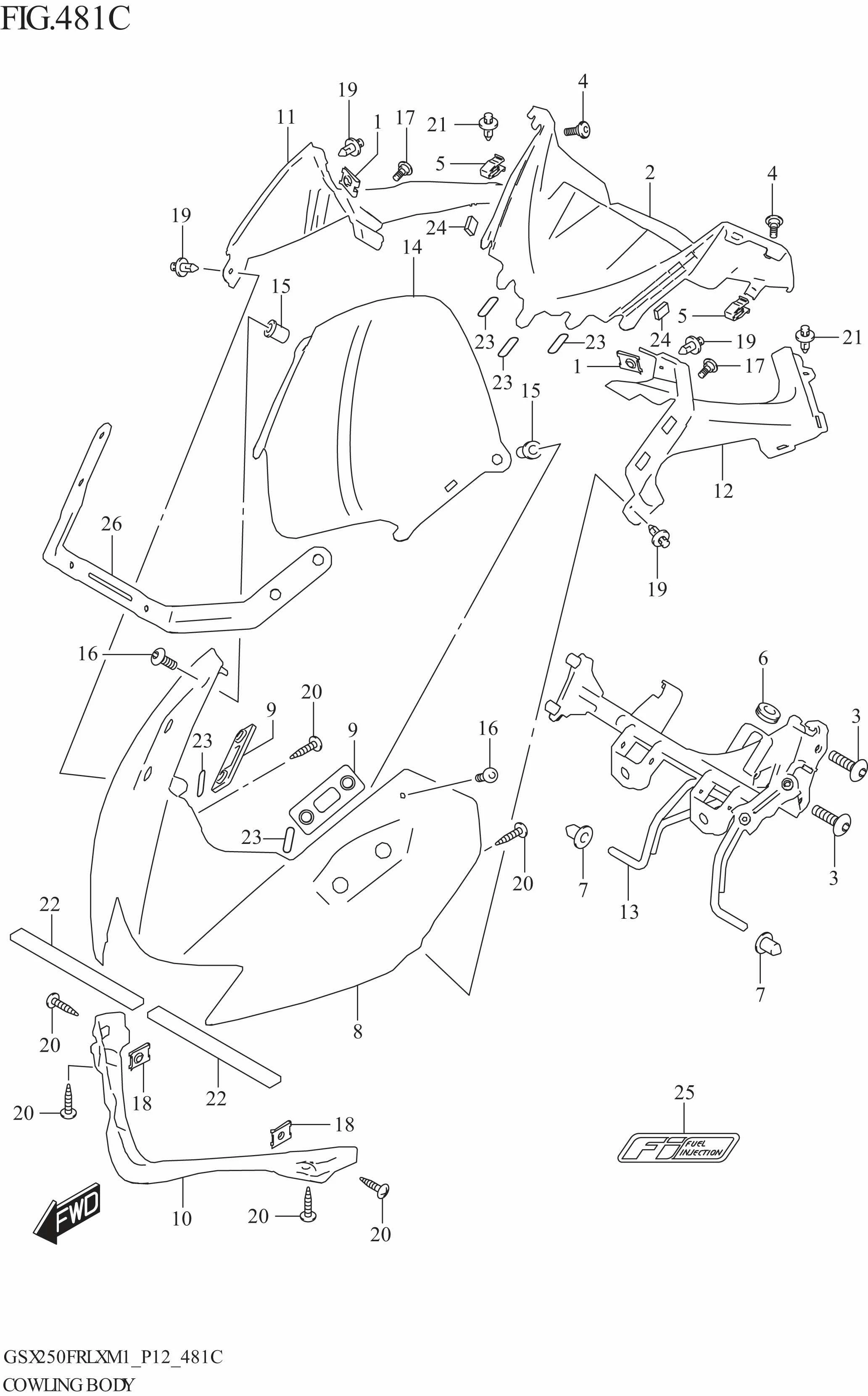

COWLING BODY (GSX250FRL)

COWLING BODY (GSX250FRL)
No No. Part Description Qty Price Per Pcs Remarks
1 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
2 94421-41K00-YKV PANEL,METER (BLACK) 1 Rp234.000
3 94621-34J10-000 BOLT,BRACE COWLING 2 Rp14.000
4 09139-05096-000 BOLT (5X13) 2 Rp24.000
5 09409-08L09-000 CLIP 2 Rp8.500
6 47161-44J00-000 CUSHION (6X18X6) 1 Rp6.500
7 51831-30H10-000 CUSHION,COWLING BRACE 2 Rp27.000
8 94411-41K00-YKV COWLING,BODY (BLACK) 1 Rp745.500
9 94412-34J00-000 CUSHION,MIRROR BRKT 2 Rp24.500
10 94412-41K00-000 COWLING,BODY LOWER 1 Rp30.500
11 94422-41K00-000 PANEL,SIDE RH 1 Rp41.500
12 94423-41K00-000 PANEL,SIDE LH 1 Rp41.500
13 94510-41K00-000 BRACE,COWLING 1 Rp415.500
14 94611-41K00-000 WINDSCREEN 1 Rp164.500
15 94618-34J01-000 NUT,WINDSCREEN 2 Rp10.000
16 94621-41K00-000 SCREW,WINDSCREEN 2 Rp13.500
17 09139-05091-000 SCREW (5X13) 2 Rp68.000
18 09148-05060-000 NUT 2 Rp29.500
19 09409-06L07-000 CLIP 4 Rp10.000
20 03541-0516A-000 SCREW 6 Rp3.500
21 09409-06L07-000 CLIP 2 Rp10.000
22 63191-34J00-000 CUSHION,REAR FENDER 2 Rp5.500
23 68252-34J00-000 TAPE,WHEEL NO.2 5 Rp7.000
24 94424-41K00-000 CUSHION,METER PANEL 2 Rp5.000
25 68281-02L00-000 EMBLEM,FI 1 Rp7.000
26 94591-41K00-000 PLATE,FRONT LICENSE 1 Rp68.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
