GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

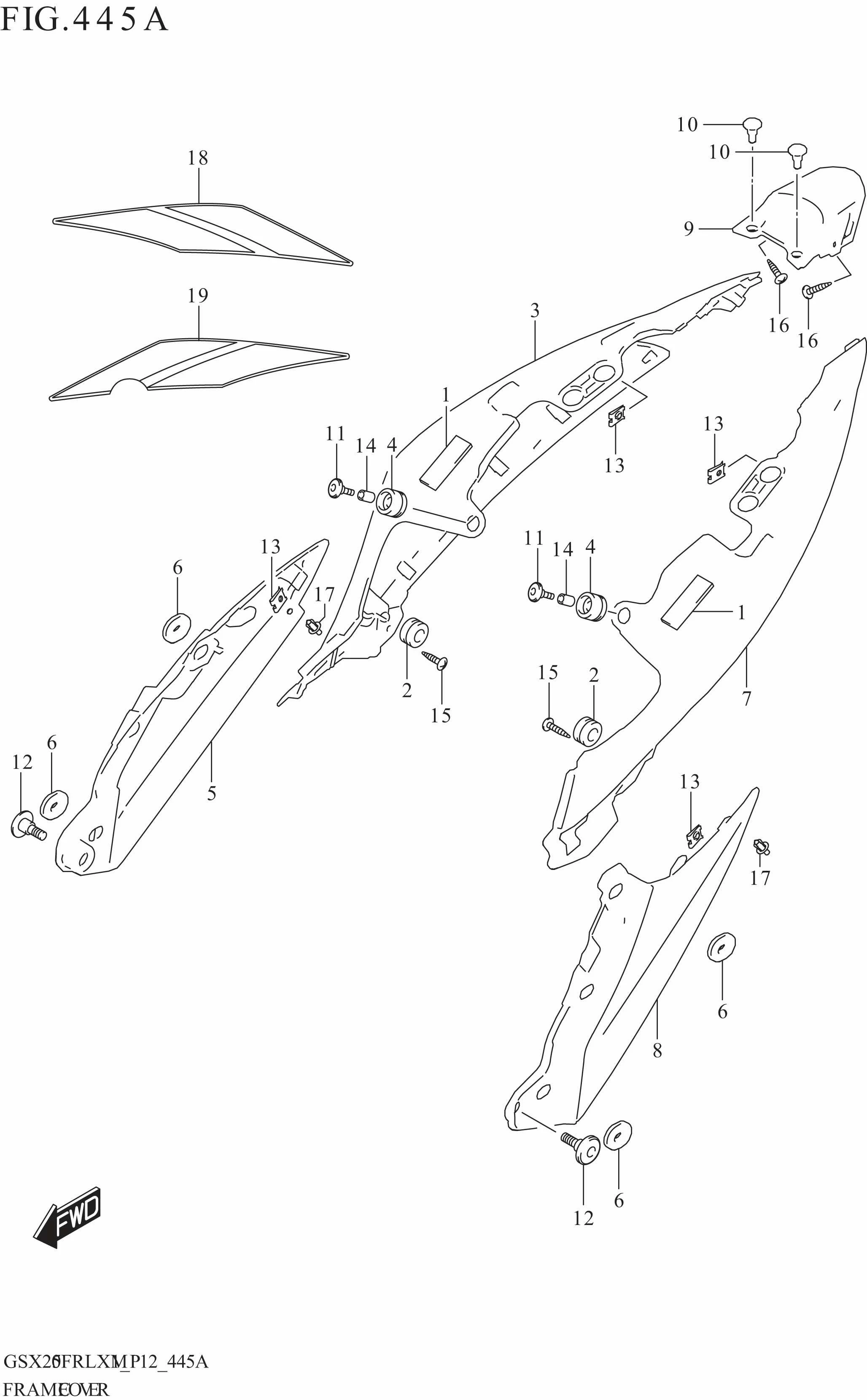

FRAME COVER (GSX250FRLZ)

FRAME COVER (GSX250FRLZ)
No No. Part Description Qty Price Per Pcs Remarks
1 47112-41K00-000 CUSHION,FRAME COVER 2 Rp7.000
2 47162-30H00-000 CUSHION,FRAME COVER (8X26X7) 2 Rp10.000
3 47311-41K00-YSF COVER,FRAME RR UPR,R (BLUE) 1 Rp288.500
4 47312-37H10-000 CUSHION,FRAME COVER REAR 2 Rp24.000
5 47312-41K00-000 COVER,FRAME REAR LOWER RH 1 Rp36.500
6 47315-41K00-000 CUSHION (8-14X26-32X7) 4 Rp6.500
7 47321-41K00-YSF COVER,FRAME RR UPR,L (BLUE) 1 Rp254.000
8 47322-41K00-000 COVER,FRAME REAR LOWER LH 1 Rp36.500
9 47411-41K00-000 COVER,FRAME CENTER 1 Rp100.000
10 09139-05073-000 BOLT (5X16) 2 Rp68.000
11 09139-06139-000 SCREW (6X16) 2 Rp24.500
12 09139-06219-000 BOLT (6X13) 2 Rp24.000
13 09148-05060-000 NUT 4 Rp29.500
14 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
15 03541-0512A-000 SCREW 2 Rp3.500
16 03541-0516A-000 SCREW 2 Rp3.500
17 09409-06L07-000 CLIP 2 Rp10.000
18 68133-42K00-A3F TAPE,FRAME COVER RR UPR RH (WHITE,BLUE,YELLOW) 1 Rp41.500
19 68143-42K00-A3F TAPE,FRAME COVER RR UPR LH (WHITE,BLUE,YELLOW) 1 Rp41.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
