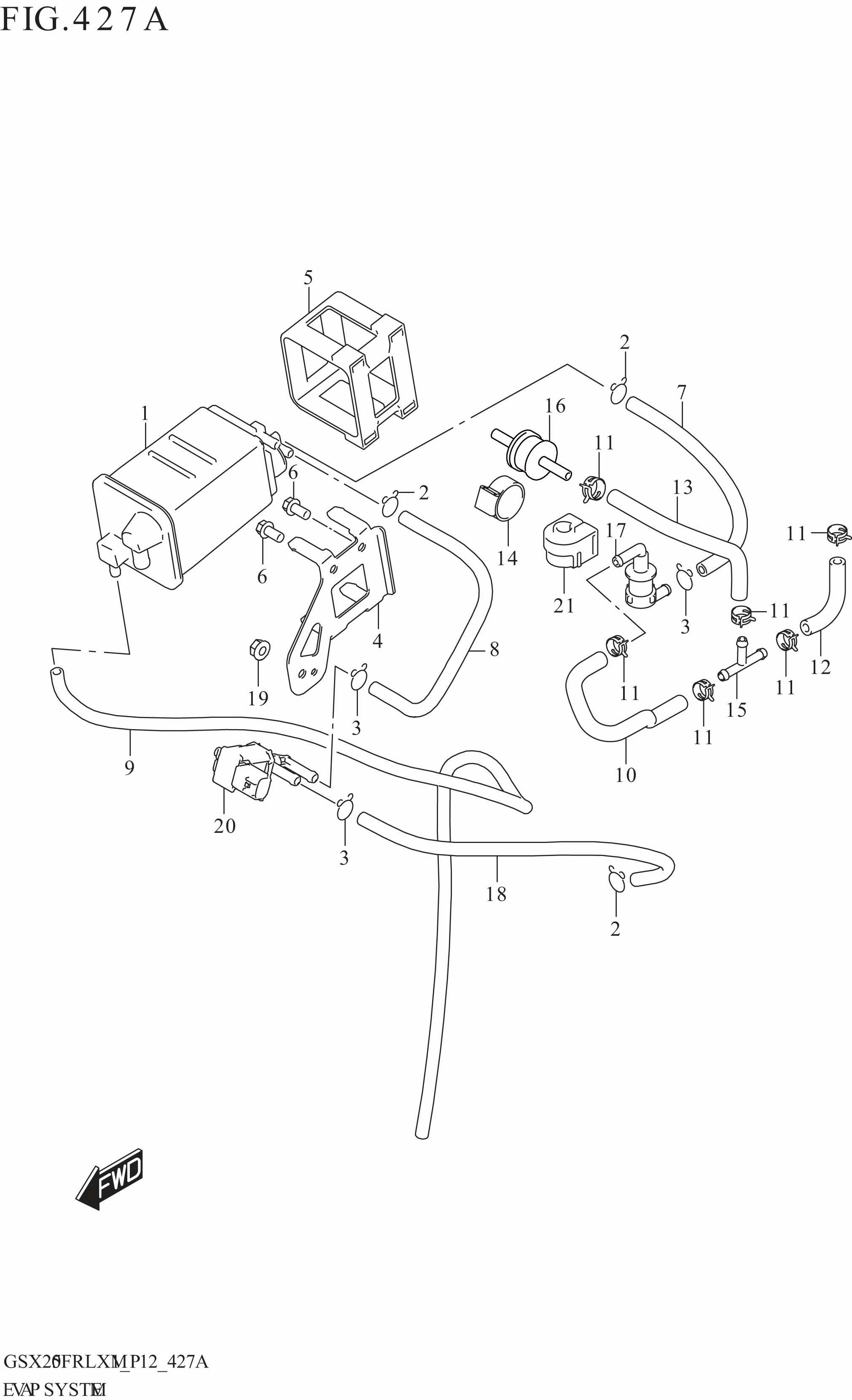

EVAP SYSTEM

EVAP SYSTEM
No No. Part Description Qty Price Per Pcs Remarks
1 18560-27KA0-000 CANISTER ASSY,EVAP 1 Rp203.500
2 09401-08004-000 CLIP,EVAP HOSE 3 Rp5.000
3 09401-09406-000 CLIP 3 Rp5.500
4 18571-41K00-000 BRACKET,CANISTER 1 Rp30.500
5 18572-29J00-000 CUSHION,CANISTER 1 Rp43.500
6 01547-0610A-000
SUB: 01547-0612A-000		 BOLT 2 Rp3.000
7 18561-41K00-000 HOSE,CANISTER SURGE 1 Rp16.500
8 18562-41K00-000 HOSE,CANISTER PURGE NO.1 1 Rp22.000
9 18568-41K00-000 HOSE,CANISTER DRAIN 1 Rp29.000
10 44436-41K00-000 HOSE,JOINT & BRTHR VALVE 1 Rp15.500
11 09401-09L03-000 CLIP (ID:9.4,H:8) 6 Rp5.000
12 44434-41K00-000 HOSE,FUEL TANK & JOINT 1 Rp11.500
13 44435-41K00-000 HOSE,JOINT & CHECK VALVE 1 Rp11.500
14 44895-34JA0-000 CUSHION,CHECK VALVE 1 Rp11.500
15 09367-06002-000 JOINT,3 WAY 1 Rp21.000
16 44240-10G00-000 VALVE ASSY,CHECK 1 Rp345.500
17 44240-13H00-000 VALVE,FUEL TANK BRTHR 1 Rp85.500
18 18563-41K00-000 HOSE,CANISTER PURGE NO.2 1 Rp29.000
19 08316-1006A-000 NUT 1 Rp2.000
20 18117-73M00-000 VALVE,CANISTER PURGE 1 Rp370.000
21 44894-34J00-000 CUSHION,FUEL TANK BRTHR VALVE 1 Rp42.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
