GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

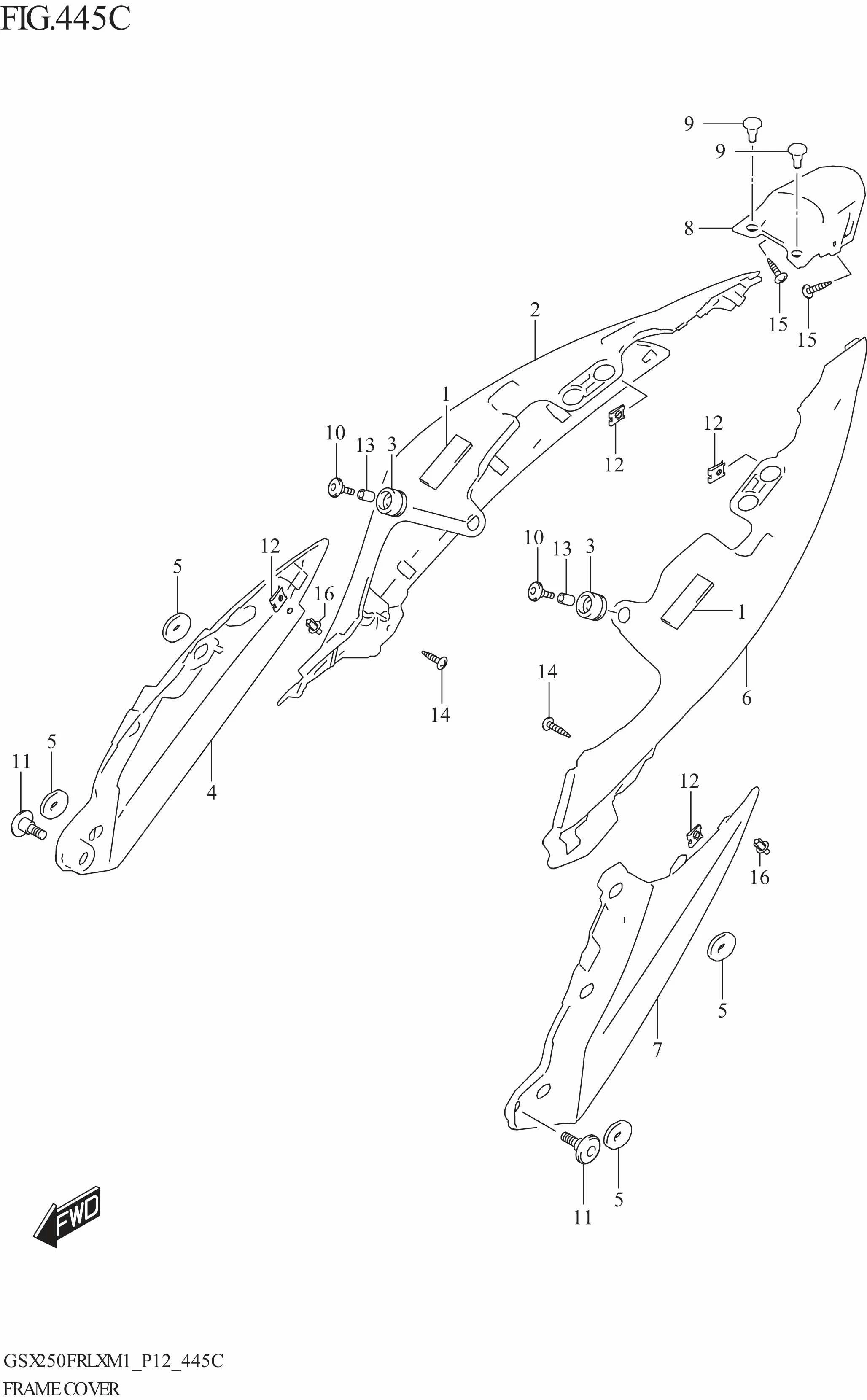

FRAME COVER GSX250FRL)

FRAME COVER GSX250FRL)
No No. Part Description Qty Price Per Pcs Remarks
1 47112-41K00-000 CUSHION,FRAME COVER 2 Rp7.000
2 47311-41K00-YKV COVER,FRAME RR UPR RH (BLACK) 1 Rp265.000
3 47312-37H10-000 CUSHION (10X24X13) 2 Rp24.000
4 47312-41K00-000 COVER,FRAME RR LWR RH 1 Rp36.500
5 47315-41K00-000 CUSHION (8-14X26-32X7) 4 Rp6.500
6 47321-41K00-YKV COVER,FRAME RR UPR LH (BLACK) 1 Rp265.000
7 47322-41K00-000 COVER,FRAME RR LWR LH 1 Rp36.500
8 47411-41K00-000 COVER,FRAME CENTER 1 Rp100.000
9 09139-05073-000 BOLT (5X16) 2 Rp68.000
10 09139-06139-000 SCREW (6X16) 2 Rp24.500
11 09139-06219-000 BOLT (6X13) 2 Rp24.000
12 09148-05060-000 NUT 4 Rp29.500
13 09180-06283-000 SPACER (6.5X10X7) 2 Rp13.000
14 03541-0512A-000 SCREW 2 Rp3.500
15 03541-0516A-000 SCREW 2 Rp3.500
16 09409-06L07-000 CLIP 2 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
