GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

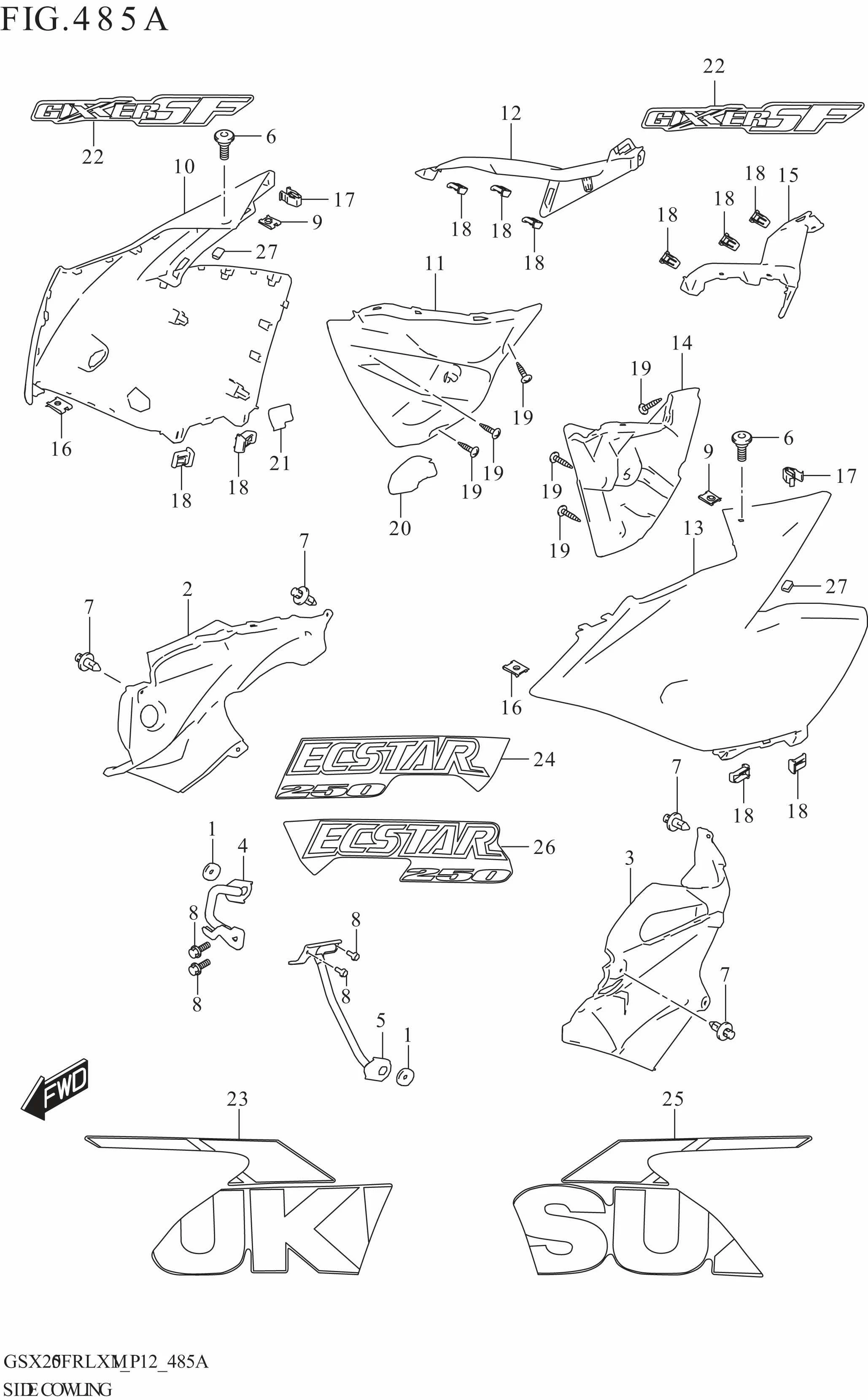

SIDE COWLING (GSX250FRLZ)

SIDE COWLING (GSX250FRLZ)
No No. Part Description Qty Price Per Pcs Remarks
1 47315-41K00-000 CUSHION (8-14X26-32X7) 2 Rp6.500
2 94461-41K00-000 COWLING,SIDE INNER RH 1 Rp130.000
3 94462-41K00-000 COWLING,SIDE INNER LH 1 Rp130.000
4 94530-41K00-000 BRACKET,SIDE COWL RH 1 Rp72.500
5 94540-41K00-000 BRACKET,SIDE COWL LH 1 Rp72.500
6 09139-05096-000 BOLT (5X13) 2 Rp24.000
7 09409-06L07-000 CLIP 4 Rp10.000
8 01550-0616A-000 BOLT 4 Rp3.500
9 47349-34J01-000 NUT,BODY COWL UPPER (M5) 2 Rp5.500
10 94431-41K02-YSF
SUB: 94431-41K00-YSF		 COWLING,SIDE RH (BLUE) 1 Rp497.000
11 94432-41K00-000 COVER,SIDE COWL INNER RH 1 Rp83.500
12 94433-41K00-000 COVER,SIDE COWL RH 1 Rp29.500
13 94441-41K01-YSF
SUB: 94441-41K00-YSF		 COWLING,SIDE LH (BLUE) 1 Rp497.000
14 94442-41K00-000 COVER,SIDE COWL INNER LH 1 Rp83.500
15 94443-41K00-000 COVER,SIDE COWL LH 1 Rp29.500
16 09148-05060-000 NUT 2 Rp29.500
17 09409-08L09-000 CLIP 2 Rp8.500
18 09409-08009-000 CLIP,SIDE COWL 10 Rp8.000
19 03541-0516A-000 SCREW 6 Rp3.500
20 94434-41K00-000 SHIELD,SIDE COVER HEAT 1 Rp42.000
21 94435-41K00-000 SHIELD,SIDE COWL HEAT 1 Rp19.000
22 68282-42K00-BYU EMBLEM, GIXXERSF (SILVER,GRAY,BLUE) 2 Rp81.000
23 68283-42K00-A3F TAPE,SIDE COWLING NO.1,R (WHITE,BLUE,YELLOW) 1 Rp168.000
24 68284-41K00-BSB TAPE,SIDE COWLING NO.2,R (WHITE,BLUE) 1 Rp84.500
25 68293-42K00-A3F TAPE,SIDE COWLING NO.1,L (WHITE,BLUE,YELLOW) 1 Rp168.000
26 68294-41K00-BSB TAPE,SIDE COWLING NO.2,L (WHITE,BLUE) 1 Rp84.500
27 94642-10GA0-000 CUSHION,WINDSCREEN COVER (15X15X2) 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
