GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

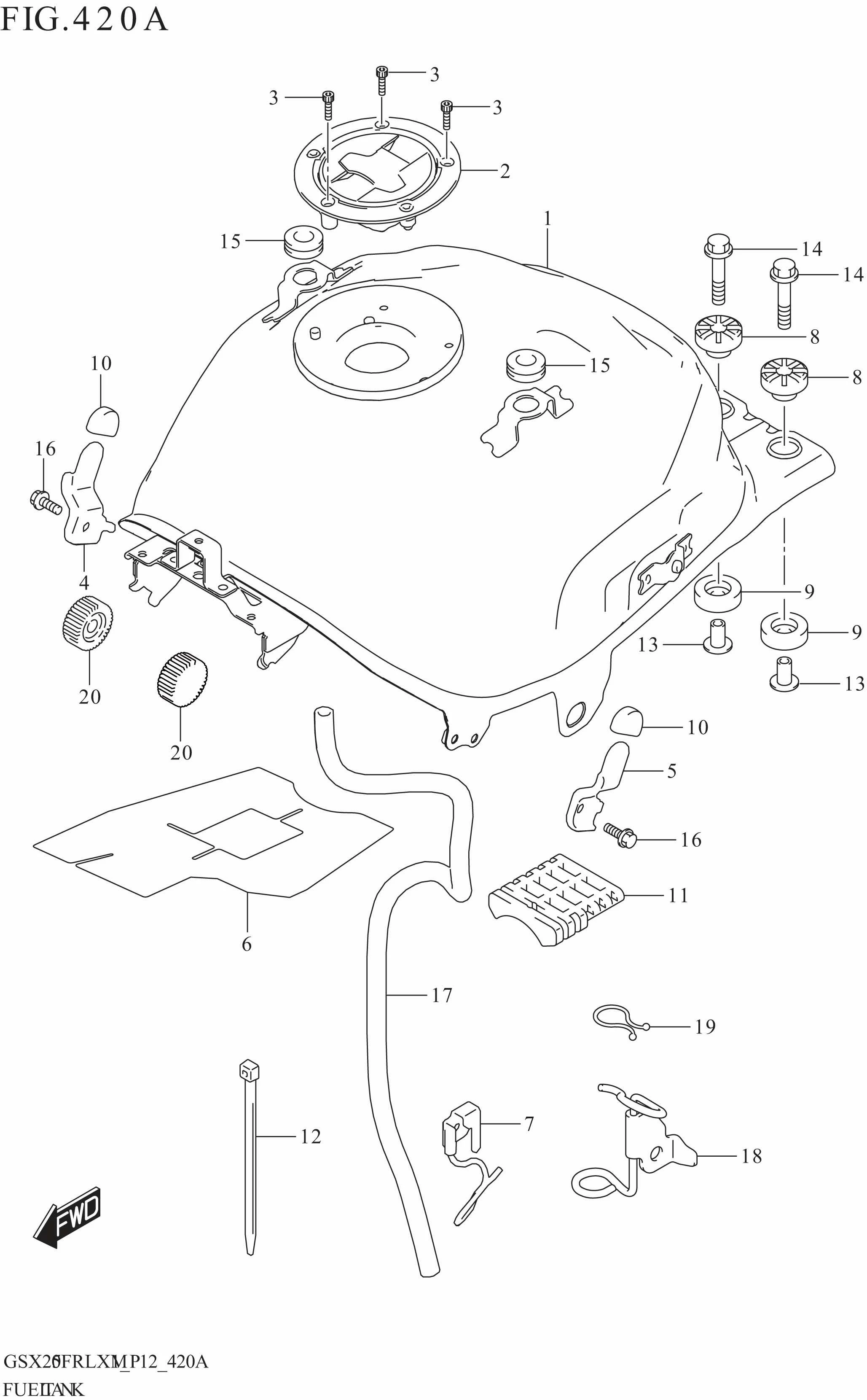

FUEL TANK

FUEL TANK
No No. Part Description Qty Price Per Pcs Remarks
1 44100-41K00-000 TANK ASSY,FUEL 1 Rp2.172.000
2 44200-41KA0-000 CAP ASSY,FUEL TANK FILLER 1 Rp458.000
3 09106-05017-000 BOLT (5X20) 3 Rp18.000
4 44176-41K00-000 BRACKET,FUEL TANK COVER RH 1 Rp16.000
5 44177-41K00-000 BRACKET,FUEL TANK COVER LH 1 Rp16.000
6 44271-41K00-000 SHIELD,FUEL TANK HEAT 1 Rp230.500
7 44480-41K10-000 GUIDE,DRAIN HOSE NO.2 1 Rp34.500
8 44541-44J00-000 CUSHION,FUEL TANK REAR UPPER 2 Rp10.500
9 44542-44J00-000 CUSHION,FUEL TANK REAR LOWER 2 Rp10.000
10 56314-27K00-000 CUSHION,HANDLE COVER 2 Rp10.000
11 44541-34J20-000 CUSHION,FUEL TANK CENTER 1 Rp42.000
12 44549-34J00-000 CLAMP,FUEL TANK CUSHION CENTER 1 Rp9.000
13 44544-27K00-000 SPACER,FUEL TANK REAR CUSHION 2 Rp14.000
14 01550-0635A-000 BOLT 2 Rp3.000
15 47162-30H00-000 CUSHION,FRAME COVER (8X26X7) 2 Rp10.000
16 01550-0612A-000 BOLT 2 Rp3.500
17 44423-41K00-000 HOSE,FUEL TANK DRAIN 1 Rp28.500
18 44480-41K00-000 GUIDE,DRAIN HOSE 1 Rp20.000
19 09408-00343-000 CLAMP,DRAIN HOSE 1 Rp8.500
20 44512-44J00-000 CUSHION,FUEL TANK FRONT 2 Rp21.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
