GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

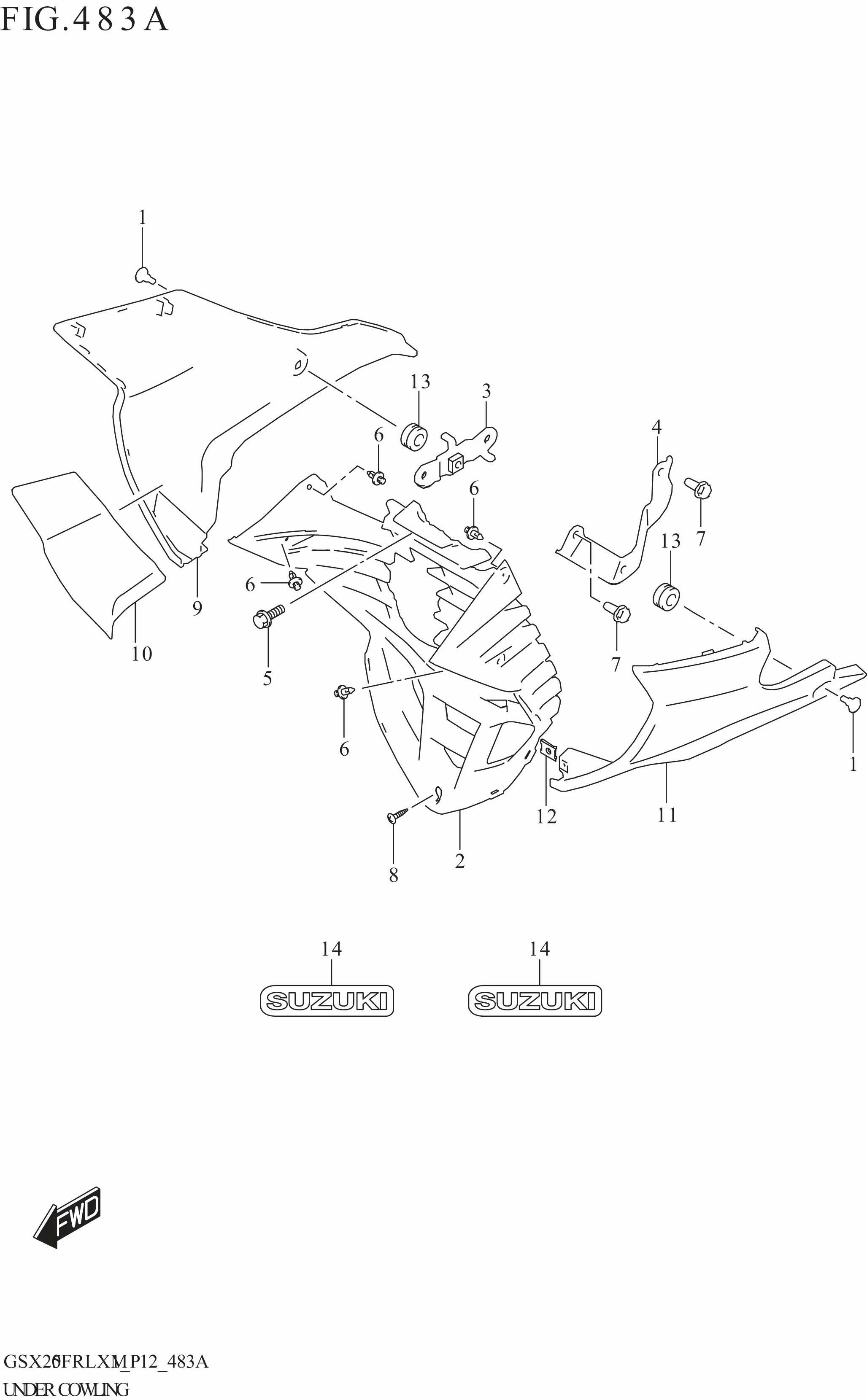

UNDER COWLING

UNDER COWLING
No No. Part Description Qty Price Per Pcs Remarks
1 47123-41K00-000 BOLT (6X20) 2 Rp11.500
2 94491-41K00-000 COWLING,UNDER CTR 1 Rp427.000
3 94570-41K00-000 BRACKET,UNDER COWL RH 1 Rp16.500
4 94580-41K00-000 BRACKET,UNDER COWL LH 1 Rp47.000
5 09111-06088-000 BOLT (6X13.5) 1 Rp3.500
6 09409-06L07-000 CLIP 4 Rp10.000
7 01550-0616A-000 BOLT 2 Rp3.500
8 03541-0516A-000 SCREW 1 Rp3.500
9-1 94471-41K00-YSF COWLING,UNDER RH (BLUE) 1 Rp524.500
9-2 94471-41K00-YKV COWLING,UNDER RH (BLACK) 1 Rp514.500
10 94472-41K00-000 SHIELD,UNDER COWL HEAT 1 Rp172.000
11-1 94481-41K00-YSF COWLING,UNDER LH (BLUE) 1 Rp524.500
11-2 94481-41K00-YKV COWLING,UNDER LH (BLACK) 1 Rp517.000
12 09148-05060-000 NUT 1 Rp29.500
13 09320-09016-000 CUSHION (9X18X9.5) 2 Rp4.000
14-1 68181-41K00-AGQ EMBLEM, SUZUKI (BLUE,WHITE) 2 Rp25.500
14-2 68181-41K00-AHW EMBLEM, SUZUKI (GRAY,BLACK) 2 Rp13.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
