GIXXER SF 250

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRAMEHOLDERSTANDPILLION RIDER HANDLEFOOTRESTFUEL TANKFUEL TANK COVER (GSX250FRL)FUEL TANK COVER (GSX250FRLZ)FUEL TANK COVER (GSX250FRLX)EVAP SYSTEMFRAME COVER (GSX250FRLZ)FRAME COVER (GSX250FRLX)HANDLE LEVERSTEERING STEMREAR FENDERFRAME COVER GSX250FRL)FRONT WHEELCOWLING BODY (GSX250FRLX)FRAME LOWER COVER (GSX250FRLZ)HYDRAULIC UNITFRONT CALIPERCOWLING BODY (GSX250FRL)FRAME LOWER COVER (GSX250FRLX)FRONT BRAKE HOSEFRONT MASTER CYLINDERREAR SWINGINGARMUNDER COWLINGREAR SHOCK ABSORBERFRAME LOWER COVER (GSX250FRL)REAR WHEELSIDE COWLING (GSX250FRLZ)REAR CALIPERREAR MASTER CYLINDERFRONT FENDER (GSX250FRLZ)FRONT FENDER (GSX250FRLX)SIDE COWLING (GSX250FRLX)SIDE COWLING (GSX250FRL)SEATFRONT FORK DAMPERFRONT FENDER (GSX250FRL)HANDLEBARLABEL

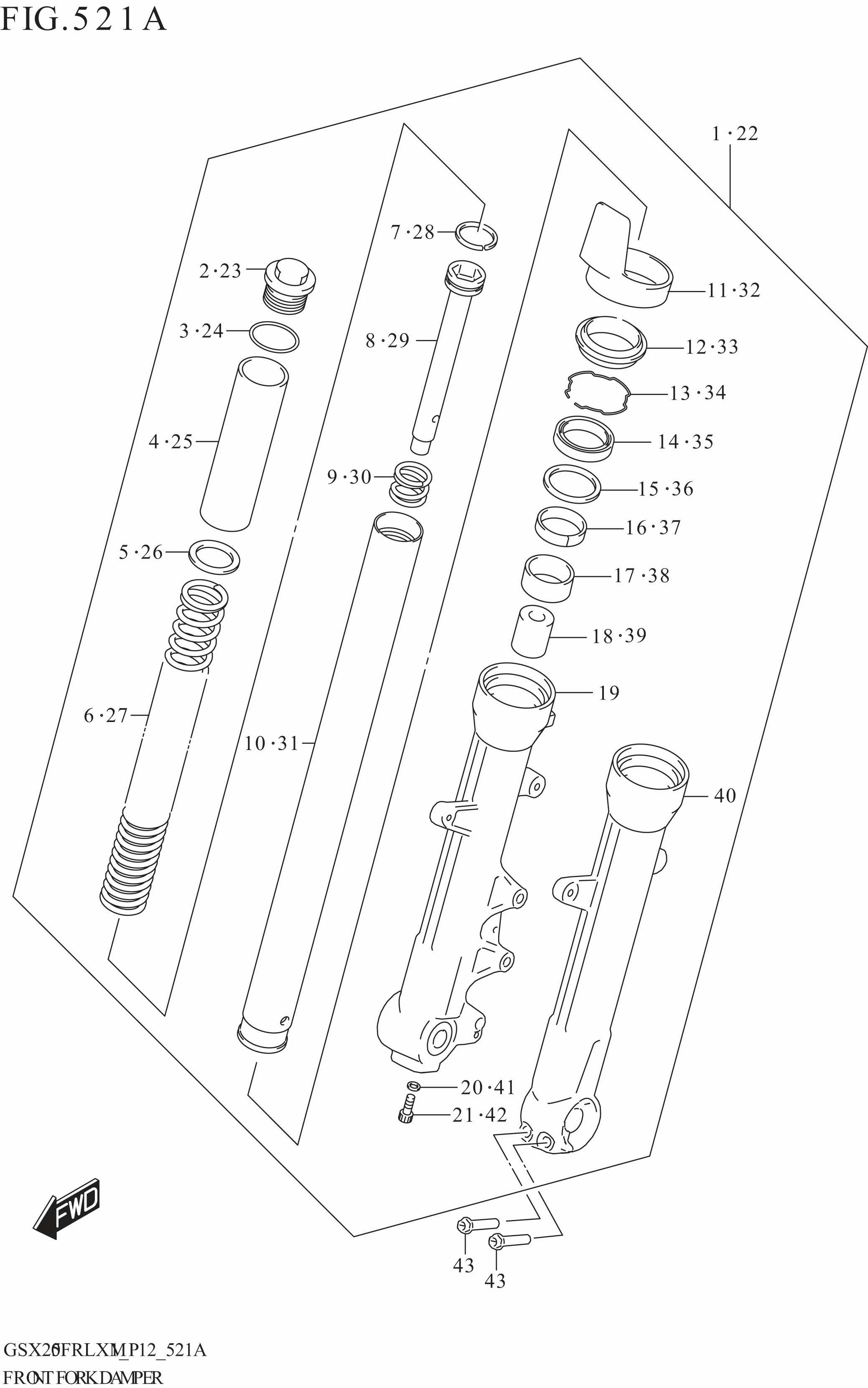

FRONT FORK DAMPER

FRONT FORK DAMPER
No No. Part Description Qty Price Per Pcs Remarks
1 51103-41K10-291 DAMPER ASSY,FR FORK RH (BLACK) 1 Rp1.580.500
2 51113-27K00-000 .BOLT 1 Rp107.000
3 51181-34J00-000 .O-RING 1 Rp16.500
4 51176-41K10-000 .SPACER,SPRING UPPER 1 Rp36.000
5 51172-34J00-000 .WASHER 1 Rp10.000
6 51171-41K10-000 .SPRING 1 Rp125.000
7 51196-34J00-000 .RING,PISTON 1 Rp9.000
8 51146-41K10-000 .CYLINDER 1 Rp98.500
9 51177-34J00-000 .SPRING,REBOUND 1 Rp18.000
10 51110-27K00-000 .TUBE,INNER 1 Rp600.000
11 51201-41K00-000 .COVER,PROTECTION 1 Rp15.000
12 51173-34J00-000 .SEAL, DUST 1 Rp77.500
13 51156-34J00-000 .RING,SNAP 1 Rp10.000
14 51153-34J00-000 .OIL SEAL 1 Rp118.500
15 51158-34J00-000 .WASHER 1 Rp13.500
16 51167-34J00-000 .METAL,SLIDE 1 Rp75.500
17 51121-34J00-000 .BUSH,SLIDE 1 Rp60.500
18 51195-34J00-000 .PIECE,OIL LOCK 1 Rp61.500
19 51131-41K00-291 .TUBE,OUTER RH (BLACK) 1 Rp989.500
20 51148-34J00-000 .GASKET LOWER 1 Rp9.000
21 51147-41K00-000 .BOLT 1 Rp15.000
22 51104-41K10-291 DAMPER ASSY,FR FORK LH (BLACK) 1 Rp1.580.500
23 51113-27K00-000 .BOLT 1 Rp107.000
24 51181-34J00-000 .O-RING 1 Rp16.500
25 51176-41K10-000 .SPACER,SPRING UPPER 1 Rp36.000
26 51172-34J00-000 .WASHER 1 Rp10.000
27 51171-41K10-000 .SPRING 1 Rp125.000
28 51196-34J00-000 .RING,PISTON 1 Rp9.000
29 51146-41K10-000 .CYLINDER 1 Rp98.500
30 51177-34J00-000 .SPRING,REBOUND 1 Rp18.000
31 51110-27K00-000 .TUBE,INNER 1 Rp600.000
32 51201-41K00-000 .COVER,PROTECTION 1 Rp15.000
33 51173-34J00-000 .SEAL, DUST 1 Rp77.500
34 51156-34J00-000 .RING,SNAP 1 Rp10.000
35 51153-34J00-000 .OIL SEAL,1 1 Rp118.500
36 51158-34J00-000 .WASHER 1 Rp13.500
37 51167-34J00-000 .METAL,SLIDE 1 Rp75.500
38 51121-34J00-000 .BUSH,SLIDE 1 Rp60.500
39 51195-34J00-000 .PIECE,OIL LOCK 1 Rp61.500
40 51141-41K00-291 .TUBE,OUTER LH (BLACK) 1 Rp989.500
41 51148-34J00-000 .GASKET LOWER 1 Rp9.000
42 51147-41K00-000 .BOLT 1 Rp15.000
43 51147-34J00-000 BOLT 2 Rp31.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
